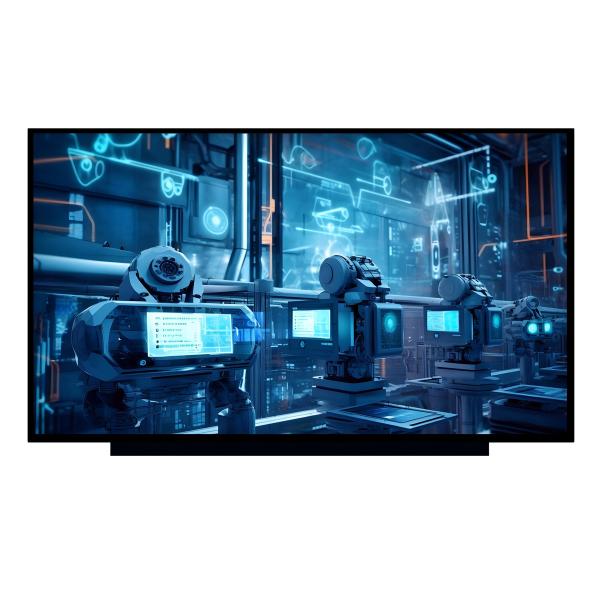

High Brightness 15.6 FHD 1000nit TFT Display Module for Industrial, Outdoor & Rugged Applications
High Brightness 15.6 FHD 1000nit TFT Display Module for Industrial, Outdoor & Rugged Applications
High Brightness 15.6 FHD 1000nit TFT Display Module for Industrial, Outdoor & Rugged Applications
High Brightness 15.6 FHD 1000nit TFT Display Module for Industrial, Outdoor & Rugged Applications
High Brightness 15.6 FHD 1000nit TFT Display Module for Industrial, Outdoor & Rugged Applications
High Brightness 15.6 FHD 1000nit TFT Display Module for Industrial, Outdoor & Rugged Applications
Specifications
Brand Name :
SAEF
Model Number :
SFTO1560BD-7246A3N
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
the lowest market price guaranteed
Payment Terms :
PayPal, T/T, Western Union, Ali-Pay, WeChat Pay
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Screen Size :
15.6-inch Diagonal
Brightness :
1000 cd/m² (Typ)
Resolution :
FHD 1920 x 1080
Viewing Angle :
85°/85°/85°/85° (CR≥10)
Operating Temp. :
-20°C to +70°C
Interface :
30-pin eDP Interface
Color Depth :
16.7M Colors (6bit + FRC)
Contrast Ratio :
800:1 (Typ)
LED lifetime :
50,000hrs lifespan
Surface Treatment :
Anti-Glare, 3H Hard Coating
Color Gamut :
72% NTSC
Compliance :
REACH & RoHS Compliant
Description

The SFTO1560BD-7246A3N is a high-performance 15.6-inch Full HD (FHD) high-brightness TFT display module designed for industrial, outdoor, and rugged environments. Key features include:
1. Ultra-Bright Display for Any Lighting Condition
1000 nit brightness: Ensures clear visibility under direct sunlight or extreme outdoor lighting.
FHD 1920x1080 resolution: Delivers sharp, accurate RGB vertical stripe pixel alignment with 16.7M color depth (6bit + FRC) for precision applications.
2. Industrial-Grade Durability
Wide operating temperature: Functions reliably from -20°C to +70°C, ideal for harsh environments like factories, vehicles, or outdoor equipment.
Anti-glare & scratch-resistant surface: 3H hard coating reduces glare and resists scratches, enhancing outdoor readability.
Rigorous testing: Passes 240-hour high-temperature/humidity (60°C, 90%RH) and thermal shock (100 cycles between -30°C and +80°C) tests for long-term reliability.
3. Flexible Interface & Dimming Control
30-pin eDP interface: Simplifies integration with embedded systems.
PWM backlight dimming: Adjustable frequency (190Hz–2kHz) for optimal brightness control in varying light conditions.
LED driver optimization: Built-in converter with up to 31V output voltage and multi-channel current balancing extends backlight lifespan.
4. Versatile Applications
Industrial automation: PLCs, control panels, medical monitors.
Outdoor digital signage: Bus stops, retail POS displays, kiosks.
Automotive systems: GPS navigation, vehicle infotainment, surveillance screens.
Specialized environments: Military, aviation, port equipment.
5. Compliance & Efficiency
RoHS compliant: Lead-free materials meet EU environmental standards.
Low power consumption: Typical power draw of 0.891W balances energy efficiency and performance.

Request a Sample: Contact our EU/US support team at sales2@saef.com.cn for standard CTP solutions (suitable for outdoor use, industrial grade) and customization options.

Specifications

Item Specification Unit
Screen Size 15.6” diagonal
Driver Element a-si TFT active matrix -
Pixel Number 1920 x R.G.B. x 1080 pixel
Pixel Pitch 0.17925 (H) x 0.17925 (V) mm
Pixel Arrangement RGB vertical stripe -
Display Colors 16.7 m color
Transmissive Mode Normally Black -
Surface Treatment Hard coating (3H), Anti-Glare -
Power Consumption Cell 0.891W(Max.) -

Operating Temperature

 -20°C to +70°C °C

Storage Temperature

 -30°C to +80°C °C

External Dimensions

High Brightness 15.6

Interface Pin Definition

Pin Symbol Description
1 NC No Connection (Reserved for LCD test)
2 H_GND High Speed Ground
3 ML1- Complement Signal-Lane 1
4 ML1+ True Signal-Main Lane 1
5 H_GND High Speed Ground
6 ML0- Complement Signal-Lane 0
7 ML0+ True Signal-Main Lane 0
8 H_GND High Speed Ground
9 AUX+ True Signal-Auxiliary Channel
10 AUX- Complement Signal-Auxiliary Channel
11 H_GND High Speed Ground
12 VCCS Power Supply +3.3V(typical)
13 VCCS Power Supply +3.3V(typical)
14 NC No Connection (Reserved for LCD test)
15 GND Ground
16 GND Ground
17 HPD Hot Plug Detect
18 BL_GND BL Ground
19 BL_GND BL Ground
20 BL_GND BL Ground
21 BL_GND BL Ground
22 LED_EN BL_Enable Signal of LED Converter
23 LED_PWM PWM Dimming Control Signal of LED Converter
24 NC No Connection (Reserved for LCD test)
25 NC No Connection (Reserved for LCD test)
26 LED_VCCS BL Power
27 LED_VCCS BL Power
28 LED_VCCS BL Power
29 LED_VCCS BL Power
30 NC No Connection (Reserved for LCD test)

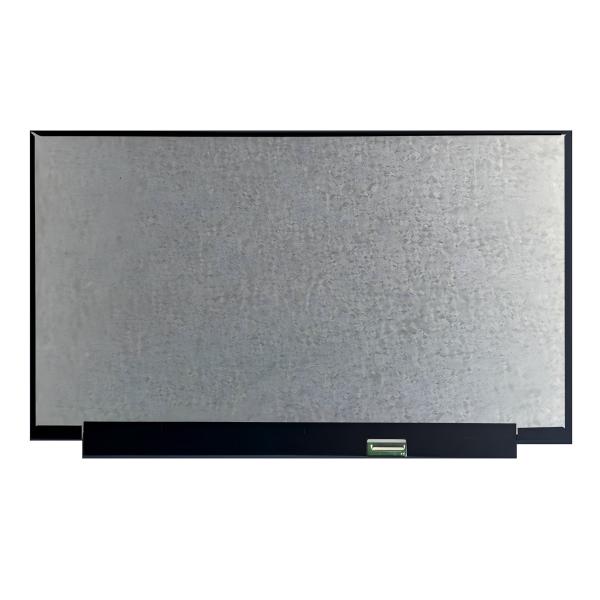

Product Image

High Brightness 15.6High Brightness 15.6
