Specifications
Brand Name :
SAEF
Model Number :
SFTO570DX-7263AN
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
The lowest market price guaranteed
Payment Terms :
PayPal, L/C, T/T, Western Union
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
5.7 inch TFT LCD Display
Resolution :
640x480 VGA
Brightness :
500 cd/m² (Typical)
Viewing Direction :
80° (All Directions, CR≥10)
Contrast Ratio :
1200:1
Interface :
6-bit RGB (40-pin)
Operating Temp. :
-30°C to +80°C
Customization :
Glass/Sensor/FPC Tailoring
Driver IC :
JD9168S
LED lifetime :
30,000 hours
Touch :
Projected Capacitive (PCAP)
Compliance :
Rohs & Reach Compliant
Description

Rugged 5.7" TFT LCD Display 500Nits with PCAP Touch - Industrial Grade Wide Temperature

Saef Technology's SFTO570DX-7263AN delivers exceptional performance in extreme environments. With 500 nits brightness, -30°C to +80°C operational range, and 80° all-direction viewing angles, this 5.7-inch VGA TFT is engineered for industrial HMI, medical devices, and automotive dashboards across Europe and North America.


✅ Extreme Environment Ready: Operates in Arctic cold to desert heat (-30°C~80°C) with 120hrs thermal shock certification.
✅ Industrial Durability: 3H hardened surface withstands scratches + random vibration resistance (0.015G²/Hz, 5-500Hz).
✅ Optimized Power: Only 1.5W backlight consumption + PWM dimming control (1-50kHz).
✅ High Visual Clarity: 1200:1 contrast ratio + 60% NTSC color gamut.

Seamless Touch Integration
Upgrade your solution with our Projected Capacitive (PCAP) touch customization:

  • Glass Options: Gorilla Glass®/Tempered Glass/PMMA with AG/AR/AF coatings.

  • Sensor Flexibility: Glass/Film/Film+Film stacks + custom FPC shapes.

  • Controller Compatibility: EETI, ILITEK, Cypress, Goodix (I²C/USB/RS232 interfaces).

  • Rapid Prototyping: 4-week sample lead time for display+touch combos.
    Ideal for: Medical sterilizable interfaces, automotive dashboards, factory automation controls.

Product Specification

Item Specification Unit
LCD Type TFT -
Display color 16.7M -
Viewing Direction IPS, All viewing angles O’Clock
Operating temperature -30~+80 ℃
Storage temperature -30~+80 ℃
Module size Refer to outline drawing mm
Active Area(W × H) 115.20X86.40 mm
Number of Dots 640 x 480 dots
LCM Controller JD9168S -
Power Supply Voltage 3.3 V
Backlight 3S7P-LEDs (white) pcs
Interface RGB Interface -

External Dimensions

5.7

Asolute Maximum Ratings

Item Symbol Min. Max. Unit
Supply Voltage Voltage VCC -0.3 3.3 V
Backlight Supply Voltage VLED -0.3 6.0 V
Operating temperature Top -30 80 ℃
Storage temperature Tst -30 80 ℃

Backlight Characteristics

Item Symbol Typical Value
Supply voltage VLED 5V
Supply Current IL 300 - mA
Power Consumption PL 1.5 - W
PWM Control Frequency FPDIM 50K Hz
Backlight ON-OFF High

VEN

 1.4 VLED V
Low 0 - 0.4 V
PWM Control Level High

VPDIM

 1.5 V
Low 0 - 0.4 V
Uniformity ΔBp 80%
Life Time time 40K hours

Interface Pin Definition

Pin No. Symbol I/O Definition
1 U/D I Up/down scan direction on panel module.
2 NC - No Connection.
3 HSYNC I Horizontal sync input in RGB interface.
4-6 VLED P Power supply for LED driver.
7 VCC P Power supply for TFT.
8 VSYNC I Vertical sync input in RGB interface.
9 DE I Data enable input in RGB interface.
10 XL I No Connection.
11 YU I No Connection.
12 ADJ I PWM signal input pin.
13-15 B5-B3 I Blue data bus.
16 VSS P Ground.
17-19 B2-B0 I Blue data bus.
20 VSS P Ground.
21-23 G5-G3 I Green data bus.
24 VSS P Ground.
25-27 G2-G0 I Green data bus.
28 VSS P Ground.
29-31 R5-R3 I Red data bus.
32 VSS P Ground.
33-35 R2-R0 I Red data bus.
36 XR I No Connection.
37 YD I No Connection.
38 DCLK I Pixel clock input in RGB interface.
39 VSS P Ground.
40 L/R I Left/right scan direction on panel module.

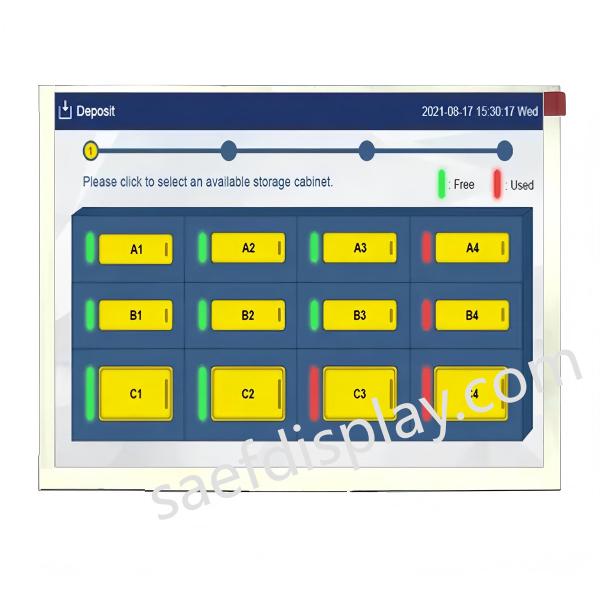

Product Image

5.7

5.7
