High Transmission Flexible Portable Solar Panels 260 Watt 3.2mm Tempered Glass
High Transmission Flexible Portable Solar Panels 260 Watt 3.2mm Tempered Glass
High Transmission Flexible Portable Solar Panels 260 Watt 3.2mm Tempered Glass
High Transmission Flexible Portable Solar Panels 260 Watt 3.2mm Tempered Glass
High Transmission Flexible Portable Solar Panels 260 Watt 3.2mm Tempered Glass
High Transmission Flexible Portable Solar Panels 260 Watt 3.2mm Tempered Glass
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-M265
Certification :
CE, LVD, TUV, IEC, ROSH, SGS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 pcs per month
Delivery Time :
15 days
Packaging Details :
single box or 25 pieces per pallet
Max power :
265Watt
Voltage :
30V vmp
Current :
8.83A
Efficiency :
15.90%
SIze :
1650*990*40mm
Junction box :
MC4 Connector
Description

China professional manufacture solar panel 260Watt Monocrystalline Solar Panel

Product Description
Characteristics SN-M240 SN-M250 SN-M260 SN-M270 SN-M280 SN-M290
Maximum Power(Pmax) 240Wp 250Wp 260Wp 270Wp 280Wp 290Wp
Optimum Operating Voltage/Vmp 30.0V 30.0V 30.0V 30.0V 30.0V 30.0V
Optimum Operating Current/Imp 8.00A 8.33A 8.66A 9.00A 9.33A 9.67A
Open Circuit Voltage /Voc 36.0V 36.0V 36.0V 36.0V 36.0V 36.0V
Short Circuit Current /Isc 8.60A 8.93A 9.53A 9.90A 10.26A 10.64A
Module Efficiency 16.4% 15.30% 15.90% 16.50% 17.14% 17.75%
Weight 17Kg 19Kg 19Kg 19Kg 19Kg 19Kg
Numbers of cells 60(6*10) 60(6*10) 60(6*10) 60(6*10) 60(6*10) 60(6*10)
Cell dimension(mm) 156*156 156*156 156*156 156*156 156*156 156*156
Dimensions(mm) 1480*990*35 1650*990*40
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5

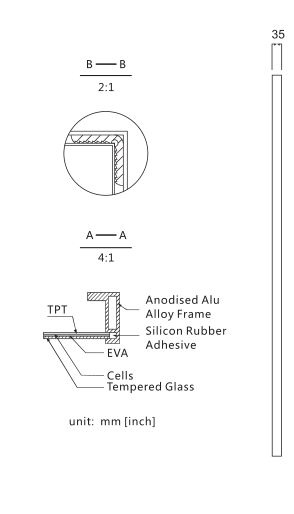

Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

High Transmission Flexible Portable Solar Panels 260 Watt 3.2mm Tempered GlassHigh Transmission Flexible Portable Solar Panels 260 Watt 3.2mm Tempered Glass

High Transmission Flexible Portable Solar Panels 260 Watt 3.2mm Tempered Glass
