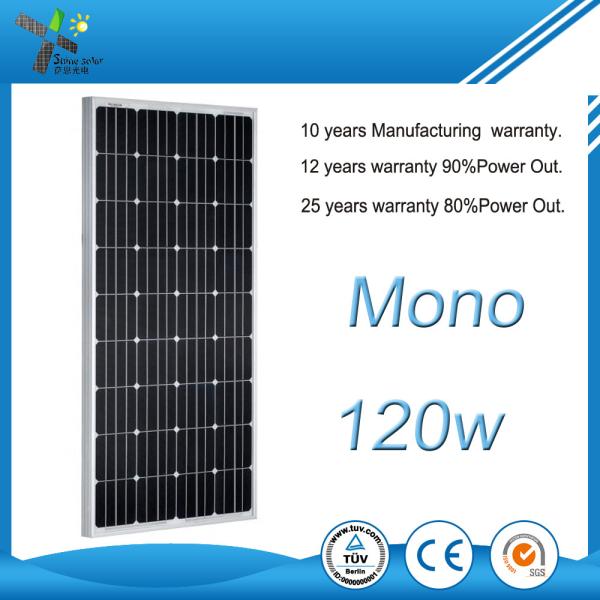

120W 12V Monocrystalline Solar Panel , New Technology Mono Solar Panels
120W 12V Monocrystalline Solar Panel , New Technology Mono Solar Panels
120W 12V Monocrystalline Solar Panel , New Technology Mono Solar Panels
120W 12V Monocrystalline Solar Panel , New Technology Mono Solar Panels
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-M120
Certification :
CE, LVD, TUV, IEC, ROSH, SGS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 pcs per month
Delivery Time :
15 days
Packaging Details :
single box or 25 pieces per pallet
Max power :
120Watt
Voltage :
18V vmp
Current :
6.67A
Efficiency :
15.05%

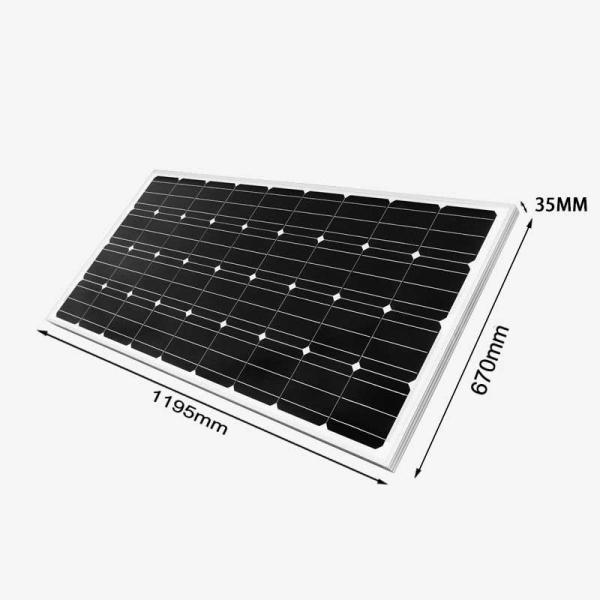

SIze :
1195*670*30mm
Junction box :
MC4 Connector
Description

New technology Monocrystalline Solar Panel 120w 12v mono solar panel with high efficience

International Standard High quality series Vglory solar making your perfect performance Solar power stations , Solar power system , solar generator,portable solar generator solar water pump ,solar powered generator,solar panels for home,etc ,

1) Each solar panel is embedded with a sheet of high transparent tempered glass, two sheets of long endurance EVA, a high efficiency solar cells sheet and a sheet of anti humidity TPT for different weather conditions.

2) With advanced facilities apply high quality materials , our solar panels /solar power are designed manufacturing in consistency with IEC61215 and IEC61730 standards which can guarantee excellent electrical performance also long lifespan of 25 years for our solar energy solar power .

3) Skillful experienced producing photovoltaic Mono & Poly Solar energy panels , Semi-flexible solar panel ,Transparent solar energy etc .

Product Description
Characteristics SN-M90 SN-M100 SN-M120 SN-M130 SN-M150 SN-M160 SN-M170
Maximum Power(Pmax) 90Wp 100Wp 120Wp 130Wp 150Wp 160Wp 170Wp
Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V 18.0V 18.2V
Optimum Operating Current/Imp 5.00A 5.56A 6.67A 7.22A 8.33A 8.89A 9.34A
Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V 21.6V 22.0V
Short Circuit Current /Isc 5.2A 5.76A 6.87A 7.42A 8.53A 9.78A 9.92A
Module Efficiency 13.92% 15.56% 15.05% 16.31% 15.10% 16.13% 17.14%
Weight 7.2Kg 7.2Kg 9Kg 9Kg 12Kg 12Kg 12Kg
Numbers of cells 36(4*9) 36(4*9) 36(4*9) 36(4*9) 36(4*9) 36(4*9) 36(4*9)
Cell dimension(mm) 125*125 125*125 156*125 156*125 156*156 156*156 156*156
Dimensions(mm) 1195*541*30 1190*670*30 1480*670*35
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5
Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

120W 12V Monocrystalline Solar Panel , New Technology Mono Solar Panels120W 12V Monocrystalline Solar Panel , New Technology Mono Solar Panels
