Specifications
Brand Name :
RUYA
Model Number :
/
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1-10 piece， 4-6 weeks
Delivery Time :
20-30 working days
Packaging Details :
Wooden box
Table Diameter :
Ф200mm
Table Runout :
0.02mm
Table Flatness :
0.02mm
Load Capability :
≤15Kg
Description

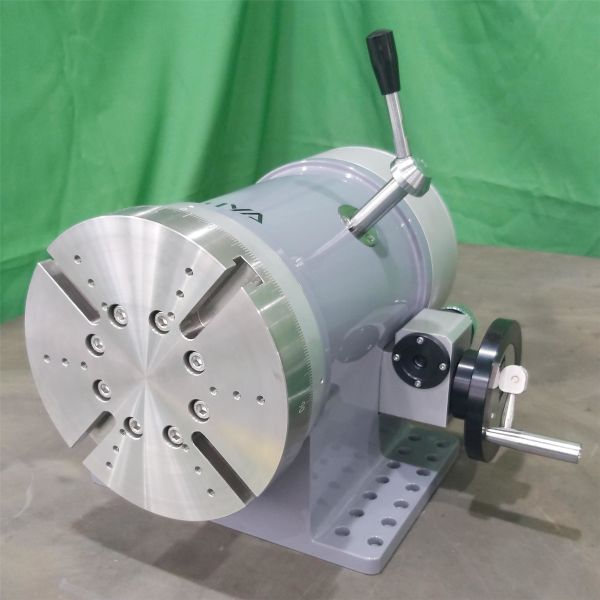

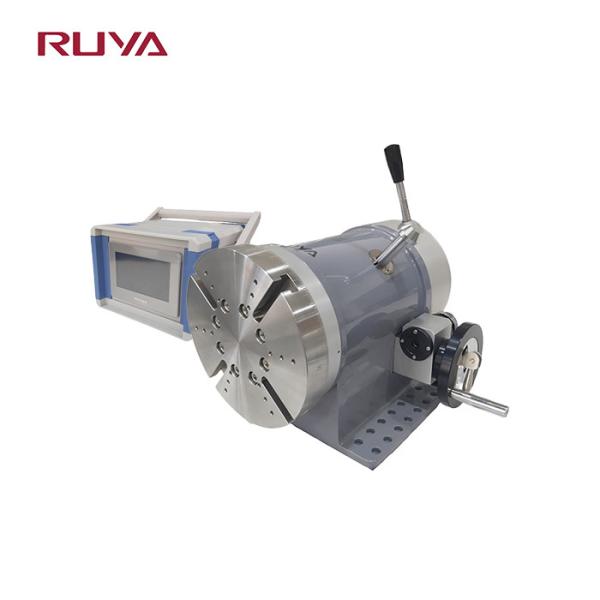

Servo-type Calibration Devices of Clinometers
Servo High-precision Manual Inclinometer Calibration Device
The manual Calibration Devices of Clinometers is a precision instrument designed for calibrating various types of inclinometers. This device enables manual calibration of fixed inclinometers, sliding inclinometers, and other similar measurement instruments.
In practical applications, this calibration device helps ensure the measurement precision and accuracy of inclinometers, thereby improving the quality and reliability of engineering measurements across various industrial and construction applications.
Product Specifications
Specification Value
Table Diameter Ф200mm
Table Flatness 0.02mm
Table Runout 0.02mm
Load Capability ≤15Kg
Rotary Accuracy Of Axis ±3″
Positioning Error Of Angular Position ±3″
Positioning Repeatability Of Angular Position ±1.5″
Adjustable Range Of Perpendicularity ±15°
Weight about 60kg
Product Images
Servo-type Calibration Device for Clinometers with Ф200mm Table Diameter, 0.02mm Flatness, and ±3″ Rotary Accuracy Servo-type Calibration Device for Clinometers with Ф200mm Table Diameter, 0.02mm Flatness, and ±3″ Rotary Accuracy
