Description
CXJ-2 High Precision Automatic Calibration Devices of Clinometers
Product Overview

The CXJ-2 High-precision Automatic Inclinometer Calibrator is an advanced device designed for calibrating various types of inclinometers. This system automatically completes calibration procedures, significantly improving both accuracy and efficiency in measurement verification processes.

Applications

In practical applications, the automatic Calibration Devices of Clinometers can be used to calibrate various types of inclinometers, including fixed inclinometers and sliding inclinometers. This equipment helps users ensure measurement precision and accuracy while enhancing the quality and reliability of engineering measurements.

Technical Specifications
Specification Details
Table Diameter Ф195mm
Table Flatness 0.02mm
Table Runout 0.02mm
Load Capability ≤15Kg
Rotary Accuracy Of Axis ±3″
Positioning Error Of Angular Position ±3″
Positioning Repeatability Of Angular Position ±1.5″
Adjustable Range Of Perpendicularity ±15°
Dimensions Control System: 950*500*1160 mm
Body: 500*500*950 mm
Measurement Software Compiled in accordance with JJF1550-2015 inclinometer calibration specifications. Capable of automatic indexing of the calibration table with all detection functions operating normally.

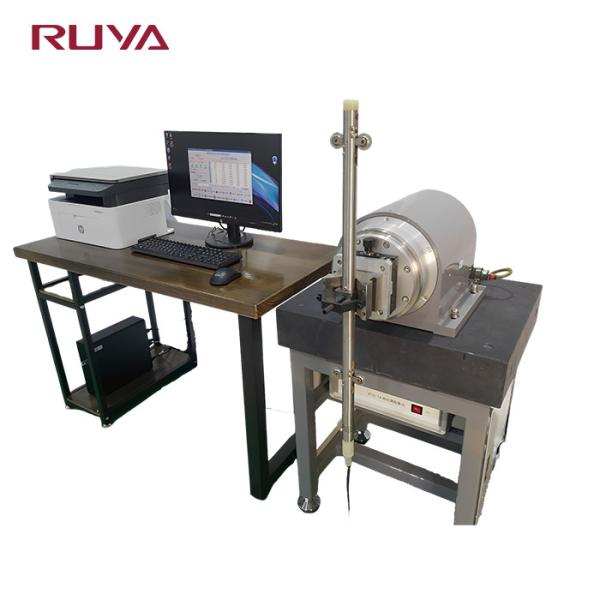

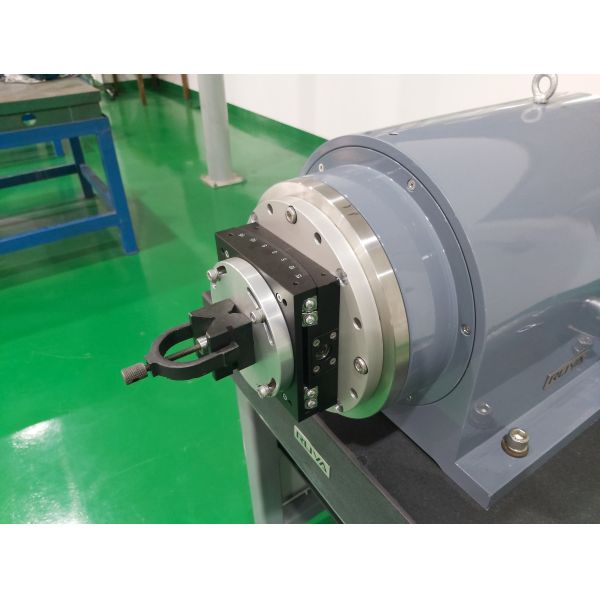

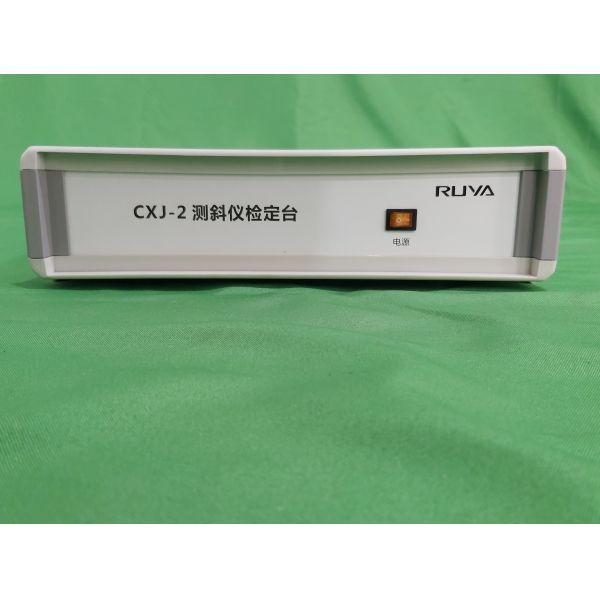

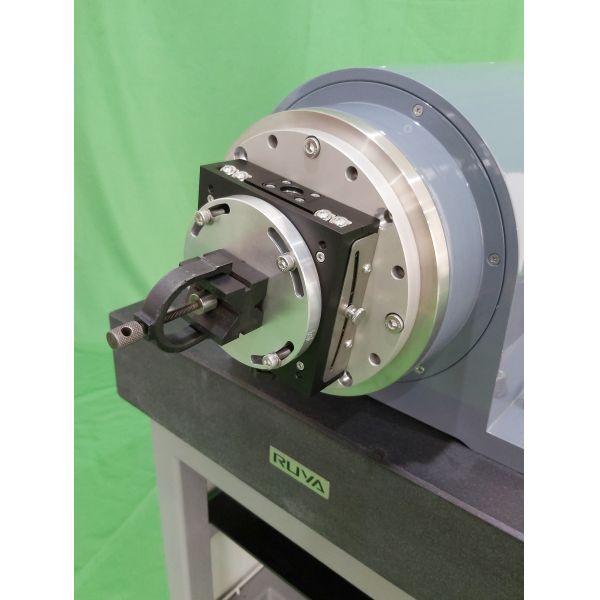

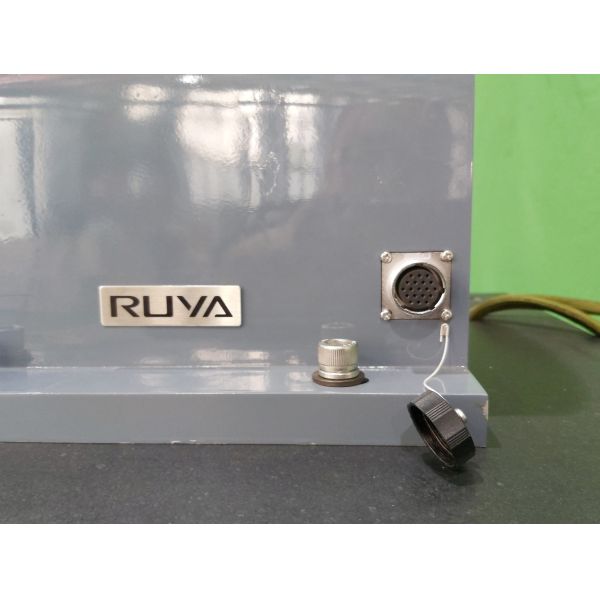

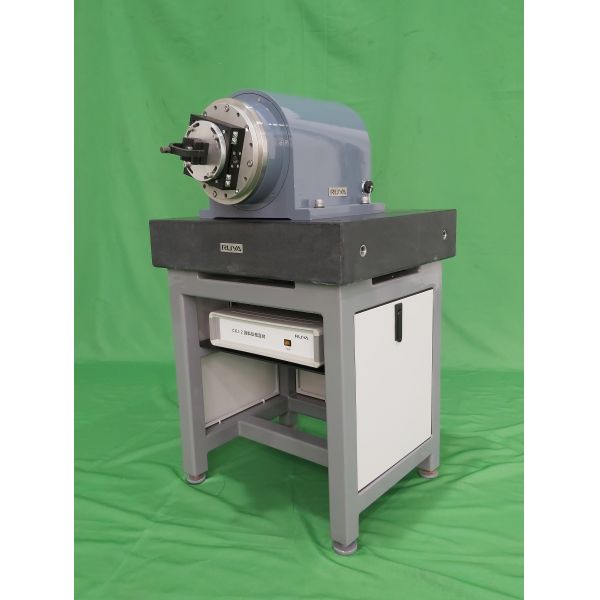

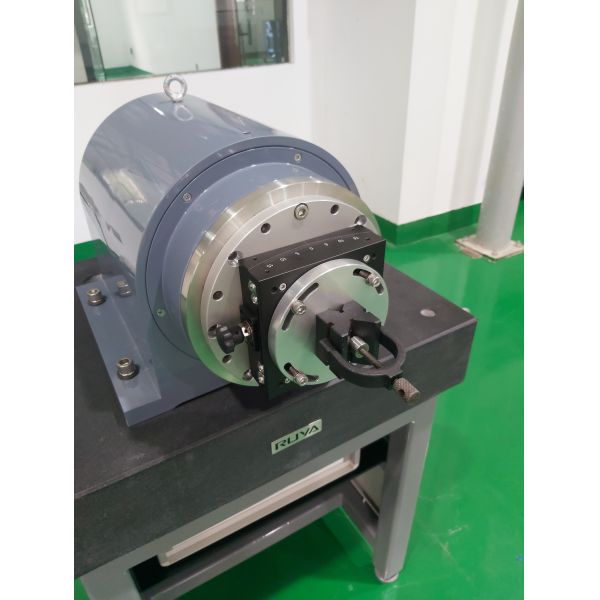

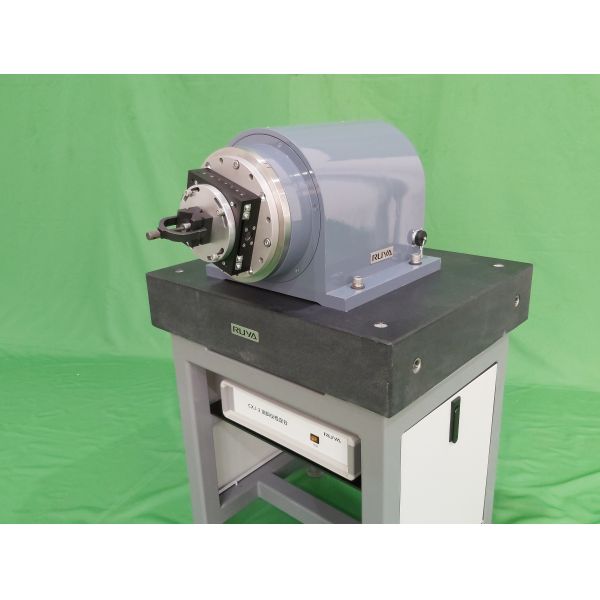

Product Images
CXJ-2 High Precision Automatic Calibration Device for Clinometers with Ф195mm Table Diameter and 0.02mm Table Flatness CXJ-2 High Precision Automatic Calibration Device for Clinometers with Ф195mm Table Diameter and 0.02mm Table Flatness
