Servo High Precision Manual Inclinometer Calibration Device
Servo High Precision Manual Inclinometer Calibration Device
Servo High Precision Manual Inclinometer Calibration Device
Servo High Precision Manual Inclinometer Calibration Device
Servo High Precision Manual Inclinometer Calibration Device
Servo High Precision Manual Inclinometer Calibration Device
Specifications
Brand Name :
RUYA
Model Number :
/
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1-10 piece， 4-6 weeks
Delivery Time :
20-30 working days
Packaging Details :
Wooden box
Table Diameter :
Ф200mm
Table Runout :
0.02mm
Table Flatness :
0.02mm
Load Capability :
≤15Kg
Description

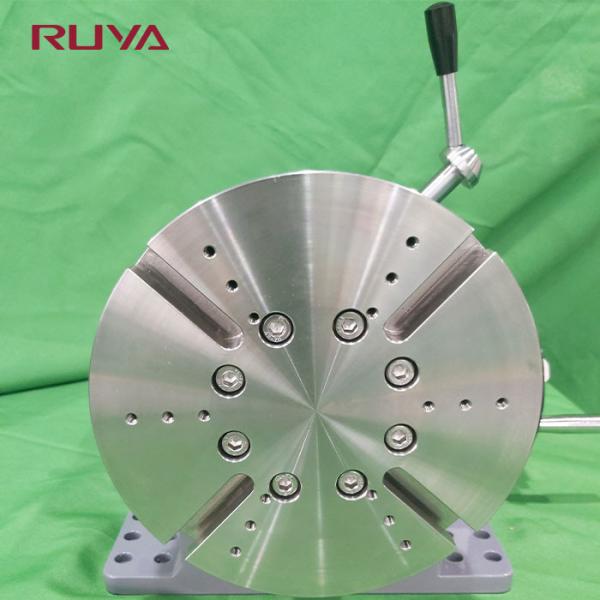

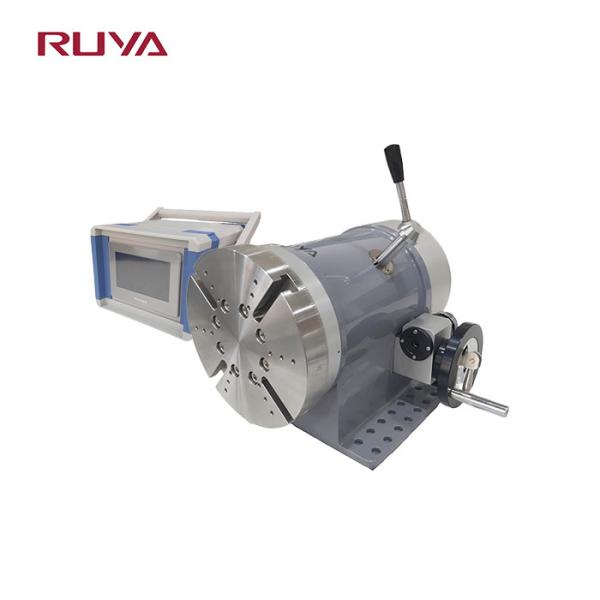

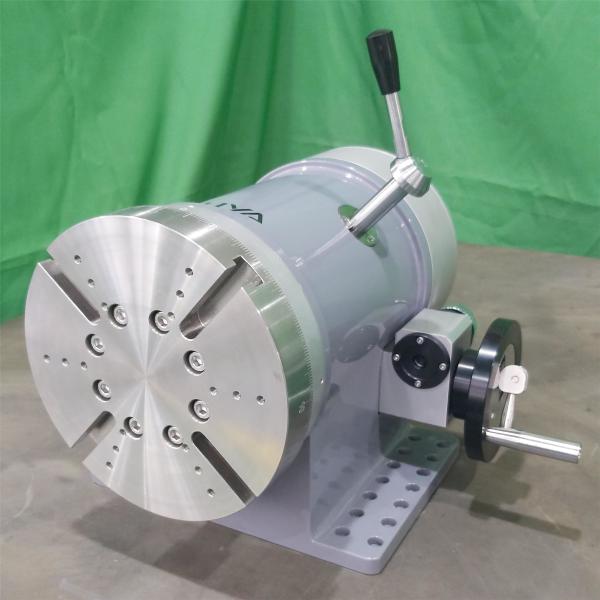

Servo High-precision Manual Inclinometer Calibration Device

Product Description

The manual inclinometer calibrator is a device used to calibrate inclinometers. It can calibrate the inclinometer manually.

In practical applications, manual inclinometer calibrator can be used to calibrate various types of inclinometers, such as fixed inclinometers, sliding inclinometers, etc. It can help users ensure the measurement precision and accuracy of inclinometers and improve the quality and reliability of engineering measurements.

Product parameters

Specification

1

Table Diameter

Ф200mm

2

Table Flatness

0.02mm

3

Table Runout

0.02mm

4

Load Capability

≤15Kg

5

Rotary Accuracy Of Axis

±3″

6

Positioning Error Of Angular Position

±3″

7

Positioning Repeatability Of Angular Position

±1.5″

8

Adjustable Range Of Perpendicularity

±15°

9

Weight

about 60kg
