Specifications
Brand Name :
RUYA
Model Number :
2-STGZ/2
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3 months
Packaging Details :
wooden box
Azimuth Rotation Range :
-90º~+90°
Pitch Rotation Range :
-5°~+85°
Pointing Accuracy (Static) :
10″ (3σ)
Repeatability :
2″
Vertical Axis Angular Wobble :
≤2″
Horizontal Axis Angular Wobble :
≤3″
Angular Position Measurement Resolution :
0.0001°
Angular Position Measurement Accuracy :
≤5″
Description

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device


Product Description

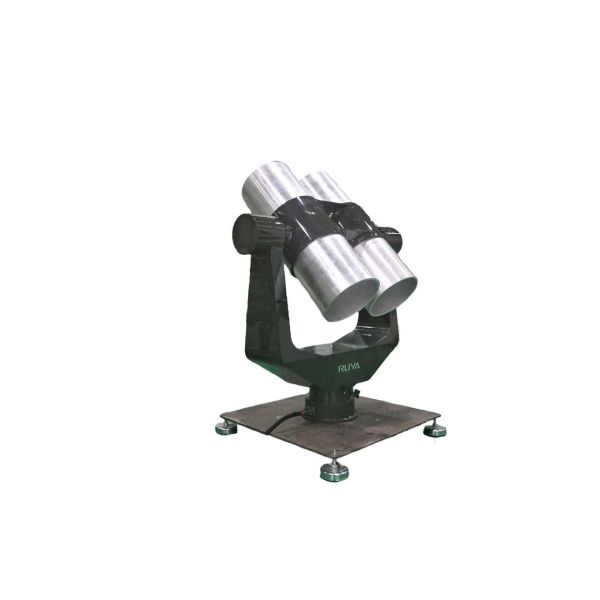

The 2-STGZ/2 two-dimensional tracking turntable has two degrees of motion freedom: azimuth and pitch.

It is a frame-type U-T structure two-dimensional tracking device, primarily used for tracking unmanned aerial vehicles (UAVs).


Product Parameters


1. Turntable Structure: The azimuth axis adopts a "T" shaped structure. The pitch axis adopts a "U" shaped ring frame structure.

2. Azimuth Rotation Range: -90º~+90° (to center point)

3. Pitch Rotation Range: -5°~+85°

4. Zero Point: Equipped with a code disk zero point

5. Pointing Accuracy (Static): 10″ (3σ)

6. Repeatability: 2″

7. Vertical Axis Angular Wobble: ≤2″

8. Horizontal Axis Angular Wobble: ≤3″

9. Angular Position Measurement Resolution: 0.0001°

10.Angular Position Measurement Accuracy: ≤5″

11.Load size: Two Φ250

12. Load weight: 30kg, double lens barrel

13. Turntable weight: 45kg

14. Limits: Dual protection with mechanical and electronic limits

15. Tracking error: <3″

16. Maximum azimuth speed: ≥20°/s;

17. Maximum azimuth tracking speed: ≥2°/s;

18. Maximum pitch speed: ≥20°/s;

19. Maximum pitch tracking speed: ≥2°/s;

20. Maximum azimuth tracking acceleration: ≥2°/s;

21. Maximum pitch tracking acceleration: ≥2°/s.
