2-STGZ600 Medium Load Tracking Turntable 100Kg Load Weight
2-STGZ600 Medium Load Tracking Turntable 100Kg Load Weight
Specifications
Brand Name :
RUYA
Model Number :
2-STGZ600
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
100Kg
Rotary Accuracy :
±3″
Positioning Error :
±3″
Positioning Repeatability :
±2″
Angle Rotary Range（azimuth） :
±280°
Angle Rotary Range（pitch） :
±90°
Maximum Angular Acceleration（pitch） :
≥2°/s²
Maximum Angular Acceleration（azimuth） :
≥6°/s²
Description

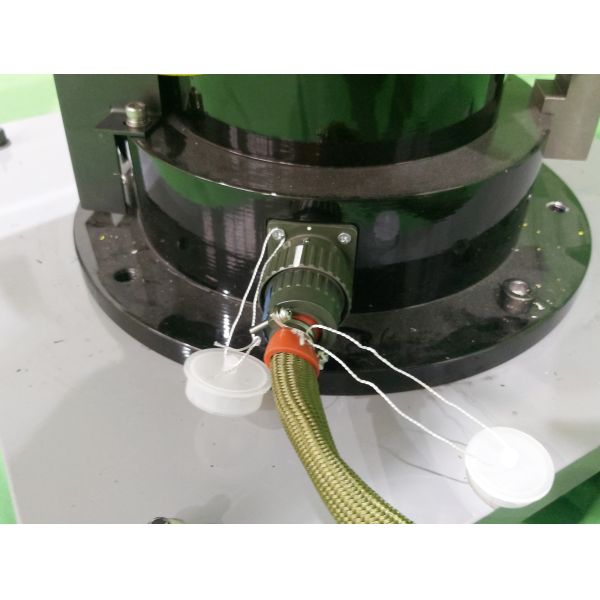

2-STGZ600 Medium Load Tracking Turntable

Product Description

The medium load tracking turntable has two degrees of freedom of movement in the azimuth axis and pitch axis. It is a TL type two-dimensional tracking equipment,which can simulate satellite pointing and attitude on the ground while eliminating the influence of the earth's rotation. It can be used as a quantum communication ground receiving station, and together with the quantum satellite transmitter, complete satellite-to-ground quantum communication. And cooperating with the user's software control and guide design, the two-dimensional tracking turntable has the ability to track satellites.

Product Parameters

Specification

1

Load Weight

100Kg

2

Angle Rotary Range

azimuth:±280°

pitch:±90°

3

Rotary Accuracy Of Dual-Axis

±3″

4

Positioning Error Of Angular Position

±3″

5

Positioning Repeatability Of Angular Position

±2″

6

Resolution Of Angular Position

0.0001°

7

Rate Accuracy

ω≤1°/s , 2×10-3 (1° average)

1°/s≤ω<10°/s , 2×10-4 (10° average)

ω≥10°/s , 2×10-5 (360° average)

8

Maintain Precision Tracking Speed

10°/s≥azimuth≥1″/s；

5°/s≥pitch≥1″/s

9

Maximum Angular Acceleration

pitch:≥2°/s²；

azimuth:≥6°/s²

10

Code Disc Resolution

1″

11

Zero Point

With code disc zero point

12

For Stellar Targets, Open-Loop Tracking Accuracy (RMS)

Error within 10 seconds <0.5″, error within 60 minutes <1″;

13

For Space Targets, Open-Loop Tracking Accuracy (RMS)

Single axis<5″
