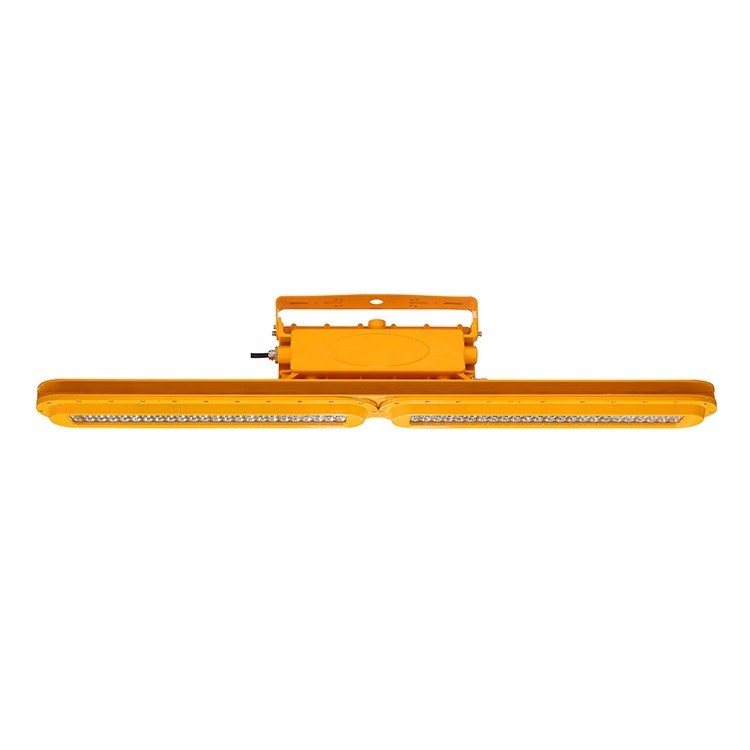

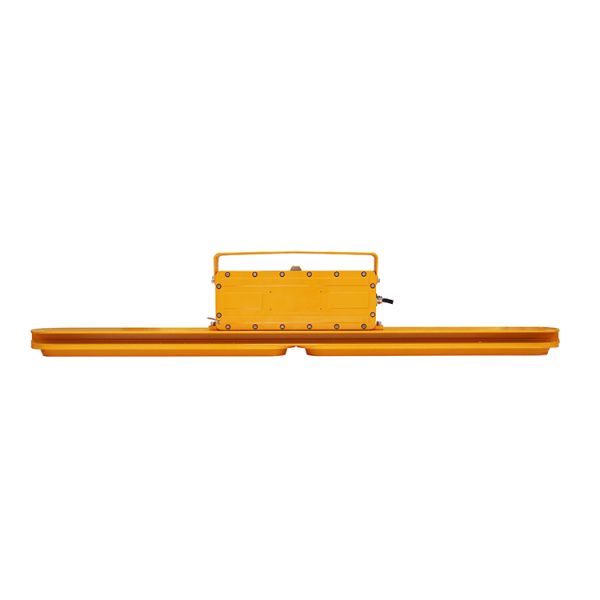

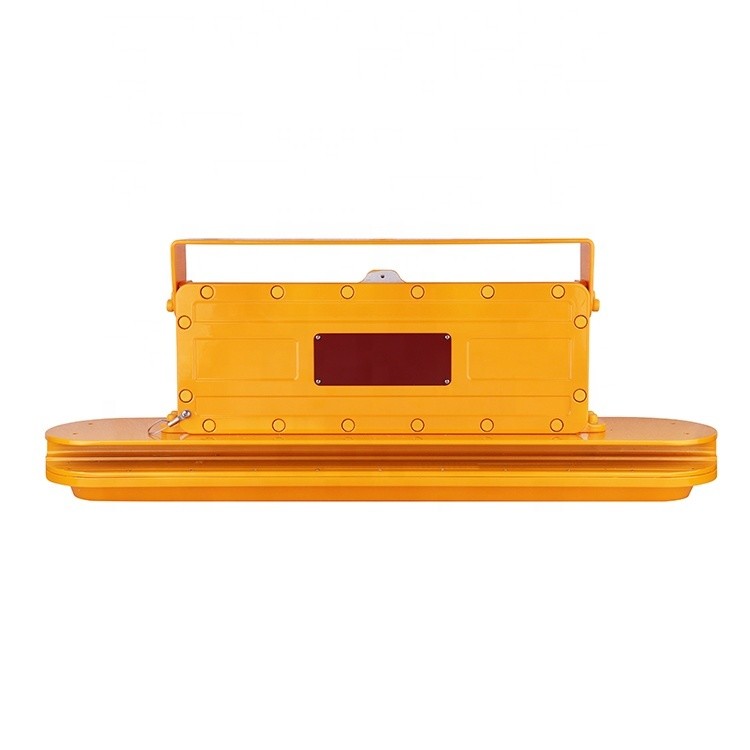

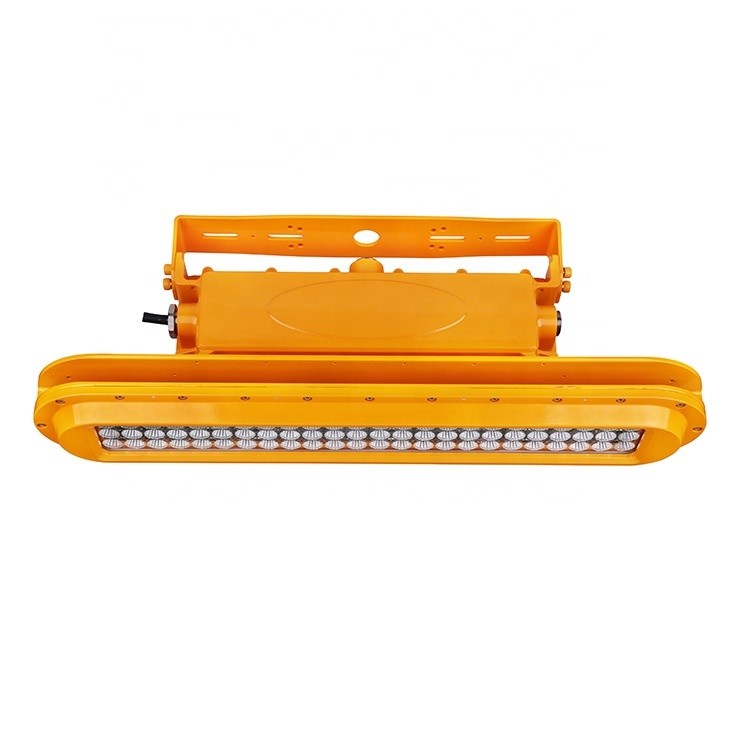

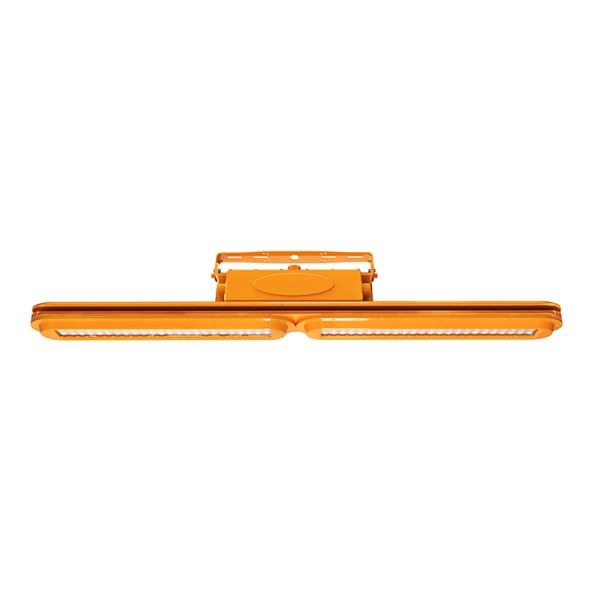

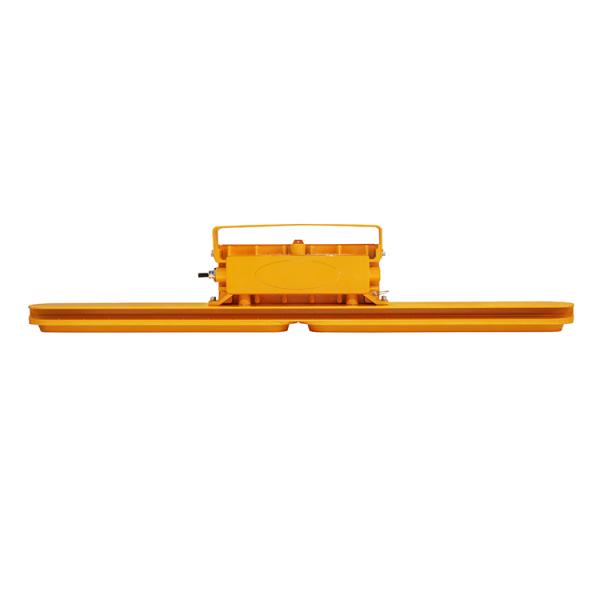

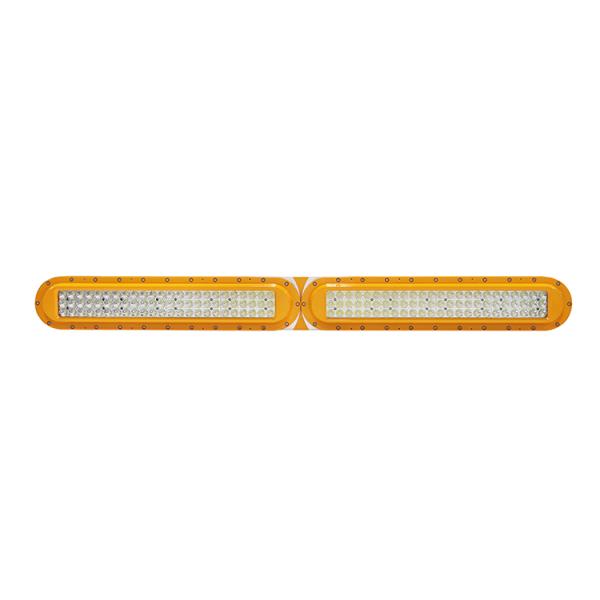

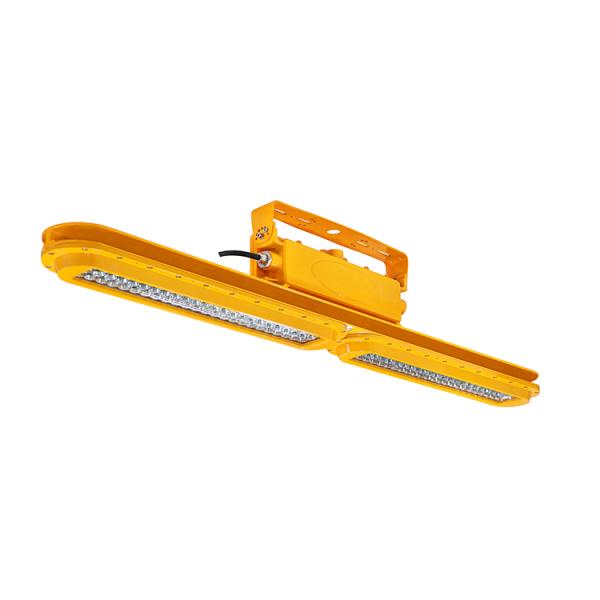

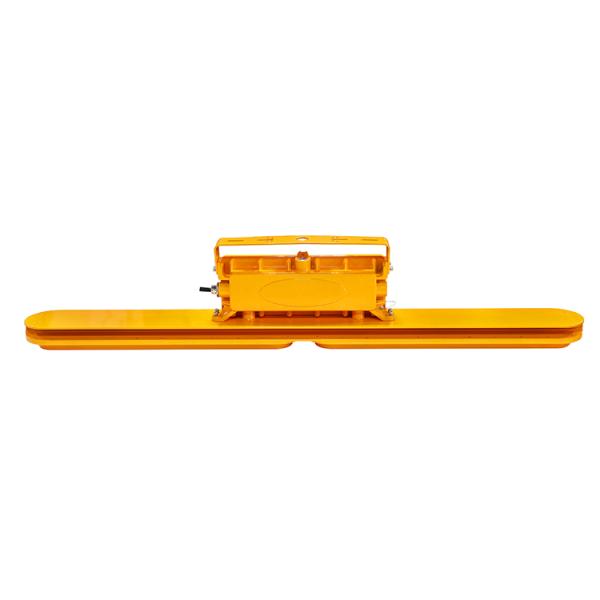

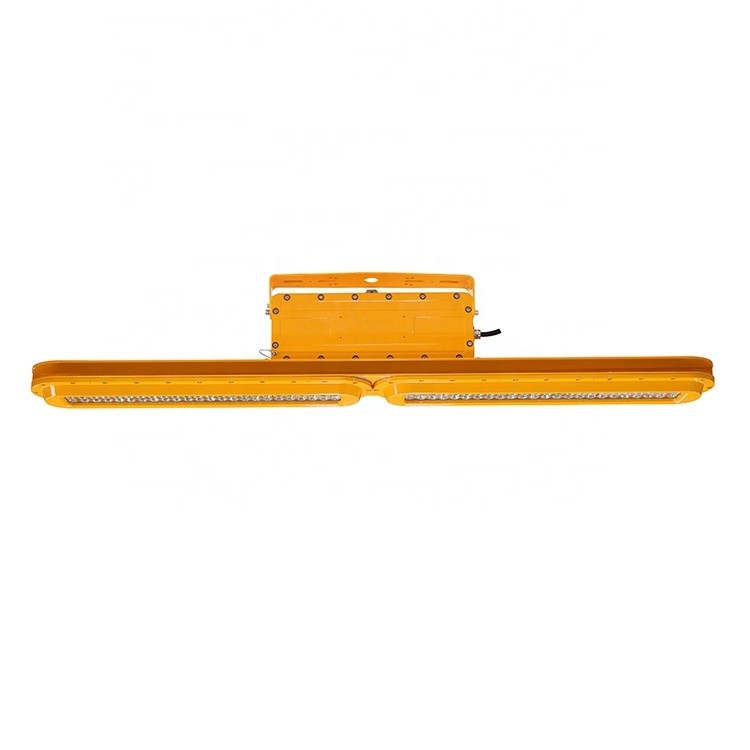

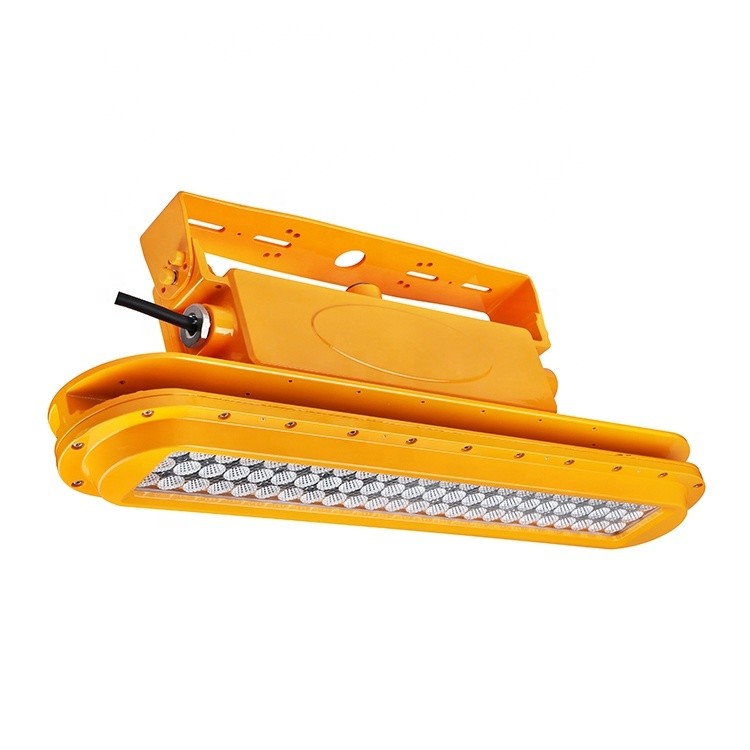

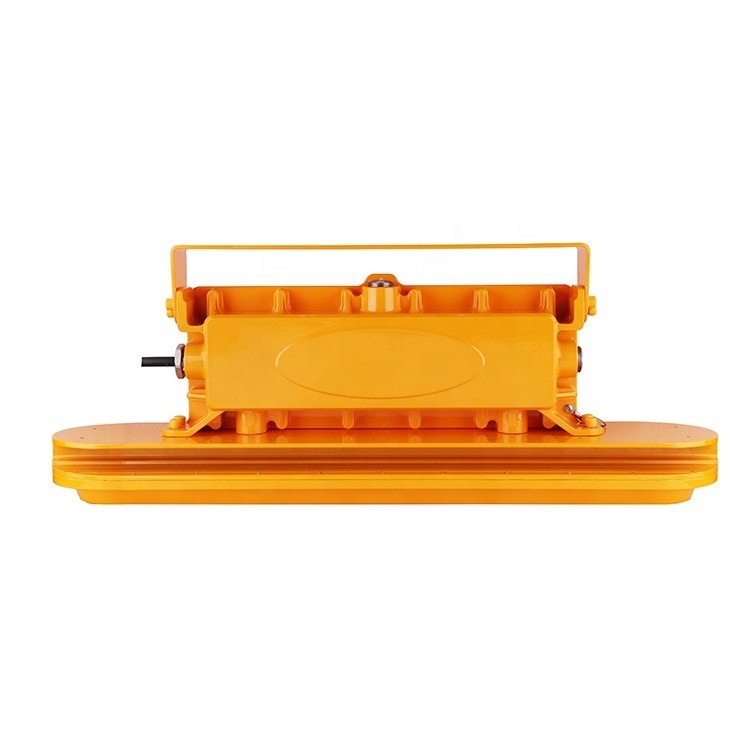

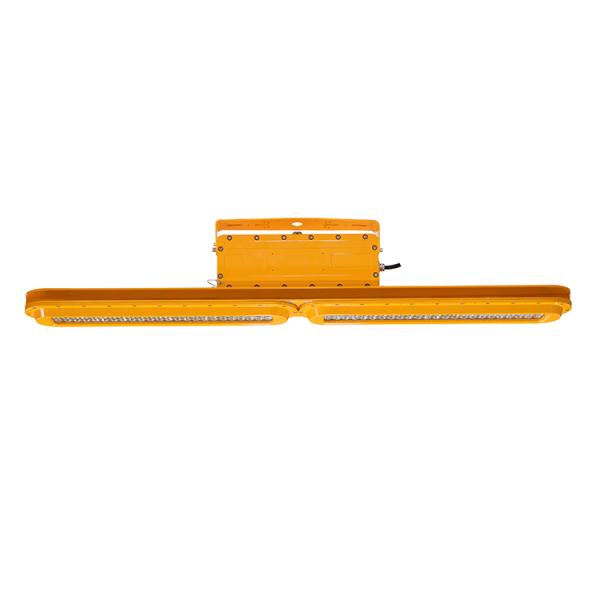

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications
Specifications
Color Temperature(CCT) :
3000 - 6500K, 2700-6500k
Input Voltage(V) :
100-277VAC 50/60Hz
Lamp Luminous Efficiency(lm/w) :
120
Warranty(Year) :
5-Year
Color Rendering Index(Ra) :
>70
Support Dimmer :
Yes
Lighting solutions service :
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
Lifespan (hours) :
50000
Working Time (hours) :
50000
Product Weight（kg） :
5
CRI (Ra>) :
70
IP Rating :
IP66
Working Lifetime(Hour) :
50000
Working Temperature(℃) :
-40 - 65
Place of Origin :
Jiangsu, China
Brand Name :
ileding
Light Source :
LED
Product name :
Hazardous Location LED Linear Light
Part No :
01-40W
Dimension :
650*130*208.5 mm 25.6''*5.11''*8.2''
Color temperature :
3000 - 6500K
Waterproof Rating :
WET (IP66)
Certification :
ETL DLC
Application :
Explosive Chemical Materials Place
Power :
30/50/80/100/120/150/200W
Features :
Explosionproof
MOQ :
2 pieces
Price :
$95.00/pieces 2-99 pieces
Description

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

Color temperature

3000 - 6500K

CRI

>70

Cover

Diffuser+ clear glass

Lumen

5000-5800LM

Lumen Efficacy

140 LM/W

(130-145 LM/W)

135 LM/W

(125-135 LM/W)

140 LM/W

(130-145 LM/W)

Viewing Angle

20°,30°,35°

60°,80°

110*100°

Input Power

40W

Input Voltage

100-277VAC 50/60Hz

Driver Brand

China Brand Driver 10KV(SOSEN-SS-50VA-56BHL)

PF

>0.9

Waterproof Rating

WET (IP66)

Explosion-proof Mark

North America: Class I ,Division 2,Groups A,B,C,D, T4A;

LED Brand

Seoul

LED Type

SMD 3030(1.0W)

LED QTY

144 PCS(40W)

Housing

Aluminum

Housing color

Yellow / Gray

Operating Temperature

-40℃ TO 65℃

Operating Humidity

10%-90% RH

Storage Temperature

-40℃ TO 80℃

Storage Humidity

10%-95%

Application

Indoor/Outdoor

Safety Certification

UL/cUL

Warranty Time

5 Years

Size

Qty / Carton

Net weight

Gross Weight / Carton

Lamp Outer box

760*220*305mm

1 PC

10.68kg

12.5kg

Troubles

Check points

Flickering of the light

Turn off the power and turn on again in 3 minutes.

If same phenomena occur, then call agencies.

Out of working

Please check the connection.

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

650*130*208.5 mm 40w Strip LED Explosion-proof Light for Indoor/Outdoor Applications

Q1: Are you are a factory or a trading company?

We are the factory and we have our own die-casting workshop.

Q2: All products have a warranty?

Yes, all products have 5 years warranty at least.

Q3: Can you put our brand name or logo on our products?

Yes, we support ODM and OEM service.

Q4: Can i have a sample order for LED light?

Yes, we welcome sample order to test and check quality. Mix samples are acceptable.

Q5: How to deal with the faulty?

Firstly,we have strict quality control over our products and the defective rate will be less than 0.2%.

Secondly, if there are some problems, please contact with us. We can discuss how to deal with them

until you are satisfied.

--- Don't hesitate to contact us!
