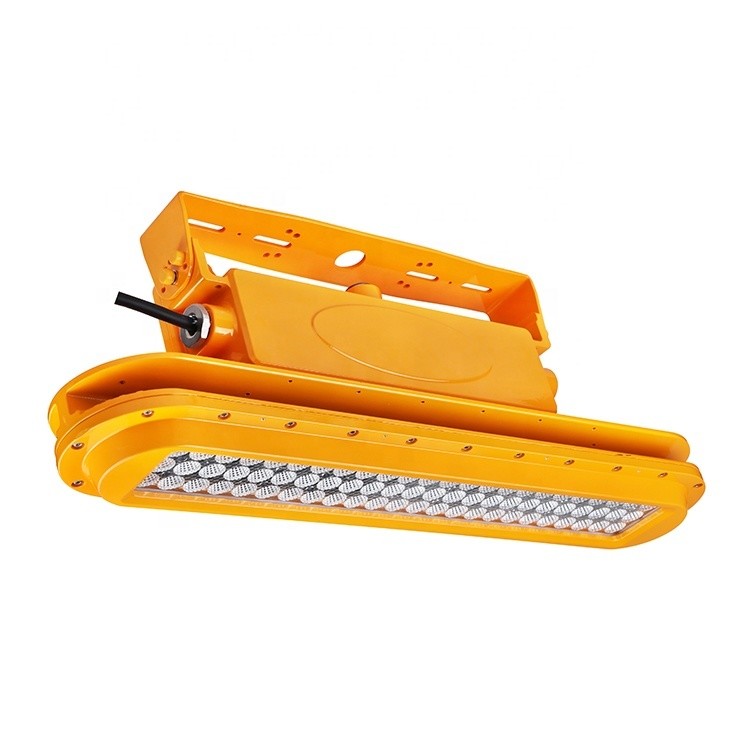

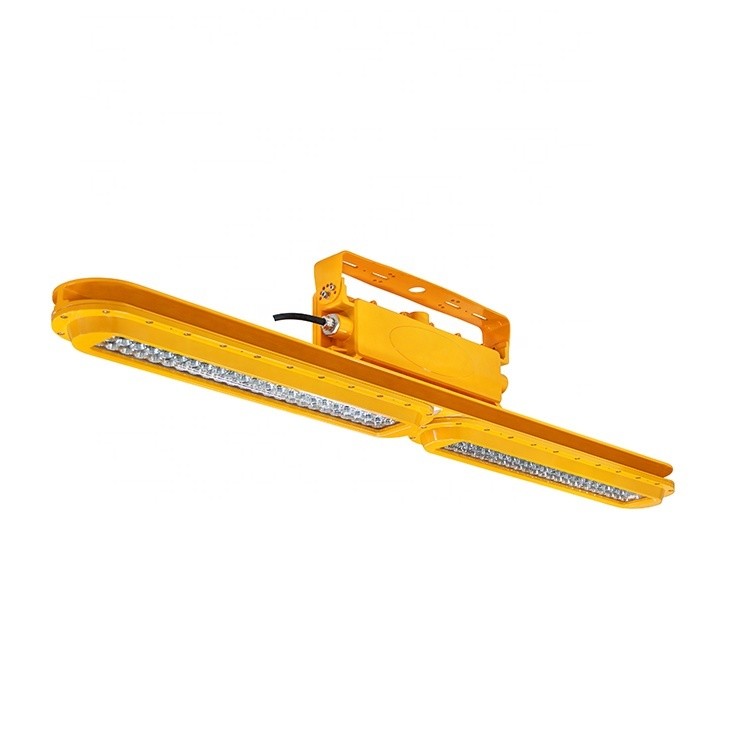

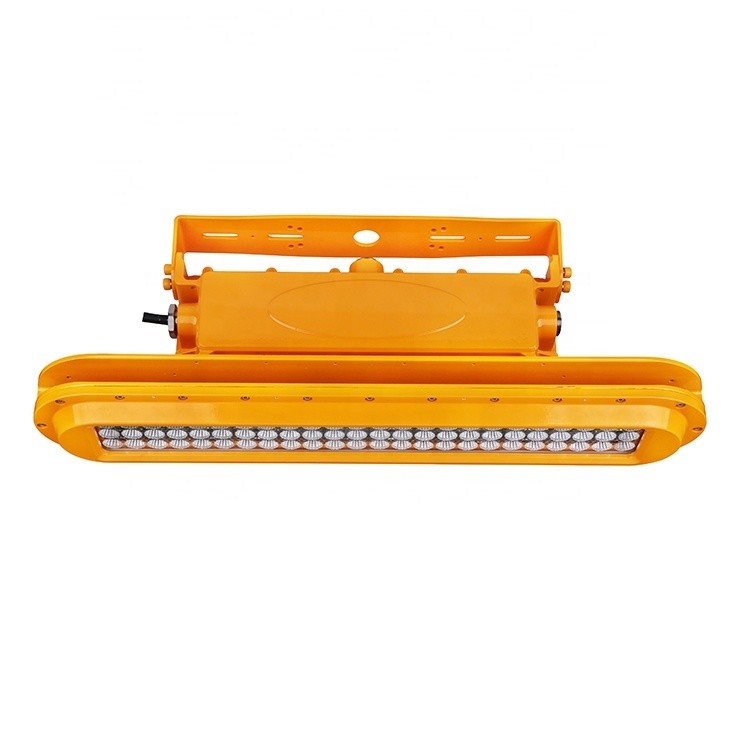

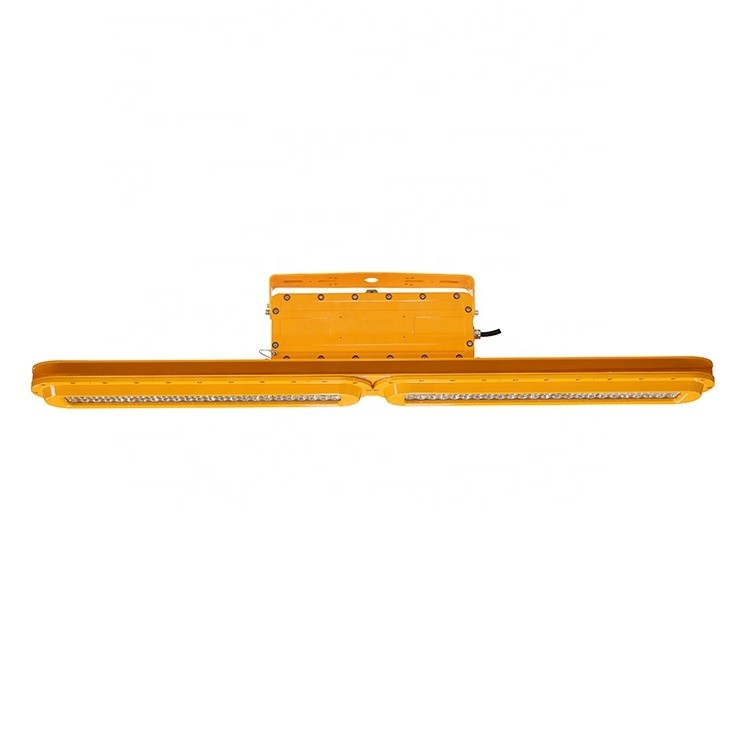

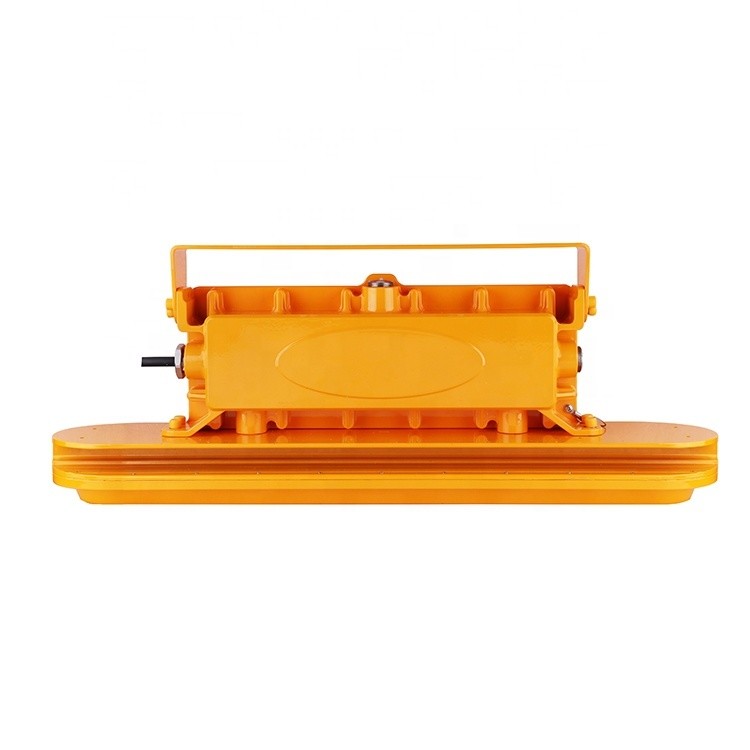

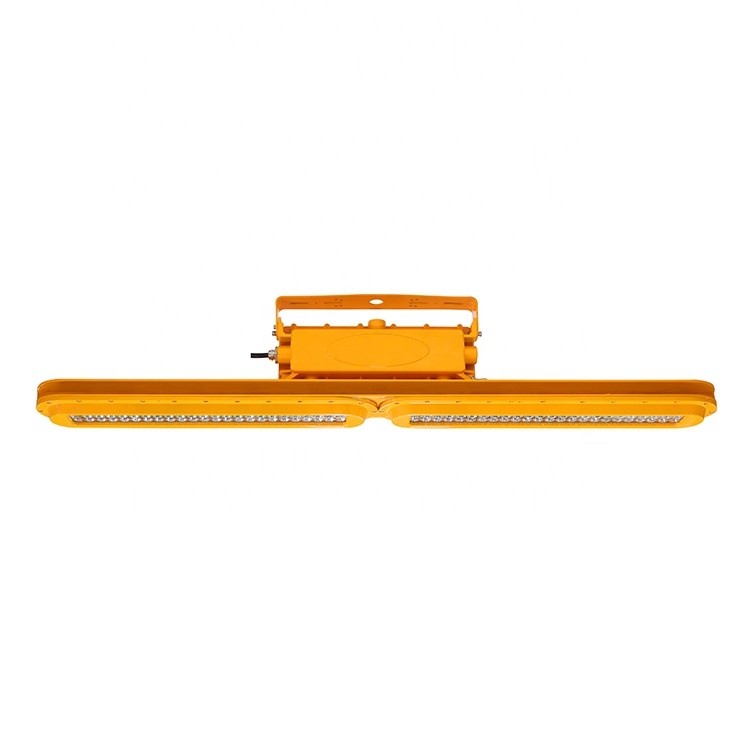

Unique Part No 01-80WZH1 Explosion Proof Light 6440lm for Indoor/Outdoor Applications

Specifications

Color Temperature(CCT) :

3000 - 6500K, 2700-6500k

Input Voltage(V) :

277-480VAC 50/60Hz

Warranty(Year) :

5-Year

Color Rendering Index(Ra) :

>70

Support Dimmer :

Yes

Lighting solutions service :

Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation

Lifespan (hours) :

50000

Working Time (hours) :

50000

Product Weight（kg） :

CRI (Ra>) :

Lamp Luminous Flux(lm) :

6440

IP Rating :

IP66

Working Lifetime(Hour) :

50000

Working Temperature(℃) :

-40 - 65

Place of Origin :

Jiangsu, China

Brand Name :

ileding

Light Source :

LED

Product name :

Hazardous Location LED Linear Light

Part No :

01-80WZH1

Dimension :

1299*130*205 mm 51.14``*5.11''*8.2''

Color temperature :

3000 - 6500K

Waterproof Rating :

WET (IP66)

Application :

Chemical Industry

Certification :

ETL DLC

Features :

Explosionproof

Power :

30/50/80/100/120/150/200W

MOQ :

2 pieces

Price :

$95.00/pieces >=2 pieces

Description

Unique Part No 01-80WZH1 Explosion Proof Light 6440lm for Indoor/Outdoor Applications

Product name

Hazardous Location LED Linear Light

Part No

SNC-EPLL01-80WXYZH1-abcd

Dimension

1299*130*205 mm

51.14’’*5.11’’*8.2’’

Color temperature	3000 - 6500K
CRI	>70
Cover	Diffuser+ clear glass
Lumen	10000-11600LM
Lumen Efficacy	140 LM/W (130-145 LM/W)	135 LM/W (125-135 LM/W)	140 LM/W (130-145 LM/W)
Viewing Angle	20°,30°,35°	60°,80°	110*100°
Input Power	80W
Input Voltage	277-480VAC 50/60Hz
Driver Brand	China Brand Driver 10KV(SOSEN-SS-100M-56BHL)
PF	>0.9
Waterproof Rating	WET (IP66)
Explosion-proof Mark	North America: Class I ,Division 2,Groups A,B,C,D,T5;

LED Brand	Seoul
LED Type	SMD 3030(1.0W)
LED QTY	288 PCS(80W)
Housing	Aluminum
Housing color	Yellow / Gray

Operating Temperature	-40℃ TO 65℃
Operating Humidity	10%-90% RH
Storage Temperature	-40℃ TO 80℃
Storage Humidity	10%-95%
Application	Indoor/Outdoor
Safety Certification	UL/cUL
Warranty Time	5 Years

	Size	Qty / Carton	Net weight	Gross Weight / Carton
Lamp Outer box	1410220305mm	1 PC	16.32kg	19.18kg

Troubles

Check points

Flickering of the light

Turn off the power and turn on again in 3 minutes.

If same phenomena occur, then call agencies.

Out of working

Please check the connection.

Unique Part No 01-80WZH1 Explosion Proof Light 6440lm for Indoor/Outdoor Applications

Q1: Are you are a factory or a trading company?

We are the factory and we have our own die-casting workshop.

Q2: All products have a warranty?

Yes, all products have 5 years warranty at least.

Q3: Can you put our brand name or logo on our products?

Yes, we support ODM and OEM service.

Q4: Can i have a sample order for LED light?

Yes, we welcome sample order to test and check quality. Mix samples are acceptable.

Q5: How to deal with the faulty?

Firstly,we have strict quality control over our products and the defective rate will be less than 0.2%.

Secondly, if there are some problems, please contact with us. We can discuss how to deal with them

until you are satisfied.
