Specifications
Place of Origin :
Hubei, China
Brand Name :
Smooth Star
Price :
CN¥77,607.11/pieces 1-4 pieces
Condition :
New
Transmission Type :
Manual
Emission Standard :
Euro 3
Fuel Type :
Diesel
Dimensions (L x W x H) (mm) :
7000*2350*3050
Gross Vehicle Weight :
11920
After-sales Service Provided :
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
Transport medium :
Waste engine oil, waste acid and waste alkali
Tank volume :
6.85 cubic meters
Overall dimension (mm) :
7000*2350*3050
maximum Speed (Km/h) :
80km/h
Wheelbase :
3845
Displacement (ml) :
2977
Power (Kw)/ horsepower (PS) :
120/163
gearbox :
Xing Rui 6 gear
Description

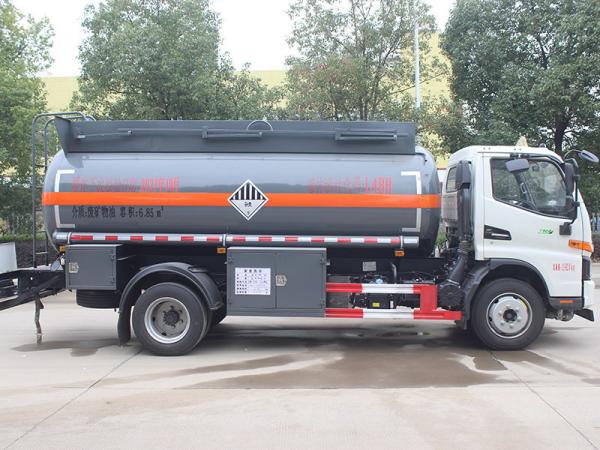

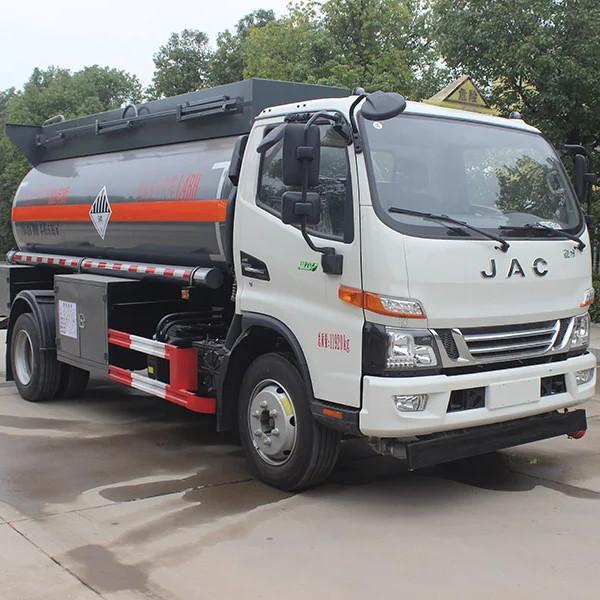

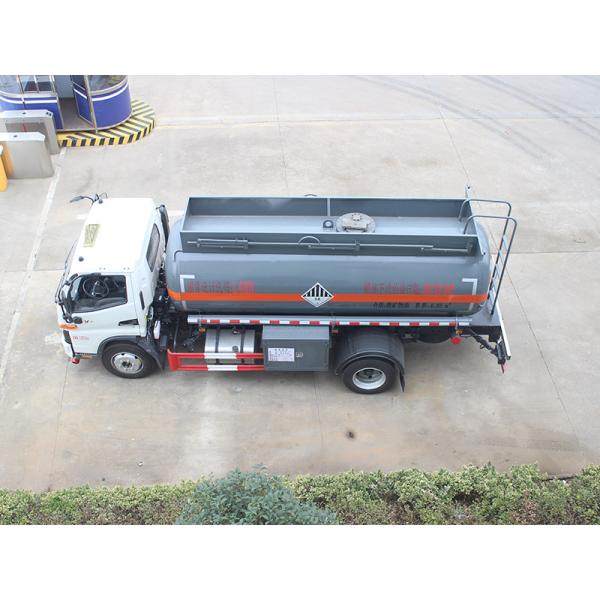

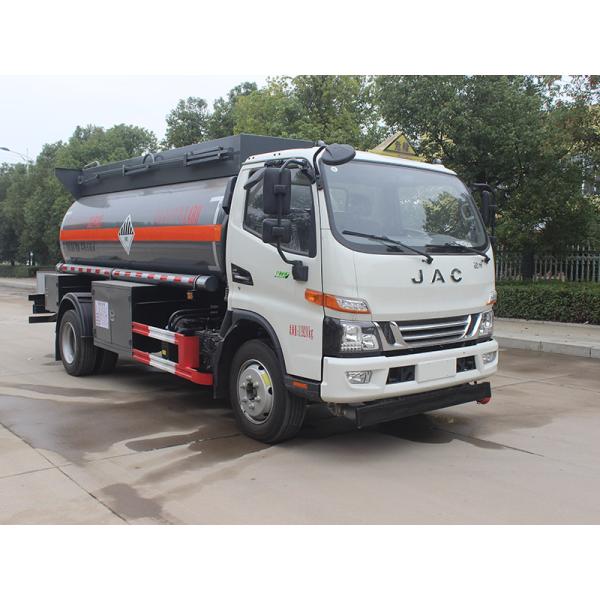

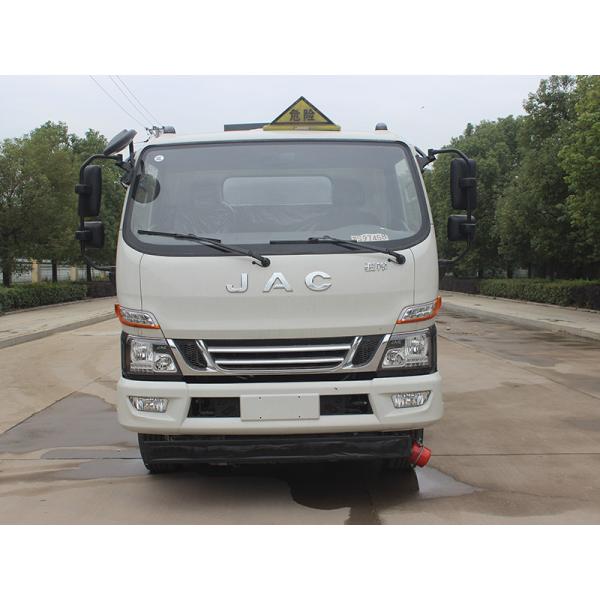

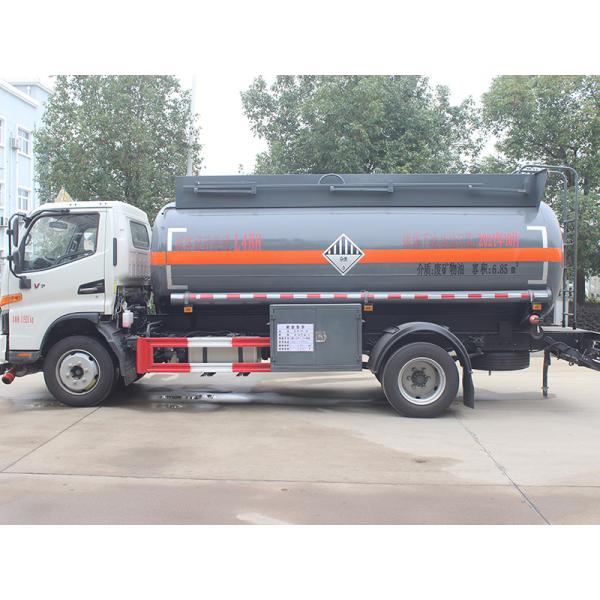

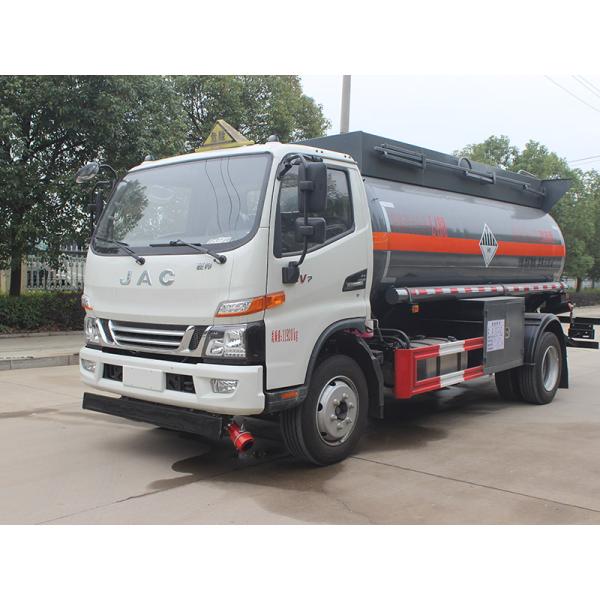

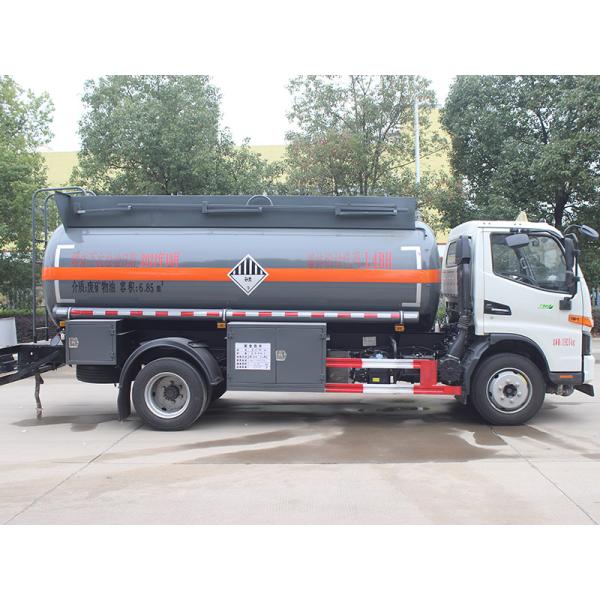

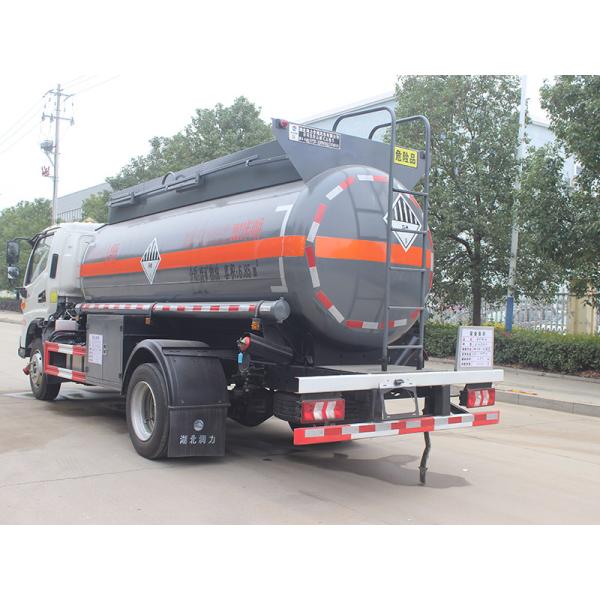

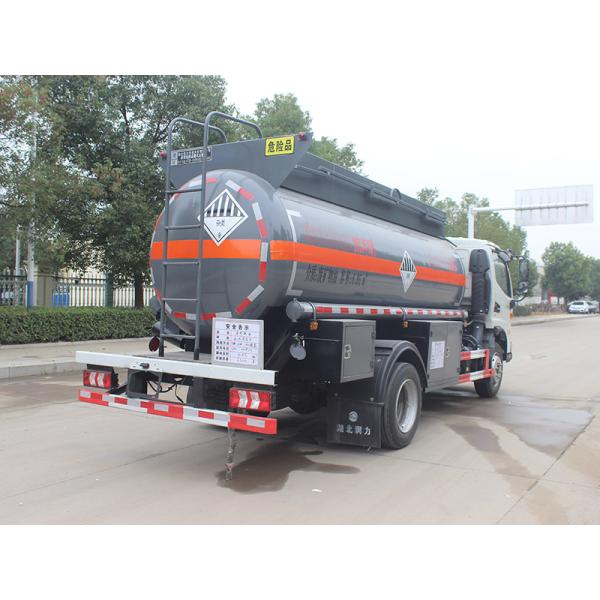

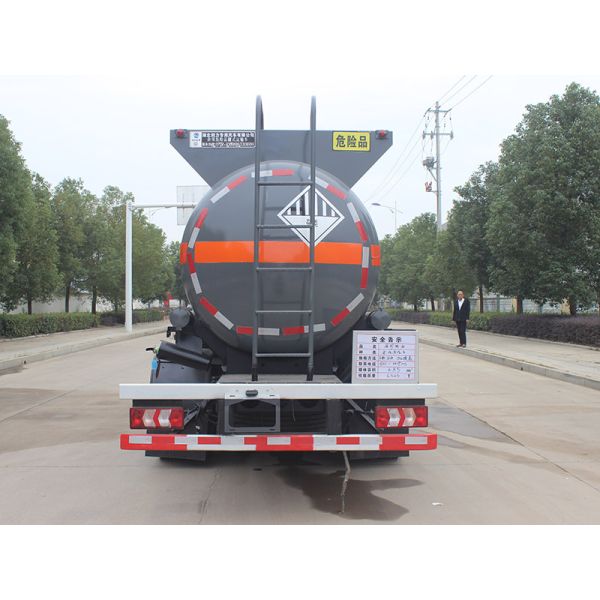

JAC Junling 7-ton miscellaneous dangerous goods tank transporter-parameter configuration table

product name

Runzhixing brand SCS5120GZWHFC6

Transport medium

Waste engine oil, waste acid and waste alkali

Tank volume

6.85 cubic meters

Total mass (Kg)

11920

Rated load mass (Kg)

6525

Curb quality (Kg)

5200

Number of passengers allowed in the cab (person)

three

Overall dimension (mm)

7000*2350*3050

* * Speed (Km/h)

80

Chassis model

HFC1120P31K5C6ZS

Production enterprise

Anhui Jianghuai Automobile Group Co., Ltd.

Wheelbase (mm)

3845

cab

Jianghuai junling

Engine model

D30TCIF2

Engine production enterprise

Kunming Yunnei Power Co., Ltd.

Displacement (ml)

2977

Power (Kw)/ horsepower (PS)

120/163

Emission basis standard

GB17691-2018 Country VI

gearbox

Xing Rui 6 gear

Front/rear axle tonnage

Tire type

245/75R19.5 vacuum tire

Safety device of hazardous chemicals vehicle

Tire puncture emergency safety device, vehicle forward collision pre-system, lane departure pre-system, ABS, speed limiter, front disc/rear drum brake and front exhaust pipe.

Chassis standard configuration

Central lock, original air conditioner, electric glass, air brake, air brake, power steering, clutch booster, air horn.

Top standard configuration

Medium: waste acid and waste alkali, the tank is lined with 16mm polyethylene, the top of the tank is provided with a steel-lined plastic inlet, the bottom of the tank is provided with a DN100 stainless steel-lined tetrafluoroethylene submarine valve, and the tail of the tank is provided with a DN80-lined plastic outlet on the left and right, and the top of the tank is treated with anti-corrosion.

Medium: waste engine oil, the tank body is made of carbon steel plate, and there is a gravity inlet at the left and right of the tank body.

Detailed parameters

1. Chassis standard: Jianghuai high-end Junling V7 cab, 3845mm wheelbase, Yunnedewei engine D30TCIF2(163 HP), Xingrui six-speed gearbox, air brake, 245/75R19.5 steel wire tire, front wheel, speed limit, ABS, driving recorder, tire explosion-proof device, brake pad reporting device and special chassis for hazardous chemicals.

2. As standard, the volume is 6.85 cubic meters.

Medium: waste acid and waste alkali, the tank is lined with 16mm polyethylene, the top of the tank is provided with a steel-lined plastic inlet, the bottom of the tank is provided with a DN100 stainless steel-lined tetrafluoroethylene submarine valve, and the tail of the tank is provided with a DN80-lined plastic outlet on the left and right, and the top of the tank is treated with anti-corrosion.

Medium: waste engine oil, the tank body is made of carbon steel plate, and there is a gravity inlet at the left and right of the tank body.

JAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel TypeJAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel TypeJAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel TypeJAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel TypeJAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel TypeJAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel TypeJAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel TypeJAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel TypeJAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel Type

Company Information

Introduction to our factory

Hubei Runli Special Automobile Co., Ltd is established on January 19th, 2009, and its registered capital is 5,000.00 million CNY. Our company is permitted by China Ministry of Industry and Information Technology to produce special automobile and hazardous chemicals tank body. Besides, our company is credited with such titles as “Little Giant for Specialized,Precise,Unique and Innovative Automobile Production”,“China High-tech Enterprise”,“Enterprise With Excellent Credit Standing (Hubei province, China)”,“Provincial Enterprise Technology Center (Hubei province, China)” and “Special Automobile Export Enterprise (Hubei province, China)”.

Our factory covers an area of 120000 square meters, and has the capacity of producing 5,000 special automobiles each year. There are 5 major types of products we concentrate on manufacturing – Hazardous chemicals transportation truck, sanitation truck(sprinkler truck,water tanker truck), tow truck, high-altitude operation truck and emergency relief truck.

Our company has passed the authentication below:

-Product quality: GB/T19001-2016(ISO 9001:2015)

-Environment protection: GB/T45001-2020/ISO45001-2018

-Worker health and safety protection: GB/T28001-2011/OHSAS18001:2007

-After-sale service: GB/T27922-2011(Chinese National Standard)

-AAA Enterprise Credit Rating Certification (Hubei province)

-CCC Certification (CCC is abbreviation of China Compulsory Certificate).

And the product qualification ratio of our company reaches 99.5%.

Moreover, our products have been exported to over 20 countries such as Philippine,Cambodia,Tanzania,Costa Rica,Bolivia,Chile,Republic of Columbia,Ethiopia,Venezuela, etc..

Our company holds the faith that “quality, credit standing, technology and full-process service” is key to serving customers and aims to provide high-quality special automobile to clients all over the world.

JAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel Type

JAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel Type

JAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel Type

JAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel Type

JAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel Type

JAC 7Ton Miscellaneous Dangerous Goods Tank Transporter Truck Diesel Fuel Type

Our Services

1.perfect and warmful services during all course including pre-sale ,selling,after-selling on technology instruction .

2.hot 24 hours call to be waiting for you

3.whatever we can serve for you as long as we can try our best

Packaging & Shipping

Packaging

- Naked or waxed.

-->Container (20GP, 40GP, 40HQ, 40FR).

-->Ro-Ro shipping.

-->Bulk ship.

-->Flat rack.

etc.

Shipping

- By sea or by rail, at customer request.

1. Warranty period: 1 year since our customer receives his products.

2. Necessary documents: Operation manuals and guiding videos.

3. Troubleshooting: If any questions about operation arises, contact us to resolve your problems.

FAQ

Q: Are you the original manufacturer?A: Yes,Runli is special truck manufacturers in China, we have the full range of products you need. Q: How is the quality of your products?A: We have more than 10 years experience in special truck line. All our trucks are carefully and strictly inspected and maintained by our skilled workers according to national and international standards, and we will test each piece of truck it works well before delivery. We guarantee good performance and high quality of every machine we deliver to our customers.

QQ:can your truck be customized?
Yes,we have a professional technical team and sales team.As you can image,we can do it.
:can your truck be customized?


Q: What is the price?A: We have our own factory and have many customers all over the world, we have the best price, we can give you lower price because we are the main source. Q: Will you provide after-sales service?Answer: Yes. Our new truck is guaranteed for 12 months, in addition to that, we have a professional after-sales service team to solve your problems thoroughly and promptly.
