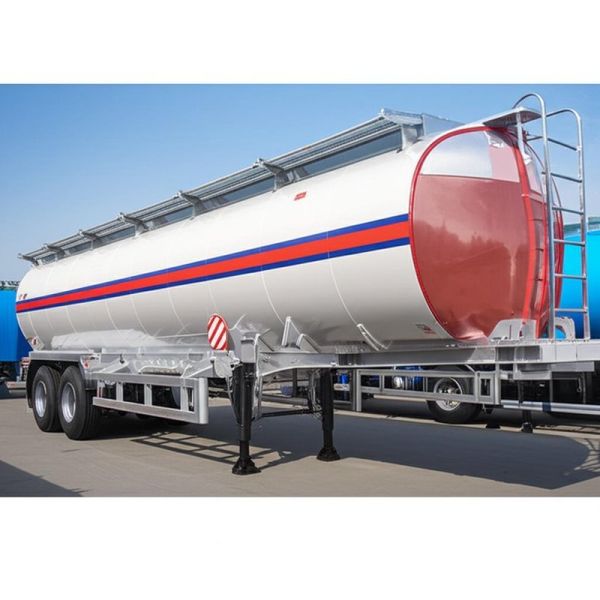

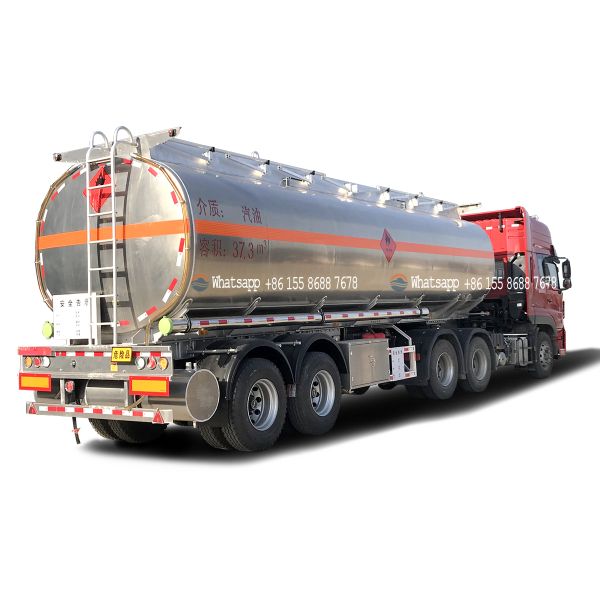

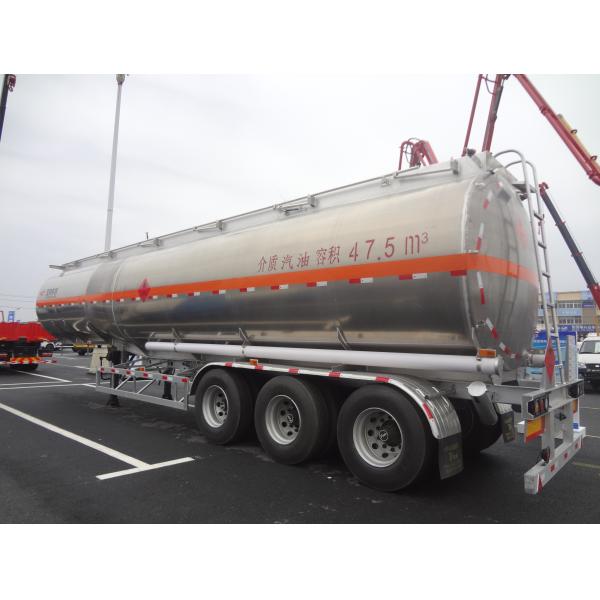

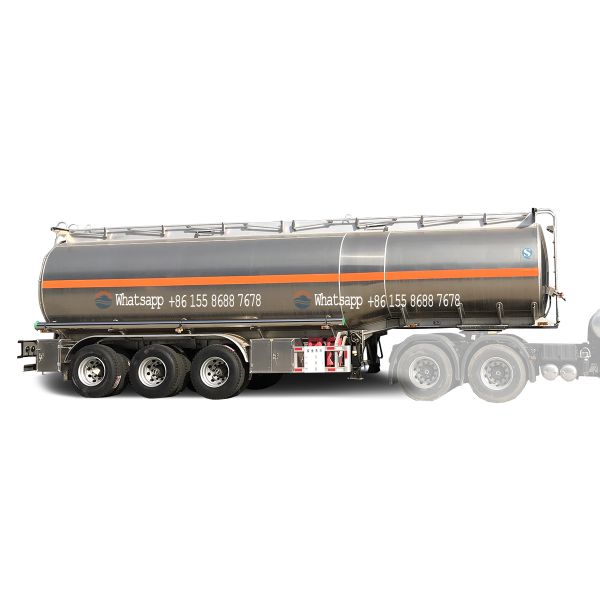

Model SCS9401GYY

Design

Design standards

GB18564.1-2006

Loading medium

Petrol

Loading and unloading methods

Bottom loading, unloading, and top direct charging

Vehicle size (mm)

11300×2500×3750

Total weight (kg)

40000

Curb weight (kg)

6800

Rated load capacity (kg)

33200

Tanker

Volume

38000L

Apartment

1. 9000L, 2. 8000L, 3. 4000L, 4. 9000L, 5. 8000L

Tank section

Class ellipse

Cylinder

Aluminum alloy 5182,6mm

head

Aluminum alloy 5182,6mm

breakwater

Aluminum alloy 5182,6mm

Pipeline and accessories

Manholes and quantity

European standard aluminum alloy explosion-proof manhole, 5 sets

Breather valve

Aluminum alloy material, 5 sets

Loading and unloading

Lower loading port

Oil and gas recovery

Equipped with an oil and gas recovery system

Prevent overflow

Equipped with anti overflow system

Safety bottom valve

Aluminum alloy 4-inch subsea valve

Discharge valve

Middle right side

Accessories

Tank top guardrail

Segmented lifting guardrail, anti-skid net on the top of the tank

Hose storage box

Stainless steel hose box, 1 piece on each side

Unloading hose

L=6000, 3-inch steel wire oil unloading pipe

Climbing ladder outside the tank

Internal ladder of the tank, external ladder

toolbox

aluminum alloy

Spare Tire Rack

1 piece

fender

Factory supplied aluminum alloy integral type (module stamping type)

Side guardrail

Factory supplied aluminum alloy profiles

rear bumper

Factory supplied aluminum alloy profiles

Fire protection device

8kg fire extinguisher, 2 pieces in total

Anti static device

1 static conductive drag belt and 1 static conductive terminal block

Underframe section

axle

FUWA 13 ton drum brake shaft

Overhang

8-piece steel plate spring suspension

tire

Factory equipped mountain 12R22.5

Steel ring

9.0 steel rings, 12 pieces (Aluminum alloy steel ring)

Lift leg support

Yangzhou 28T single action

traction pin

90 # prefabricated

Electric

lamps and lanterns

24V system, 7-pin socket, LED lighting

Circuit system

Explosion-proof junction box

The rear bumper is equipped with turn signals, brake lights, reverse lights, driving lights, and fog lights on both sides

Wire

All wires are sealed with corrugated tubes

Brake syestem

Relay Valve

Factory logo

ABS

Factory logo

other

Factory logo

Anti corrosion protection

Surface inside the tank

clean

paint

Aluminum alloy natural color

External treatment of tank body

Mirror polishing

Label

nameplate

Factory logo

Customer Standard

Made according to customer requirements

sign

Factory logo, diamond shaped and square shaped notices

Main identification of tank body

Orange reflective tape, both sides and tail of the tank

Red and white reflective stickers

3M reflective sticker

Company Logo

SCS

Doc/Tools

Tank inspection report

Tank Inspection Report

certificate

Vehicle Qualification Certificate

tools

a set
