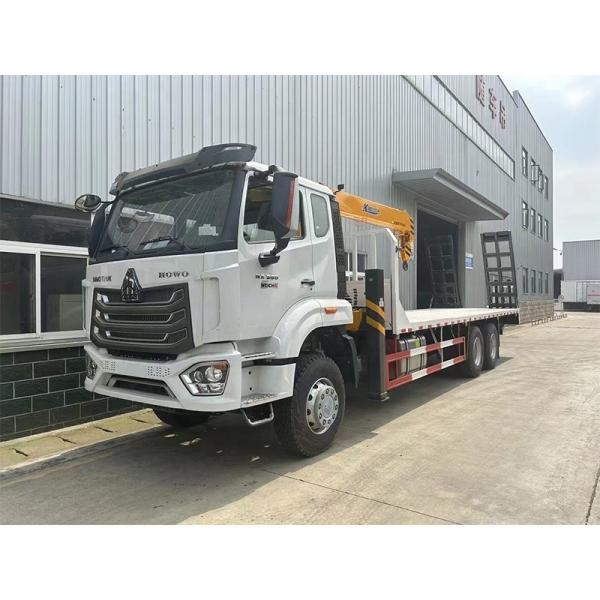

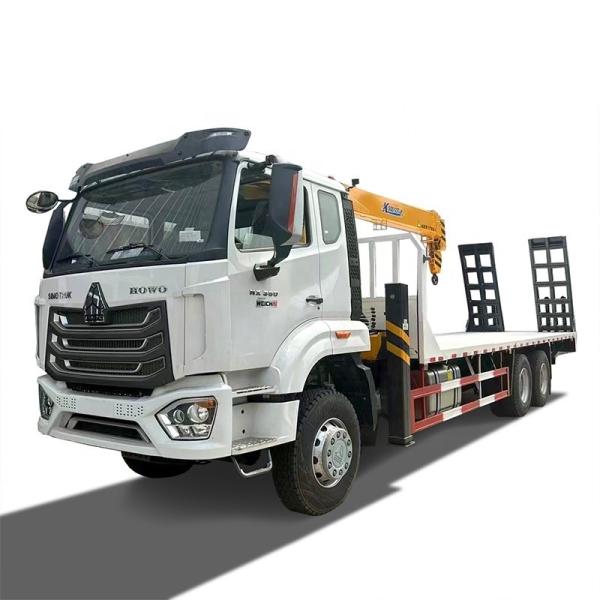

Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Specifications
Condition :
New
Steering :
Left
Emission Standard :
Euro 2
Brand Name :
SINOTRUCK
Place of Origin :
Hubei, China
Segement :
Medium-sized truck
Market Segement :
Logistics transportation
Engine Brand :
WEICHAI
Fuel Type :
Diesel
Engine Capacity :
4 - 6L
Cylinders :
6
Horsepower :
150 - 250hp
Gear Box Brand :
SINOTRUCK
Transmission Type :
Manual
Forward Shift Number :
8
Reverse Shift Number :
1
Maximum Torque(Nm) :
500-1000Nm
Size :
12000*2550*3000
Cargo Tank Dimension :
5300mm*2300mm
Cargo Tank length :
6.2-8m
Cargo Tank Type :
Column plate
Gross Vehicle Weight :
10001-15000 kg
Capacity (Load) :
11 - 20T
Fuel Tank Capacity :
100-200L
Drive Wheel :
6x4
Passengers :
3
Driver's Seat :
Normal
Seat Rows :
Single row
Rear Camera :
Camera
Cruise Control :
None
ABS(Antilock Braking System) :
None
ESC(Electronic Stability Control System) :
None
Touch Screen :
None
Multimedia System :
Yes
Window :
Automatic
Air Conditioner :
Manual
Tire Number :
10
After-sales Service Provided :
Video technical support, Return and Replacement, Online support
color :
optional
Brand :
Accepted
Feature: Truck Crane :
10ton Mounted Truck Crane
Product name :
Telescoping Boom
Crane type :
Truck Crane Mobile Crane Hydraulic Crane
Chassis brand :
Sino Truck Howo
Driving type :
6*4
Hydraulic parts :
Telescopic Boom Mobile Crane Made
Variable box model :
Fast 8 Speed Transmission High
Type of Winch the Crane Can Match :
Hand Operated Winch
Price :
CN¥201,447.31/sets >=1 sets
Description
Our Products
Dimension(Lx W xH)（unloaded）（mm）
12000×2496×3550
Cargo body size(Lx W xH) （mm）
8000*2300*550，bottom 4mm side 2mm
Max speed（km/h）
90
Engine
(Steyr technology, made in China)
Model
WP10.340E22，water-cooled，four strokes，6 cylinders in line with water cooling，turbocharged and intercooling, directly injection
Fuel type
Diesel
Power,max（kw/rpm）
340hp
Emission
Euro 2
Fuel tanker capacity（L）
400
Transmission
Model
HW19710，10 forward&2 reverse
Brake system
Service brake
Dual circuit compressed air brake
Parking brake
spring energy, compressed air operating on rear wheels
Steering system
Model
ZF8118
Front axle
VGD75 （drum）
Rear axle
MCX16ZG (drum)
Tyre
12R22.5
Electrical system
Battery
2X12V/165Ah
Alternator
28V-1500kw
Starter
7.5Kw/24V
Cab
HOWO V7 cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds,
laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s
seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety
belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Flat deck system
5300mm*2300mm working deck
5mm checkered plate
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
Direct Factory SINOTRUK HOWO 6x4 20 Tons Flat Bed Truck Mounted 10 Tons Crane
More information,please contact with Oversea Market Sales Manager:
More specs , photos, price, delivery time and other need,
please contact with Kilen.
Hotline/Whatspp/Wechat: 0086 155 8688 7678
QQ number: 676459215
Welcome to visit our company! Suizhou city, Hubei Province
