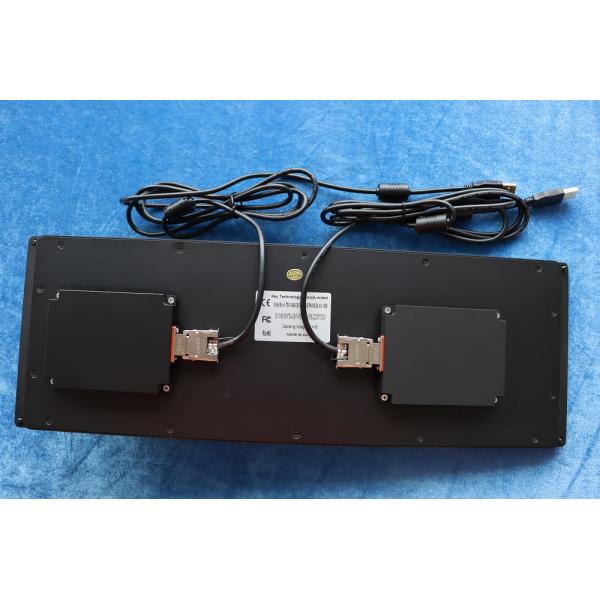

EMC USB Rugged Military Backlight Keyboard 87 Keys With Stroke 1.50mm
EMC USB Rugged Military Backlight Keyboard 87 Keys With Stroke 1.50mm
EMC USB Rugged Military Backlight Keyboard 87 Keys With Stroke 1.50mm
EMC USB Rugged Military Backlight Keyboard 87 Keys With Stroke 1.50mm
EMC USB Rugged Military Backlight Keyboard 87 Keys With Stroke 1.50mm
EMC USB Rugged Military Backlight Keyboard 87 Keys With Stroke 1.50mm
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M465-38-MTB-AVB-FN-MS-BL-NV-151B
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Price :
To be quoted
Keycap :
Durable Polymer keys
Material :
aluminum alloy
Interface :
USB
Touchpad :
Yes
trackball :
optional
Backlit :
White
Description
DESCRIPTION:
87 keys IP67 dynamic sealed & ruggedized silicone rubber military keyboard, 12 FN function keys (F1, F2...F11, F12) on the top line for easy operation, integrated with a conventional handheld mouse with middle wheel, left/right buttons as well as a IP52 rated 38mm mechanical trackball mouse with 400DPI resolution for fast cursor moving, military PCB with membrane key switch technology with 1.2mm key stroke with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface treatment withstand to most chemicals and liquids under harsh environment, FN+ CLEAN combination keys for easy cleaning via locking/disable the entire keyboard without taking away the keyboard from PC, the electronics controller module is shielded and protected by aluminum housing, with four sinking holes for panel mount to user's device. Adjustable white backlight included. Design to meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) & MIL-STD-810F (wide temperature, shock, vibration,humidity etc.)
DIMENSIONS: 465.0mm x 160.0mm (Front Panel)

MECHANICAL DATA:

Key top style: Protuberant rectangular keys with tactile feeling
Keys
87 keys, durable and robust polymer keys
Key travel: 1.50mm
Actuation Force: 1.8N+/-0.1N for key 12.5mm x 12.5mm (pressure point )
Switch life: More than 5 million of operations.
Dimensions
465.0mm x 160.0mm ( L XW )
G.W.
3.0KGs
Supply Voltage
+5V DC +/-5%
Output :
Aviation plug or USB
Tracking Speed: Maximum 1,016 m/sec
Power supply voltage: 5VDC ± 0.25V
Current rating(active mode) : 250 mA
EMC Standard
EN 55032:2015, EN 55035:2017
OS: Windows, Linux, Unix, Mac OSX, Vxworks, Android

ENVIRONMENTAL ADAPTABILITY :
  • Operating temperature: -40℃ to +60℃
  • Storage temperature: -45℃ to +70℃
  • Operating RH: 30-90%
  • Atmospheric pressure: 60-106Kpa.
  • Saline mist: 96 hours, IEC 60512-6
  • Damp heat test at + 40oC: 21 days, IEC 60512-6
  • Dry heat test at + 85oC: 10 days, IEC 60512-6
  • RoHS Compliant, CE and FCC
  • Protection Level: keyboard IP67 + trackball IP52
  • Key Lifespan >5 million actuation
  • MTBF >20000H
  • MTTR <30min
