Marine Keyboard Military Black Ruggedized keys with Trackball
Marine Keyboard Military Black Ruggedized keys with Trackball
Marine Keyboard Military Black Ruggedized keys with Trackball
Marine Keyboard Military Black Ruggedized keys with Trackball
Marine Keyboard Military Black Ruggedized keys with Trackball
Marine Keyboard Military Black Ruggedized keys with Trackball
Marine Keyboard Military Black Ruggedized keys with Trackball
Marine Keyboard Military Black Ruggedized keys with Trackball
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-M390-MTB-AVB-FN-BL-BT-NV-151B-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Keycap :
Durable Polymer keys
Material :
Polymer
Interface :
PS2, USB
Trackball :
Yes
Backlit :
Red /White Optional
Name :
Rugged Military Keyboard
Description

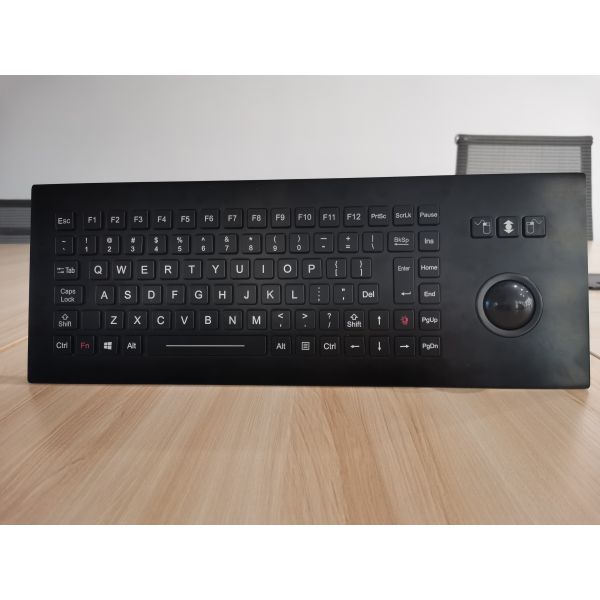

Military Level Marine Keyboard Industrial Metal With Trackball

DESCRIPTION:92 keys compact format IP67 dynamic water proof vandal proof stainless steel military keyboard with durable polymer keys, with IP54 38mm mechanical trackball module with 400DPI resolutions, with 12 function keys F1, F2, ... F12, sealed and ruggedized Military grade PCB with carbon-on-gold key switch technology with long stroke 1.20mm with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium electroplated on the top stainless steel plate, one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet, front panel with thread bolts for top panel mounting. Adjustable backlight included ( Blue,White,Red etc). The whole keyboard and trackball part can meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) & MIL-STD-810F (wide temperature, shock, vibration, humidity etc.) Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

CHANICAL DATA:

Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available
Key Size:
13.5mm x 13.5mm for normal keys, 13.5mm x 31.5mm for enter key, 13.5mm x 85.5mm for space bar.
Key travel: 1.50mm
Actuation Force:
1.80 N+/-0.1N for key 13.5mm x 13.5mm (pressure point ), 2.5 N+/-0.10N for key 13.5mm x 31.5mm (pressure point)
Switch life: More than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate: 1.2mm thickness super quality brushed stainless steel
Trackball
38mm (1.5') diameter mechanical trackball
G.W.
 2.5KGs
Dimensions
390.0mm x 145.0mm (front panel)
Output : PS2 or USB
Tracking Speed: Maximum 1,016 m/sec
Power supply voltage: 5VDC ± 0.25V
Current rating(active mode) : 17 mA
G.W.: 1.80KGs
OS: Windows, Linux, Unix, Mac OSX, Vxworks, Android

ENVIRONMENTAL ADAPTABILITY :
  • Operating temperature: -40℃ to +85℃
  • Storage temperature: -45℃ to +90℃
  • Operating RH: 30-90%
  • Atmospheric pressure: 60-106Kpa.
  • Saline mist: 96 hours, IEC 60512-6
  • Damp heat test at + 40oC: 21 days, IEC 60512-6
  • Dry heat test at + 85oC: 10 days, IEC 60512-6

Dimension: 390.0mm x 145.0mm (front panel)

RELIABILITY :

  • RoHS Compliant, CE and FCC, ESD
  • Protection Level: IP67 without including the bottom side
  • Vandal resistant IK09
  • Key Lifespan >5 million actuation
  • MTBF >20000H
  • MTTR <30min

Marine Keyboard Military Black Ruggedized keys with Trackball

Marine Keyboard Military Black Ruggedized keys with Trackball

Marine Keyboard Military Black Ruggedized keys with Trackball

Marine Keyboard Military Black Ruggedized keys with TrackballMarine Keyboard Military Black Ruggedized keys with Trackball
