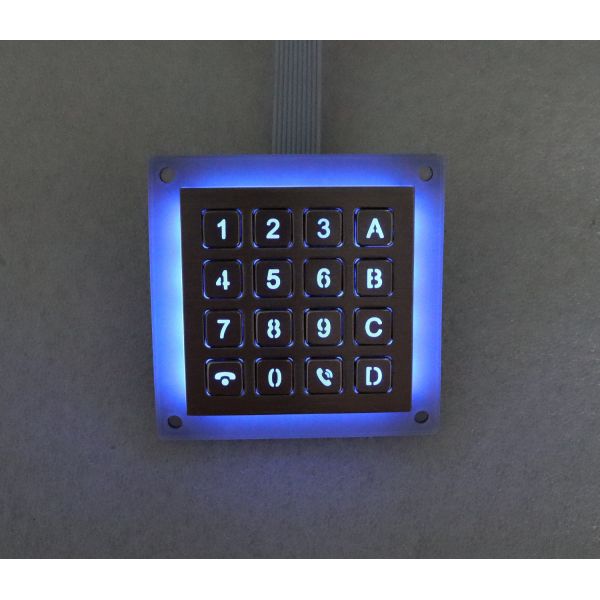

16 Keys Matrix Interface Metal Keypad Backlit SS Rugged Numeric Keypad For Kiosk
16 Keys Matrix Interface Metal Keypad Backlit SS Rugged Numeric Keypad For Kiosk
16 Keys Matrix Interface Metal Keypad Backlit SS Rugged Numeric Keypad For Kiosk
16 Keys Matrix Interface Metal Keypad Backlit SS Rugged Numeric Keypad For Kiosk
16 Keys Matrix Interface Metal Keypad Backlit SS Rugged Numeric Keypad For Kiosk
16 Keys Matrix Interface Metal Keypad Backlit SS Rugged Numeric Keypad For Kiosk
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B60KP-16-AC-BL-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2-3 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
keys :
16 keys
Key Size :
10.0mm x 10.0mm for normal keys
Key travel :
0.45mm
Switch life :
more than 5 million of operations.
Protection Level :
IP67 (front panel)
Vandal resistant :
K09
Name :
metal keypad
Description
16 Keys Matrix Interface Metal Keypad Backlit Numeric Stainless Steel Keypad For Kiosk
DESCRIPTION: 16 keys compact format IP67 dynamic water proof and vandal proof and Stainless Steel industrial keypad with dot matrix circuit with socket on the back panel of PCB for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or panel.Industrial Backlight (red/blue/white/green optional) included. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 60.0mm × 60.0mm (front panel)
APPLICATION:
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications,internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc..
METAL KEYPAD ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 150mA
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: Dot matrix, PS2, USB, RS232, RS485 available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
MECHANICAL DATA
Actuator/keys: 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 10.0mm x 10.0mm for normal keys
Key travel: 0.45mm
Actuation Force: 3.2N+/-0.1N for key 10.0mm x 10.0mm (pressure point)
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Stainless steel housing: 1.5mm thickness super quality stainless steel
G.W.: 0.40KGs
Dimensions: 60.0mm x 60.0mm (L x W)
ENVIRONMENTAL ADAPTABILITY
Operating temperature: -20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK09
Key Lifespan >1 million actuation
MTBF >20000H
MTTR < 30min

16 Keys Matrix Interface Metal Keypad Backlit SS Rugged Numeric Keypad For Kiosk

16 Keys Matrix Interface Metal Keypad Backlit SS Rugged Numeric Keypad For Kiosk

16 Keys Matrix Interface Metal Keypad Backlit SS Rugged Numeric Keypad For Kiosk
