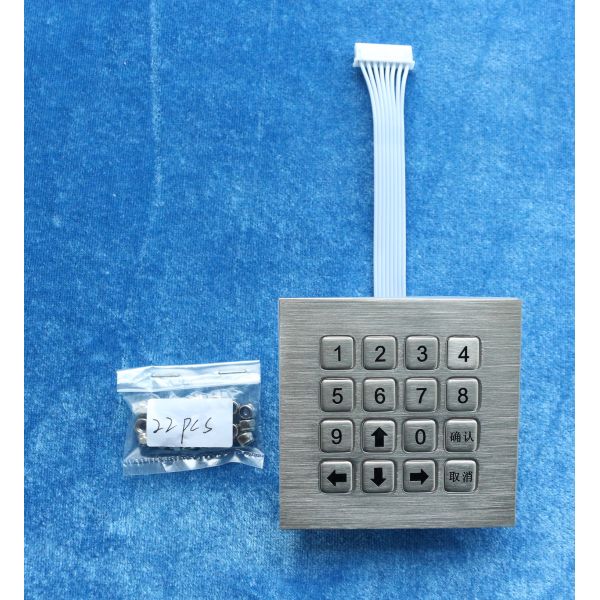

16 Keys Stainless Steel Keypad IP67 Dynamic Washable Vandal Resistant Keypad
16 Keys Stainless Steel Keypad IP67 Dynamic Washable Vandal Resistant Keypad
16 Keys Stainless Steel Keypad IP67 Dynamic Washable Vandal Resistant Keypad
16 Keys Stainless Steel Keypad IP67 Dynamic Washable Vandal Resistant Keypad
Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B75KP-AC-DWP
Certification :
CE, FCC, ROHS, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Stainless Steel
Dimensions :
75.0mm × 73.0mm (front panel)
backlight :
no
Key travel :
0.45mm
Key :
16 keys
G.W. :
0.4KGs
MOQ :
1 pieces
Description

Dynamic IP67 Vandal Proof Keypad Waterproof Rugged Metal Keypad Stainless Steel

Sepcial Features:16 keys IP67 dynamic washable vandal proof stainless steel industrial Compact Format Numeric keypad with dot matrix circuit with socket on the back panel of PCB for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, top stainless steel plate with threaded bolt and sealing gasket for easy tightly mounting to enclosure or panel. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 73.0mm × 75.0mm (front panel)

MECHANICAL DATA:

Key 16 keys
Key top style

Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available.

Key Size

10.0mm x 10.0mm for normal keys
Switch life more than 1 million of operations.

Key Size

1.5mm thickness super quality brushed stainless steel ​
G.W.

0.40KGs
Packing standard

16 Keys Stainless Steel Keypad IP67 Dynamic Washable Vandal Resistant Keypad

16 Keys Stainless Steel Keypad IP67 Dynamic Washable Vandal Resistant Keypad


ENVIRONMENTAL ADAPTABILITY

· Operating temperature:-20oC to +60oC

· Storage temperature: -30oC to +70oC

· Operating RH: 30-90%

· Atmospheric pressure: 60-106Kpa.

· Saline mist: 96 hours, IEC 60512-6

· Damp heat test at + 40oC: 21 days, IEC 60512-6

· Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

· RoHS Compliant, CE and FCC, ESD

· Protection Level: IP67(front panel)

· Vandal resistant IK09

· Key Lifespan >1 million actuations

· MTBF > 20000H

· MTTR < 30min

16 Keys Stainless Steel Keypad IP67 Dynamic Washable Vandal Resistant Keypad

16 Keys Stainless Steel Keypad IP67 Dynamic Washable Vandal Resistant Keypad

16 Keys Stainless Steel Keypad IP67 Dynamic Washable Vandal Resistant Keypad
