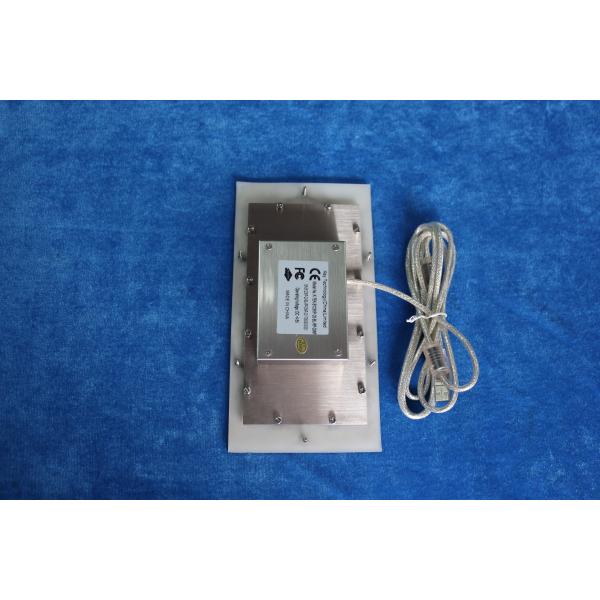

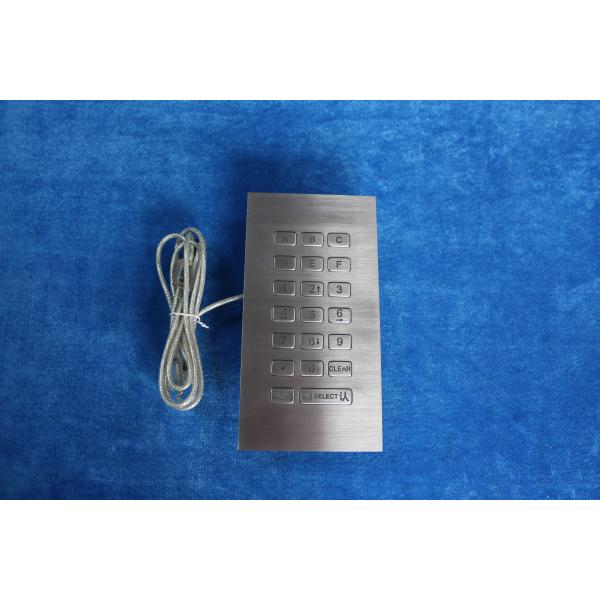

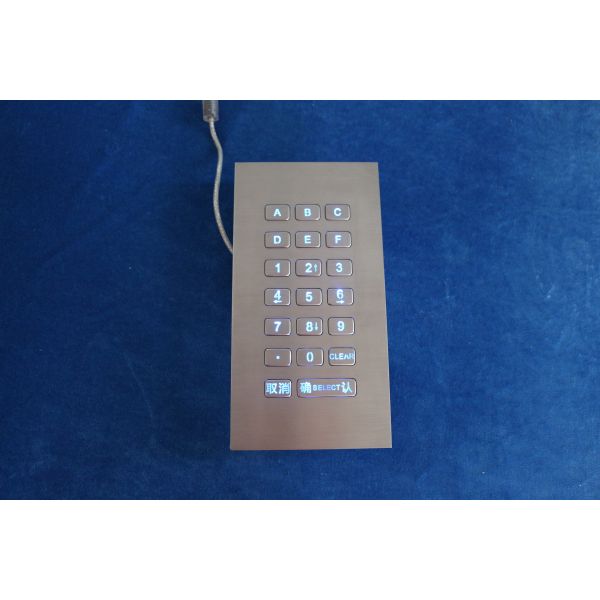

Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad
Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad
Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad
Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad
Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad
Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad
Specifications
Brand Name :
IKB-MKB
Model Number :
B123KP-20-BL-DWP
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
To be quoted
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2-3 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Panel mounting :
Top panel mounting
Keys :
20 keys
Backlit :
Red/blue/white/green optional
Material :
stainless steel
DIMENSIONS: :
123.0mm x 237.0mm (front panel)
Interface:: :
PS2, USB, RS232, RS485 available
Description

Stainless Steel Backlight Key Pad 20 Buttons Metal Numeric Keypad

DESCRIPTION: 20 keys compact format IP67 dynamic water proof and vandal proof Stainless Steel industrial keypad with industrial electronics controller shielded and protected via stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled

with transparent epoxy for backlight out, with industrial backlight included(Red/blue/white/green optional),top stainless steel plate with welded studs and water-tigth gasket for easy mounting and tightening to enclosure or panel with top panel mounting solution.Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 123.0mm x 237.0mm (front panel)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 150mA
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
MECHANICAL DATA
Front plate: Super quality SUS304 brushed stainless steel
Back plate: Super quality SUS304 stainless steel
Actuator/Key: 20 keys, super quality SUS304 brushed stainless steel
Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
Key size: 14.0mm x 21.0mm for normal key, 14.0mm x 46.0mm for enter key.
Switching material: Gold-on-Gold.
Actuation Force: 4.0N+/-0.1N for key 14.0mm x 21.0mm (pressure point)
Key Travel: 0.45mm.
Key life: more than 1 million of operations
Dimensions: 123.0mm x 237.0mm.
G.W. 0.8kg.
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
ROHS Compliant, CE and FCC, ESD
Protection Level: IP67 (front panel)
Vandal resistant IK09
Key Lifespan > 1 million actuations
MTBF > 20000H
MTTR < 30min
APPLICATION
This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad
Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad
Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad
Backlight Stainless Steel Keypad 20 Buttons Metal Numeric Keypad
