Specifications
Brand Name :
IKB-MKB
Model Number :
K-TEK-B139KP-AC(24)
Certification :
CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
Full payment in advance, Western Union, T/T, Paypal
Supply Ability :
3000psc/month
Delivery Time :
ASAP Within 2 weeks upon payment confirmed
Packaging Details :
Each keyboard to one box, several boxes to one carton.
Material :
Metal Stainless steel
Colour :
Brushed stainless steel
Key Travel :
0.45 mm short stroke
Interface :
Dot matrix
Key number :
24 keys
Dimension :
139.0mm x 98.0mm
Description

IP65 24 keys dot matrix industrial stainless steel keypad for kiosk

Main features:

1.Dot matric long stroke metal programmble keypad available

2.24 -Keys explosion proof IP65 dynamic Stainless Steel matrix keypad

3.USB or PS/2 interface with electronic controller included optional

4.Industrial metal dome PCB with gold-on-gold key switch technology

5.Any customized layout and keycode welcomed without any additional charge

6. top stainless steel plate with welded studs for top panel mounted.

Applications:

This inudstrial function keypad is mainly targeted for use for:

A: unsupervised or semi -supervised positions of varied access applications,

B: internet terminals and information kiosks at universities,

C: shopping malls, hotels, airports, railway stations and other public areas,

D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

MECHANICAL DATA

Switching material

gold-on-Gold key switch technology with metal dome PCB

Actuation Force

2.0N+/-0.1N (pressure point)

Key travel

0.45mm

Lettering

laser engraving, or raised letters

Front pane

brushed stainless steel

Actuator/keys materials

stainless steel.

Dimensions

139.0mm x 98.0mm

G.W.

0.50KG.

ELECTRICAL DATA

Power supply voltage

5V DC

Power Consumption

Under 150mW for operation, under 50.0mW for non-operation

Electrical lifetime

> 5 years

EMC standard

It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004

Communication interface

Pin socket output, PS2, USB or RS232 are all available.

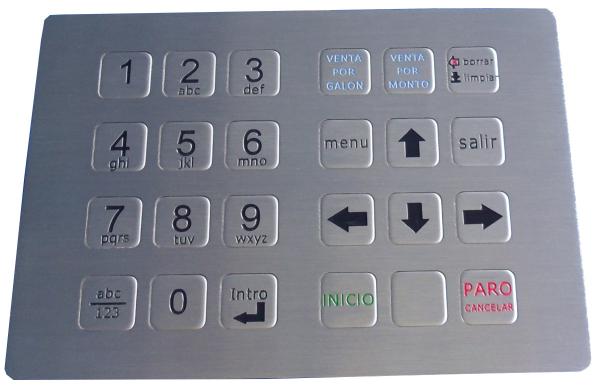

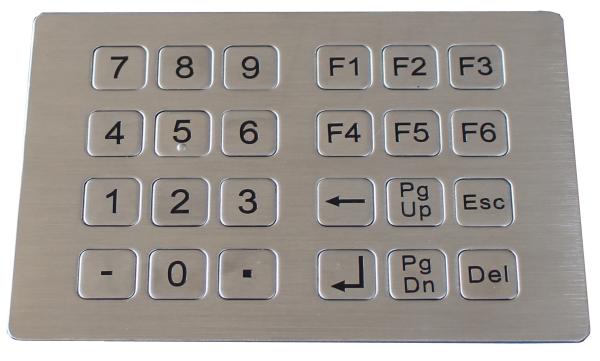

Actual Photos:

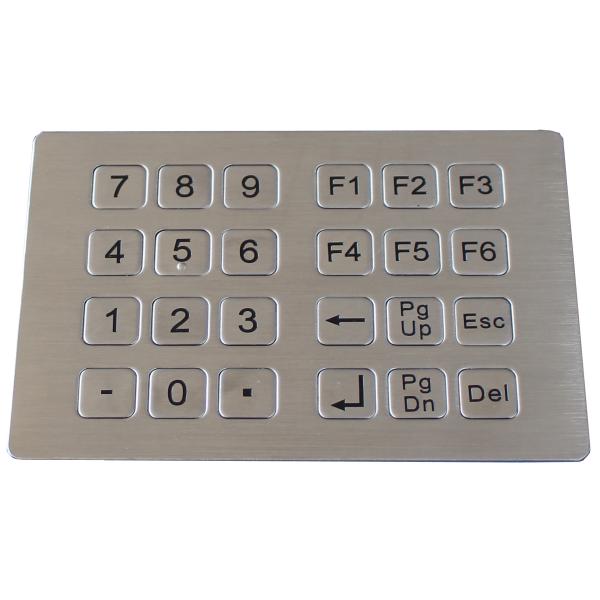

Stainless steel metal keypad for kiosk

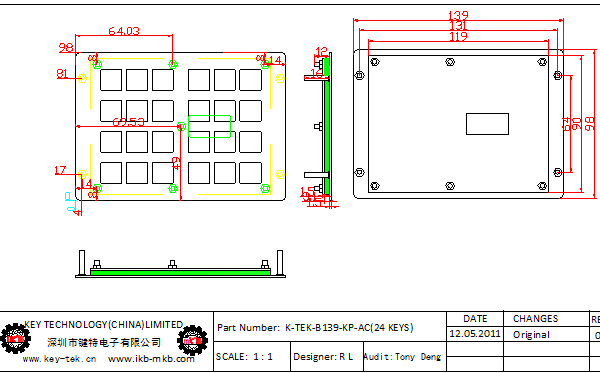

Mechnical Drawing:

Stainless steel metal keypad for kiosk
