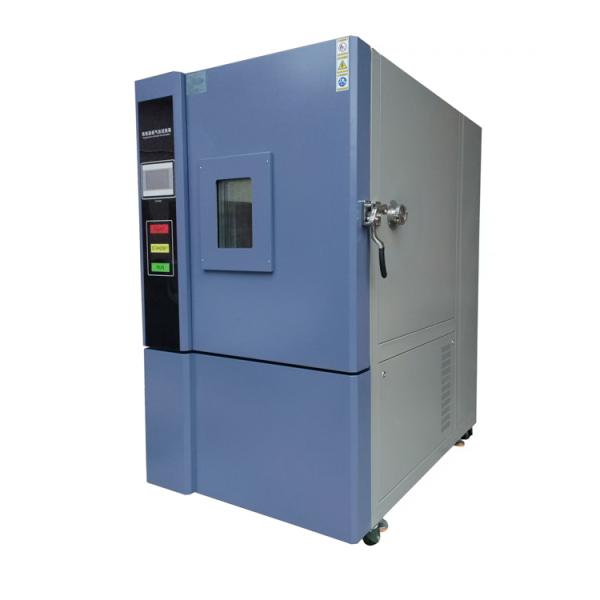

IEC 60068 MIL STD 810H Altitude Climate Controlled Test Chamber Low Pressure
IEC 60068 MIL STD 810H Altitude Climate Controlled Test Chamber Low Pressure
IEC 60068 MIL STD 810H Altitude Climate Controlled Test Chamber Low Pressure
IEC 60068 MIL STD 810H Altitude Climate Controlled Test Chamber Low Pressure
Specifications
Brand Name :
ZL
Model Number :
ZL-6040
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
60 Sets
Delivery Time :
15-20 work days
Packaging Details :
IEC 60068 MIL STD 810H Altitude Low Pressure Climate Controlled Test Chamber is packaged within wooden case.
Product name :
IEC 60068 MIL STD 810H Altitude Low Pressure Climate Controlled Test Chamber
Model :
ZL-6040
Temperature range :
-70℃ ~ +150℃
Control stability :
Temperature ≤±0.5℃; Humidity ≤±2
Distribution uniformity :
Temperature ≤±1.5℃
Warming time :
3°C/min, non-linear no-load temperature rise (temperature rise range: -40°C ~ +60°C)
Cooling time :
3℃/min, non-linear no-load cooling (cooling range: +60℃~-40℃)
Temperature limit :
Maximum temperature +150°C; minimum temperature -70°C
Certificate :
CE
Description
IEC 60068 MIL STD 810H Altitude Climate Controlled Test Chamber Low Pressure
Product Overview
This IEC 60068 MIL STD 810H compliant altitude low pressure climate controlled test chamber is designed for precision environmental testing under controlled low-pressure conditions.
Specimen Restrictions
This test equipment is prohibited for:
  • Testing and storage of flammable, explosive, and volatile substances
  • Testing and storage of corrosive substances
  • Testing or storage of biological specimens
  • Testing and storage of specimens with strong electromagnetic emission sources
Chamber Dimensions
Nominal Volume 75L
Inner Box Size W500 * H500 * D300 mm
Overall Dimensions W1160 * H1650 * D1470 mm (excluding raised removable part)
Note Actual design drawings shall prevail
Performance Specifications
Test Environment Conditions Ambient temperature: 5~35℃, Relative humidity: ≤85%RH
Test Method Performance parameters tested according to GB/T 5170.10-2017
Temperature Range -70℃ to +150℃
Temperature Fluctuation ±0.5℃ (atmospheric pressure when unloaded)
Temperature Deviation ±2℃ (atmospheric pressure when unloaded)
Temperature Uniformity ≤2℃ (at atmospheric pressure unloaded)
Humidity Range 20% to 98% R.H. (temperature between 25℃ and 85℃, refer to humidity control range chart)
Humidity Fluctuation ≤±2% R.H.
Humidity Deviation ±3% RH (when humidity >75% RH); ±5.0% RH (when humidity ≤75% RH)
