Specifications
Brand Name :
ZL
Model Number :
ZL-4001
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
2800-3500
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 sets / month
Delivery Time :
7-14 work days
Packaging Details :
Conveyor Belt Food Metal Detection Machine is packaged within wooden case.
Product name :
Food Processing Metal Detector Conveyor Belt Metal Detector for Industry
Size :
100-120-150-200-250-300-350-400-customize
FE Sensitivity :
0.6-3.0-customize
Non-Fe Sensitivity :
1.2-3.5-customize
SUS Sensitivity :
1.5-4.0-customize
Speed :
10-30 m/min optional (default constant speed)
Machine Weight :
About 200～250KG
Certificate :
CE
Description

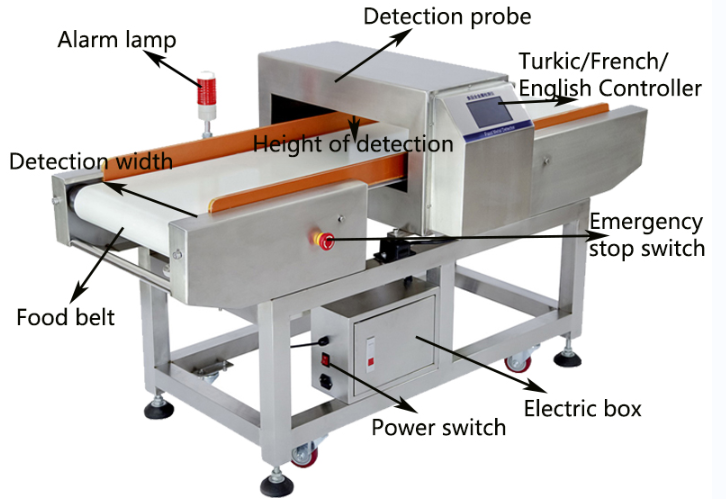

Food Processing Metal Detector Conveyor Belt System
This high-precision metal detector is engineered to detect all metal foreign objects in industrial processing environments. Designed in compliance with European and American safety standards, the machine meets food machinery requirements and integrates seamlessly with assembly line inspection operations.
Industry Applications
Suitable for detecting metal impurities in various products and raw materials during production and processing across multiple industries:
  • Food processing and packaging
  • Pharmaceutical manufacturing
  • Toys, clothing, and footwear production
  • Chemical industry applications
  • Leather and knitting manufacturing
Detects both ferrous and non-ferrous metals including iron, copper, aluminum, stainless steel, and other common metallic contaminants.
Technical Specifications
Model Configuration
SIZE ZL-4001B
Available Models 4010 | 4012 | 4015 | 4020 | 4025 | 4030 | 4035 | 4040
Detection Width 400mm (Other widths can be customized)
Detection Height 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400mm
Detection Sensitivity
Material Type Sensitivity (Ф mm)
FE (Ferrous Metals) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Non-Fe (Non-Ferrous) ≥1.2 | ≥1.2 | ≥1.5 | ≥1.8 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5
SUS (Stainless Steel) ≥1.5 | ≥1.8 | ≥2.0 | ≥2.3 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0
Operating Specifications
Alarm Method Automatic shutdown with 12V buzzer alarm and rewind function when metal detected
Machine Size 1330*720*1000mm (L*W*H) - customizable to actual requirements
Belt Material Food grade PVC Belt (Food grade PU Belt available for direct food contact)
Speed 10-30 m/min optional (default constant speed)
Machine Weight Approximately 200-250KG
Power Requirements 220V 50Hz, 120W (customizable)
Load Capacity Within 20KG (customizable)
Belt Height from Ground 700mm (other heights customizable)
Advanced Features
  • Storage Function: 99 product profiles with 990,000 data points capacity
  • Optional 7-inch touch screen with USB interface for data export
  • Optional rejection systems: duplicates, push rods, and air blow mechanisms
Note: Sensitivity parameters are approximate values from empty machine testing. Actual test parameters may vary depending on the specific test object and operating conditions.
