Specifications
Brand Name :
ZL
Model Number :
ZL-4001
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
2800-3500
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 sets / month
Delivery Time :
7-14 work days
Packaging Details :
Metal Detector for Food Processing Industry, Metal Detector for Meat Industry is packaged within wooden case.
Product name :
Metal Detector for Food Processing Industry, Metal Detector for Meat Industry
Size :
100-120-150-200-250-300-350-400-customize
FE Sensitivity :
0.6-3.0-customize
Non-Fe Sensitivity :
1.2-3.5-customize
SUS Sensitivity :
1.5-4.0-customize
Speed :
10-30 m/min optional (default constant speed)
Machine Weight :
About 200～250KG
Certificate :
CE
Description

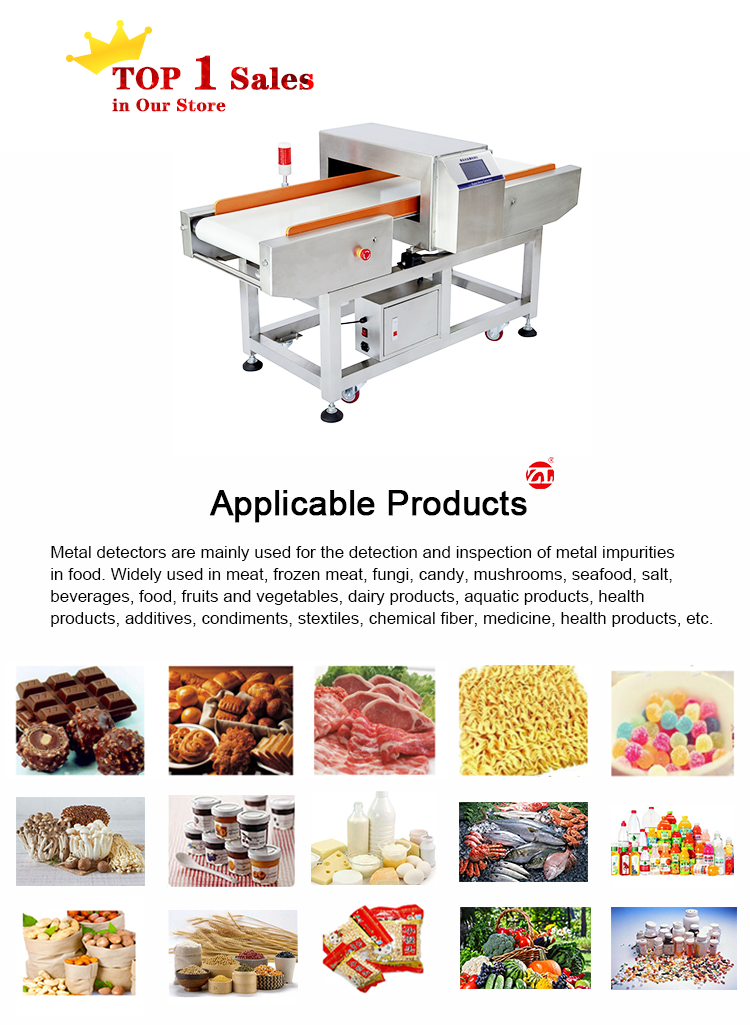

Metal Detector for Food Processing & Meat Industry
Food metal detectors are essential equipment for industries including sauces, sausages, dumplings, ham, soup bases, candies, preserved foods, salted foods, fast food, food additives, starch, glucose, tobacco, fresh meat, and dairy products. These systems are specifically designed for products with strong product effects and industries requiring exceptional detection sensitivity, anti-interference capability, and waterproofing.
Our metal detectors effectively identify various metal contaminants such as broken needles, iron wires, lead, copper, aluminum, tin, and stainless steel that may be mixed in or lost within food, raw materials, or finished products.
Operation & Design
During operation, a gantry metal detector system is employed. Items to be inspected are passed through the detector via conveyor belt to complete the detection process. This integrated design represents our standard product configuration.
Metal Detector for Food Processing Industry, Metal Detector for Meat Industry
Technical Specifications
Parameter ZL-4001B Series
Detection Width 400mm (Other widths can be customized)
Detection Height Options 100mm | 120mm | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm
Sensitivity - FE (Ф mm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Sensitivity - Non-Fe (Ф mm) ≥1.2 | ≥1.2 | ≥1.5 | ≥1.8 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5
Sensitivity - SUS (Ф mm) ≥1.5 | ≥1.8 | ≥2.0 | ≥2.3 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0
Alarm Method Automatic shutdown when metal detected with 12V buzzer alarm and rewind function
Machine Size 1330*720*1000mm (L*W*H) - Custom sizes available
Belt Material Food grade PVC Belt (Food grade PU Belt available for direct food contact)
Speed 10-30 m/min optional (default constant speed)
Machine Weight Approximately 200-250KG
Power 220V 50Hz, 120W (customizable)
Load Capacity Within 20KG (customizable)
Height from ground to belt 700mm (other heights customizable)
Storage Function 99 products, 990,000 data points
Optional Features
  • 7-inch touch screen with USB interface for data export
  • Multiple rejection options: duplicates, push rods, and air blows
Sensitivity parameters represent approximate values from empty machine tests. Actual test parameters may vary depending on the specific test object.
Metal Detector for Food Processing Industry, Metal Detector for Meat Industry
