Specifications
Brand Name :
ZL
Model Number :
ZL-5017
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
100 set per month
Delivery Time :
3-7 days
Packaging Details :
Fabric Moisture Permeability Textile Testing Machine With Computer Control is Packaged within wooden case
Payment Terms :
L/C, T/T, Western Union, D/A
Product name :
Fabric Moisture Permeability Textile Testing Machine With Computer Control
Power :
220v 50hz
Testing box temp. control range :
20~45℃;distinguishability 0.1℃
Testing box temp. control accuracy :
±0.5℃
Testing box humidity control :
40%RH~95%RH±2%RH
Testing box humidification :
300ml/h
Drying box temp.control range :
interior temp.~199℃
Testing time :
1min~999h59min
Circulating air speed :
0.02~1.5m/s
Key words :
Moisture Permeability
Description
Fabric Moisture Permeability Textile Testing Machine With Computer Control
Product Overview
This textile and fabric moisture permeability testing machine is designed for evaluating the moisture permeability characteristics of various fabrics, including moisture-permeable coated fabrics and nonwoven fabrics.
Applicable Standards
The testing machine complies with international standards including GB/T12704, ASTM E96, JIS L1099, and BS 7209.
Key Features
  • Integrated structure combining baking box and constant temperature/humidity box

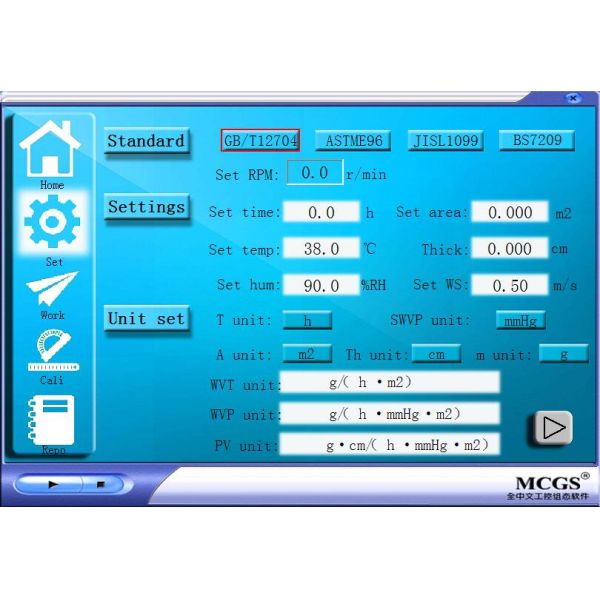

  • Computer-controlled operation with LCD Chinese menu interface
  • Adjustable flow cycle wind speed range: 0.02-1.5m/s with digital setting
  • High-precision imported temperature and humidity sensors
  • Imported motor drivers and ceramic pipe heating system
Technical Specifications
Parameter Specification
Working Pattern Computer control, LCD Chinese menu operation, testing environment monitoring
Testing Box Temperature Control Range 20~45℃; resolution 0.1℃
Testing Box Temperature Control Accuracy ±0.5℃
Testing Box Humidity Control 40%RH~95%RH±2%RH
Testing Box Humidification ≥300ml/h
Drying Box Temperature Control Range Interior temperature~199℃
Testing Time 1min~999h59min
Circulating Air Speed 0.02~1.5m/s
Permeability Area 2827mm² (60mmGB) optional 3848mm²(70mmASTM)
Number of Moisture Permeability Cups 6 pieces
Drying Box Size 490×400×215mm
Power Source AC220V 50Hz 4kW
External Dimension 720×560×1570mm
Weight 100kg

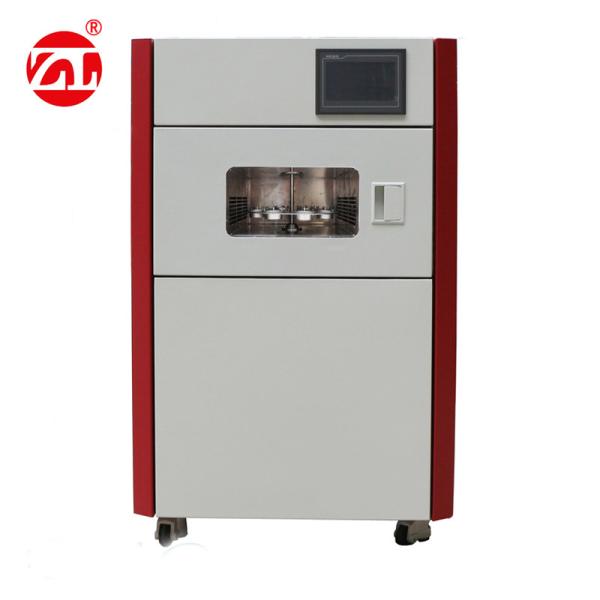

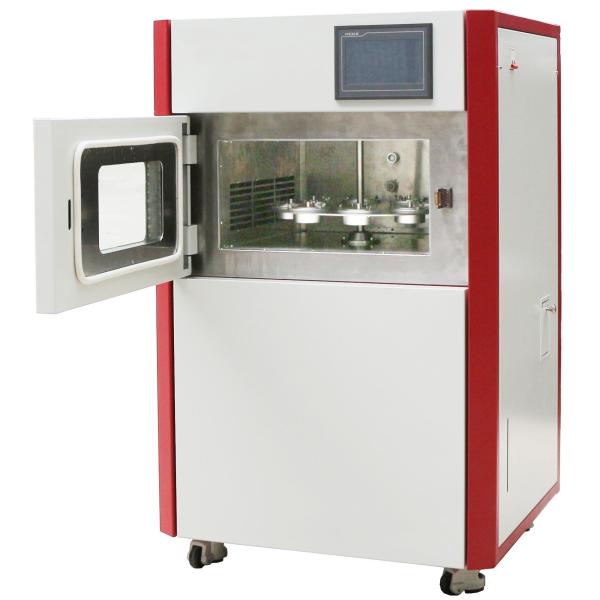

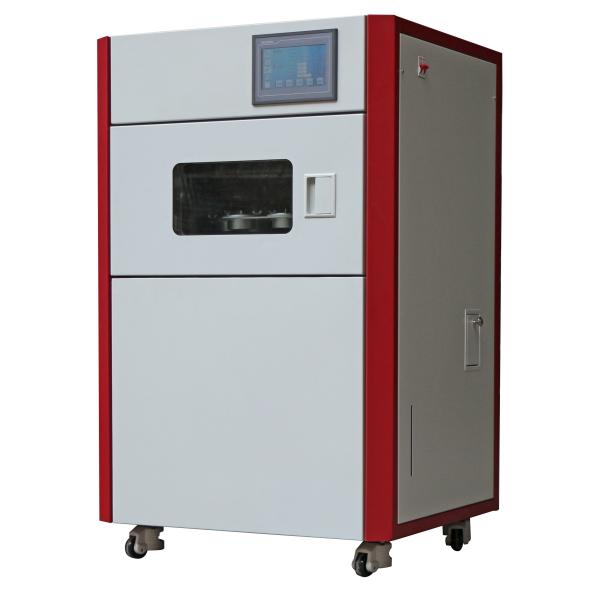

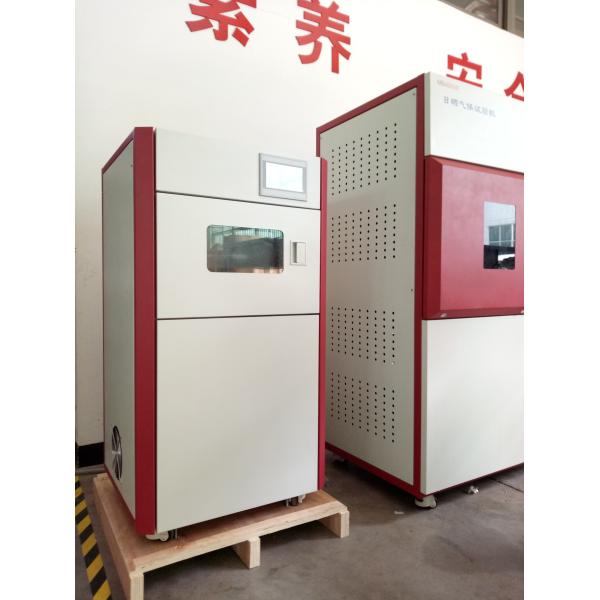

Product Images
Fabric Moisture Permeability Textile Testing Machine With Computer Control Fabric Moisture Permeability Textile Testing Machine With Computer Control
