G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
Specifications
Brand Name :
ZL
Place of Origin :
Guangdong, China
MOQ :
1
Speed :
90 ± 1r / min
Friction stroke :
76 ± 2mm
Tension weight :
340g
Load weight :
150g
Dimensions :
550 × 550 × 650mm
Weight :
80kg
Power supply :
220V 50HZ
Test head :
4 groups
Friction table :
arc surface r100mm length 400mm
Friction head :
bottom rubber indenter 50×50mm arc surface r100mm
Sample tension :
4lbf (17.8N), adjustable
Sample load :
3lbf (13.4N), adjustable
Sample size :
73 × 245mm
Number of samples :
12 pieces, 6 pieces each in warp and weft
Protection class :
IP56
Description
G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
ASTM D3597 Oscillatory Abrasion Tester | Fabric & Leather Wyzenbeek Testing Machine | SAE J1948 ISO ISO12402 Compliant
Product Overview
The Wyzenbeek abrasion resistance tester measures the abrasion resistance of fabrics against standard friction media or metal mesh surface friction movements. This equipment is particularly suitable for abrasion resistance testing of automotive decoration, furniture textiles, and leather materials.
Compliance Standards
ASTM D4157, ASTM D3597, ISO12402-7, SAE J1948 and related standards
Technical Specifications
Parameter Specification
Test Head 4 groups
Speed 90 ± 1r/min
Friction Table Arc surface r100mm length 400mm
Friction Stroke 76 ± 2mm
Friction Head Bottom rubber indenter 50×50mm arc surface r100mm
Sample Tension 4lbf (17.8N), adjustable
Tension Adjustment Weight 340g
Sample Load 3lbf (13.4N), adjustable
Load Adjustment Weight 150g
Sample Size 73 × 245mm
Number of Samples 12 pieces, 6 pieces each in warp and weft directions
Dimensions 550 × 550 × 650mm
Weight Approximately 80kg
Power Supply 220V
Standard Accessories
  • 4 rubber blocks
  • Two metal nets
  • 10# 5 pieces of friction cloth
  • 1 power cord
Product Images

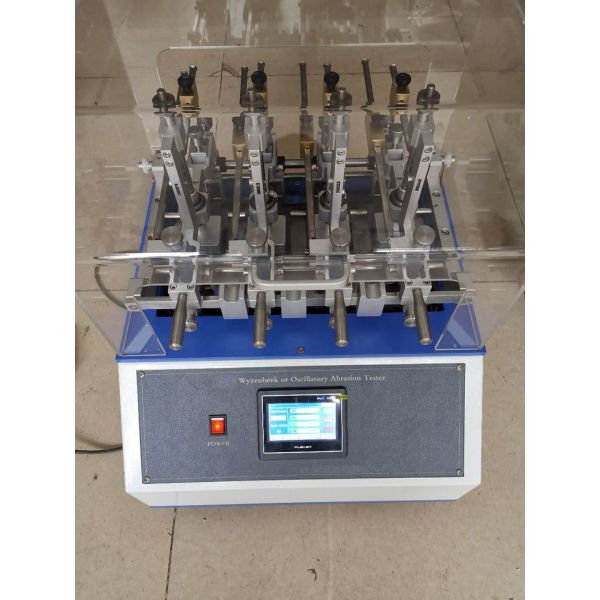

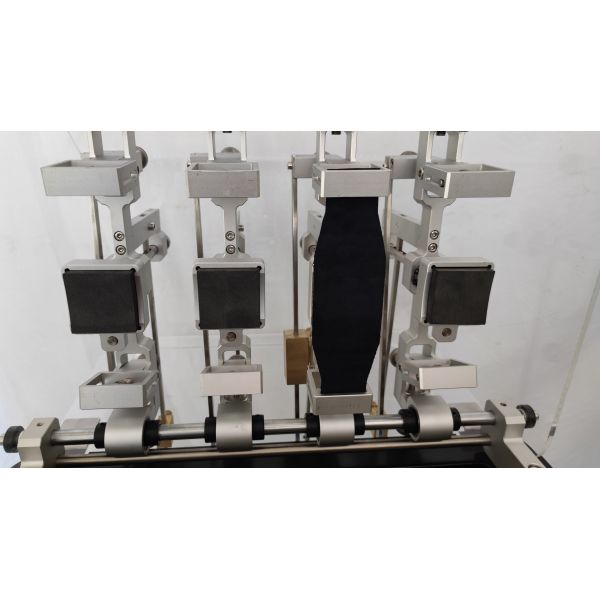

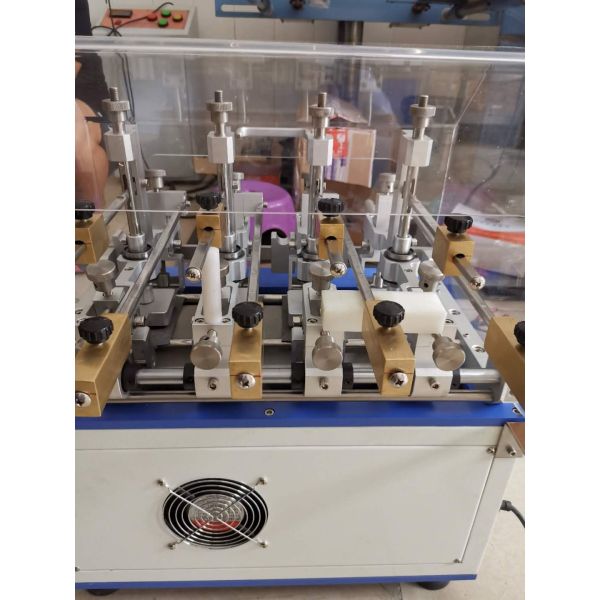

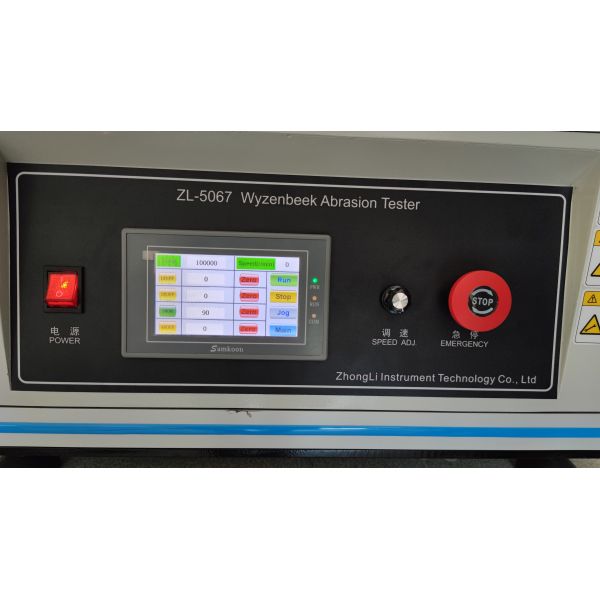

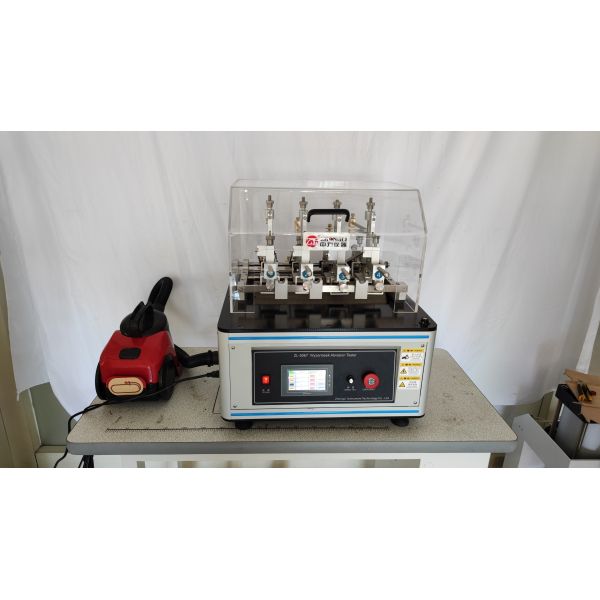

G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine
