Specifications
Brand Name :
ZL
Place of Origin :
Guangdong, China
MOQ :
1
Drop height range :
100-1500mm
Drop error :
±10
Specimen weight :
15kg±100g
Clamping method :
pneumatic
Machine dimensions :
W700*D900*H2500mm
Machine weight :
50kg
Power supply :
1ƒ,220V,5A
Voltage options :
220V, 380V
Protection class :
IP56
Accuracy :
Varies by requirement
Power consumption :
220V 5A
Drop height precision :
1.0 +/-0.01m
Test standard :
IEC 60068-2-23, JIS C 0044
Specimen condition :
shutdown state
Surface impact :
iron plate surface
Description
Battery Drop Tester | IEC 60068 & JIS C 0044 Compliance | for Mobile Phone Cells Impact Test
Product Summary

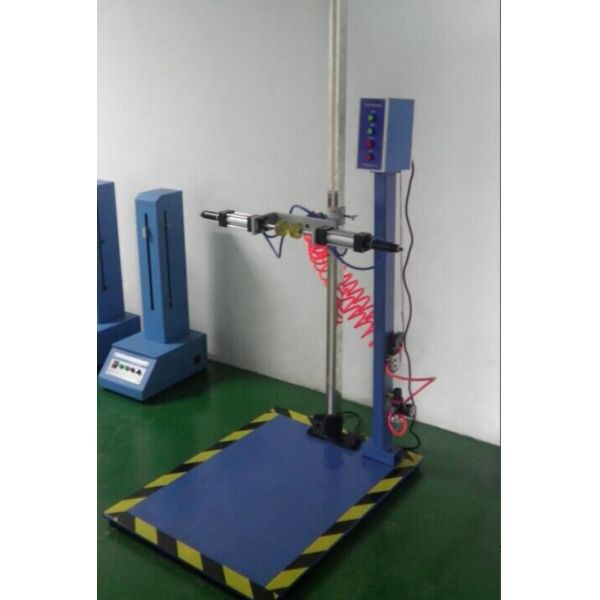

The Mobile Phone Free Drop Testing Machine evaluates unpackaged mobile phone batteries in shutdown state. The test involves dropping the specimen from a height of (1.0 ±0.01)m onto an iron plate surface. After testing, specimens may show surface scratches or small pits but must maintain proper function, appearance, and assembly according to relevant standards.

Compliance Standards

This equipment meets the following industry standards:

  • JIS C 0044
  • IEC 60068-2-23
Technical Specifications
Parameter Specification
Model Mobile Phone Free Drop Testing Machine
Height range of drop 100-1500mm
Drop error ±10
Allow specimen weight 15kg±100g
Clamping way Pneumatic
Machine size W700*D900*H2500mm
The weight of machine 50kg
Power 1ƒ,220V,5A
Battery Drop Tester | IEC 60068 & JIS C 0044 Compliance | for Mobile Phone Cells Impact Test Battery Drop Tester | IEC 60068 & JIS C 0044 Compliance | for Mobile Phone Cells Impact Test
About Our Company

Zhongli Instrument Technology Co., Ltd is a professional manufacturer of lab testing equipment headquartered in Dongguan, Guangdong, China. Since 2007, we have specialized in producing high-quality testing instruments for various industries.

Our products are exported to over 110 countries worldwide, with particular popularity in European and American markets. We serve diverse industries including rubber and plastics, food packaging, electronics, and scientific research institutions.

In addition to standard machines, our R&D team offers customized solutions tailored to specific testing requirements.

Battery Drop Tester | IEC 60068 & JIS C 0044 Compliance | for Mobile Phone Cells Impact Test
Frequently Asked Questions
How to choose the most suitable Mechanical Equipment?

Our professional team will provide recommendations based on your specific testing requirements and specifications.

What's the delivery term?

Standard delivery time is 15-20 working days after deposit receipt. Urgent orders may receive special arrangements.

Do you accept customization service?

Yes, we offer both standard and customized machines to meet specific testing needs.

Can we visit your factory before order?

We welcome factory visits and can assist with travel arrangements including airport pickup and hotel bookings.

What is your warranty policy?

We provide a two-year warranty including technical support and replacement parts. Engineer visits may be arranged when necessary.

For more information, please visit our official website: www.zltester.com

Contact us directly to discuss your testing equipment needs or request a quotation.
