Specifications
Brand Name :
ZL
Place of Origin :
Guangdong, China
MOQ :
1
Test force :
600KN/1000KN
Effective test space :
1200mmx1200mm/1400mm×1400mm
Table height :
300mm
Force value accuracy :
≤ ± 1%
Loading speed range :
0.1 ~ 25KN/s
Piston stroke :
300mm
Deformation measurement range :
0-20mm
Deformation resolution :
0.01mm
Load indication accuracy :
0.1KN
Loading method :
electro-hydraulic
Control mode :
manual/electro-hydraulic servo
Loading media :
46#/68# anti-wear hydraulic oil
Motor power :
0.75KW
Voltage :
380V/220V
Host weight :
3000Kg
Description

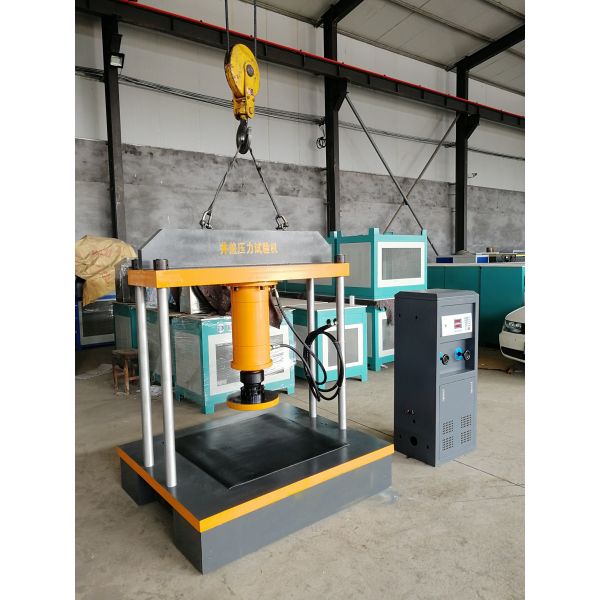

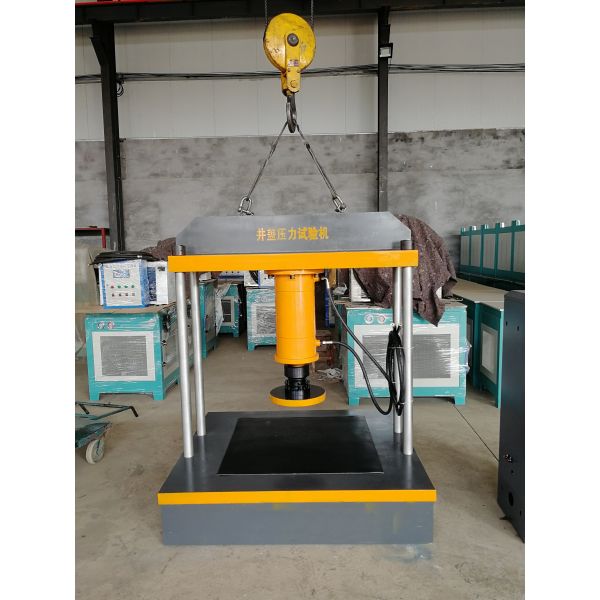

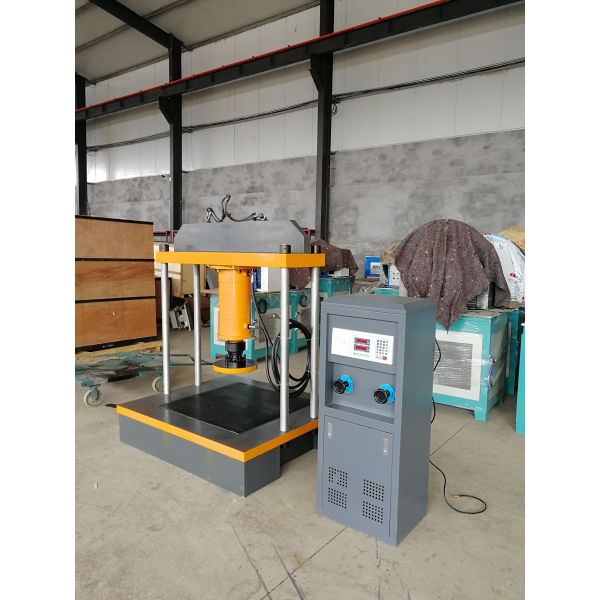

60T 100T Servo Hydraulic Compression Tester for Manhole Cover Strength Test
Product Overview

This computer-controlled servo hydraulic compression test machine is designed for evaluating the bearing capacity and deformation of manhole covers according to industry standards including CJ/T3012-1993, CJ/T121-2000, JC889-2001, and GB/T 23857-2009.

Technical Specifications
Parameter Value
Test Force 600KN/1000KN
Effective Test Space 1200mm*1200mm/1400mm*1400mm (customizable)
Table Height 300mm
Force Value Accuracy ≤ ±1% (better than level 1)
Loading Speed Range 0.1~25KN/s (manual stepless speed regulation)
Piston Stroke 300mm
Deformation Measurement Range 0-20mm
Deformation Resolution 0.01mm
Load Indication Accuracy 0.1KN
Loading Method Electro-hydraulic
Control Mode Manual/Electro-hydraulic servo speed
Loading Media 46#/68# anti-wear hydraulic oil
Motor Power 0.75KW
Voltage 380V/220V
Host Dimensions 1200mm*1400mm*1500mm (L*W*H)
Host Weight 3000Kg
60T 100T Servo Hydraulic Compression Tester | for Manhole Cover Strength Test | Computer Control System 60T 100T Servo Hydraulic Compression Tester | for Manhole Cover Strength Test | Computer Control System
Key Features
  • High rigidity structure ensures test safety
  • Convenient 300mm table height for easy specimen handling
  • Ball joint connection between rigid block and piston ensures accurate bearing capacity measurement
  • Special sealing materials provide high sealing, low friction, and long service life
  • Professional test oil pump motor unit operates quietly with extended lifespan
  • Ultra-fine oil filtration maintains clean hydraulic system for reliable long-term operation
  • Digital display shows real-time force values and peak measurements
Standard Configuration
  • 1000KN manhole pressure test machine host (1 set)

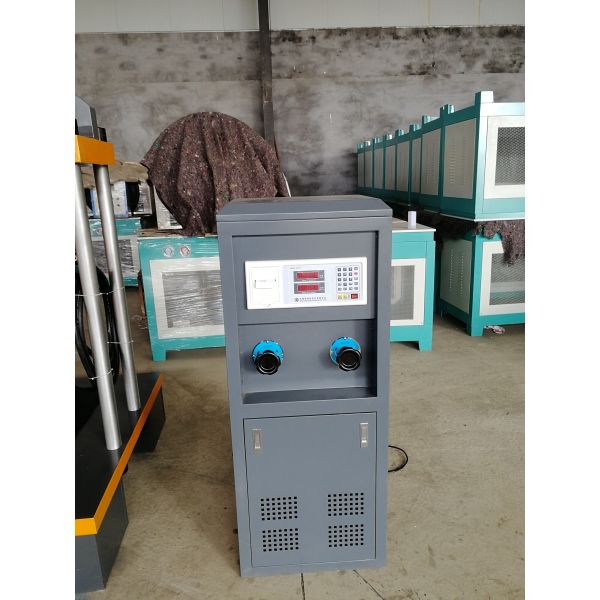

  • Control oil source (1 unit)
  • Complete documentation including user manual, certificate, warranty card, and packing list
60T 100T Servo Hydraulic Compression Tester | for Manhole Cover Strength Test | Computer Control System 60T 100T Servo Hydraulic Compression Tester | for Manhole Cover Strength Test | Computer Control System
Click here for factory prices and shipping information
Frequently Asked Questions
How to choose the most suitable mechanical equipment?

Our professional team will provide recommendations based on your specific testing requirements and specifications.

What's the delivery time?

Standard delivery time is 15-20 working days after deposit receipt. Rush orders can be accommodated with special arrangements.

Do you accept customization?

Yes, we offer both standard and customized machines tailored to your specific requirements.

Can we visit your factory?

We welcome factory visits and can assist with hotel arrangements and airport transfers.

What is your warranty policy?

Standard warranty is two years, including technical support and parts replacement. On-site engineer support is available when necessary.
