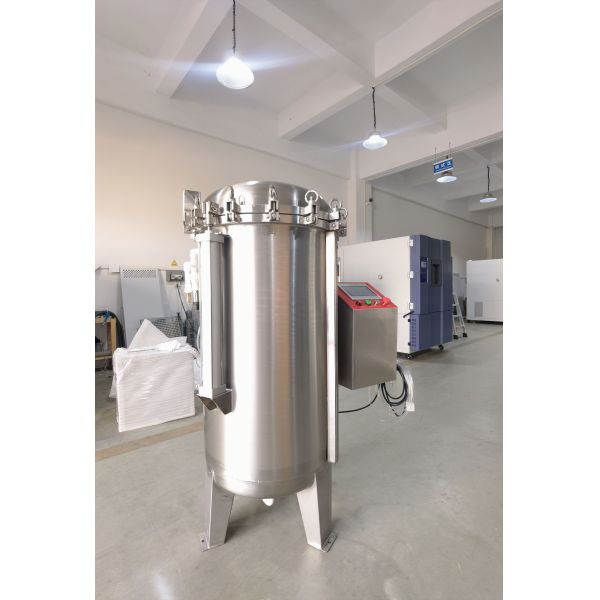

IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
Specifications
Brand Name :
ZL
Model Number :
ZL-6016C
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
40 sets / month
Delivery Time :
5-8 work days
Packaging Details :
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber is packaged within wooden case.
Product name :
IPX7 IPX8 Immersion Tank Waterproof Ipx7 Ipx8 Tank Ingress Test Chamber
External dimensions of Water Tank :
Approx. length 650*depth 650*height 1400mm
Box Size :
L600*W600*H1200mm
Maximum Test Water Depth :
1.2m
Inner Box Thickness :
1.5mm
Water Level Adjustment Method :
Water inlet/drain valve, manually adjustable
Water Level Display :
Stainless steel ruler (accuracy 1mm), horizontal visual inspection
Description
IPX7 IPX8 Immersion Tank Waterproof Test Chamber
This immersion tank waterproof test chamber is designed for IPX7 and IPX8 ingress protection testing, simulating water immersion conditions to evaluate product durability and waterproof performance.
Equipment Overview
Water damage from natural sources like rain, seawater, and river water causes significant economic losses annually through corrosion, fading, deformation, strength reduction, swelling, and mold growth. Electrical products are particularly vulnerable to short circuits and fire hazards from water exposure. This equipment provides essential waterproof testing for product shells and enclosures.
Application Areas: Outdoor lighting, household appliances, automotive components, and other electronic/electrical products.
Equipment Function: Simulates rainfall and immersion conditions to test physical properties and performance of electronic products, lighting fixtures, electrical cabinets, automotive parts, and related components. Verifies product performance meets requirements for design improvement, calibration, and quality inspection.
Compliance Standards
Complies with IEC60529:1989 +A1:1999 +A2:2013 "Degrees of protection provided by enclosures (IP Code)", GB4208-2008 "Enclosure protection level (IP Code)" 14.2.7, and GB7000.1 "Luminaires Part I: General requirements and tests" 9.2.8 requirements.
Key Features
  • Designed for IPX7 waterproof level testing
  • Maximum water depth: 1.2 meters
  • Bottom area: 600 * 600mm (Customizable)
  • Inner layer constructed with tempered glass for rust-free, leak-proof performance
  • Inlet and outlet water pipelines installed under the tank
  • Stainless steel bottom frame with load casters and foot cups for mobility and stability
  • Stainless steel ruler for precise water level display
  • Integrated stainless steel hook for easy sample handling
Technical Parameters
Parameter Specification
External Tank Dimensions Approx. 650 * 650 * 1400mm
Box Size 600 * 600 * 1200mm
Maximum Test Water Depth 1.2m
Inner Box Thickness 1.5mm
Water Level Adjustment Manual inlet/drain valve adjustment
Water Level Display Stainless steel ruler (1mm accuracy), horizontal visual inspection
Main Components
Component Specification Quantity
Inner Box Tempered glass custom-built 1 set
Tempered Glass 12mm thickness 1 piece
Caster Global/3 4
PP-R Valve 6 points 2
Stainless Steel Ruler 1.5m (1mm accuracy) 1
Piping Accessories PP-R 1 batch
