Specifications
Brand Name :
Zhongli
Model Number :
ZL-6010A
Certification :
ISO,CE
Place of Origin :
Guangdong,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7~10 days after the order confirmed
Packaging Details :
Plastic Ventilation-Type Aging Testing Chamber with ASTMD 5374 ISO 188 UL1581 ASTM D2436 Packaged in wooden case
Product name :
Plastic Ventilation-Type Aging Testing Chamber with ASTMD 5374 ISO 188 UL1581 ASTM D2436
Power supply :
Three-phase 380VAC 50Hz
Ambient temperature :
5~35℃
Ambient humidity :
≤85% R.H
Temperature range :
Ambient temperature +25℃~300℃
Control accuracy :
±0.5℃
Resolution accuracy :
0.1℃
Distribution error :
±2.5℃
Description

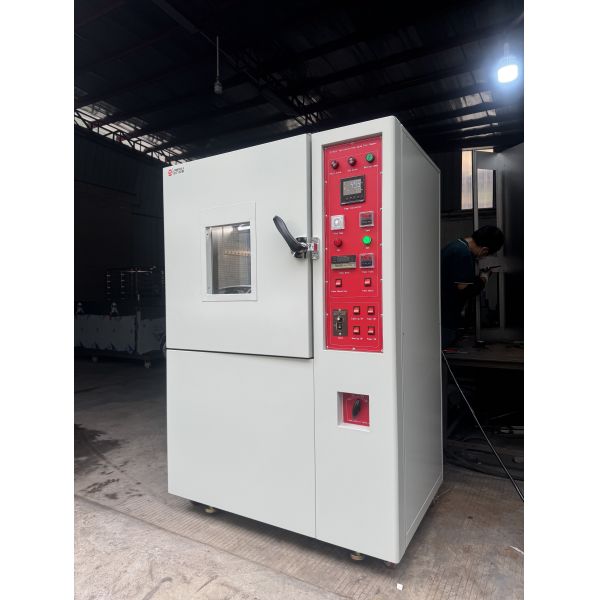

Plastic Ventilation-Type Aging Testing Chamber
Compliant with ASTMD 5374, ISO 188, UL1581, and ASTM D2436 standards for precise plastic aging testing.
Compliance Standards
Designed in compliance with UL1581, ASTM-D2436, CNS3556, CNS742, JIS7212, and JISB7757 test standards.
Usage Conditions
Parameter Specification
Power Supply Three-phase 380VAC 50Hz
Ambient Temperature 5~35℃
Ambient Humidity ≤85% R.H
Performance Specifications
Electrical Specifications
Power Supply: AC380V
Power: 6KW
Temperature Range: Ambient temperature +25℃~300℃
Control Accuracy: ±0.5℃
Resolution Accuracy: 0.1℃
Distribution Error: ±2.5℃
Heating Time: From ambient temperature to 300℃, approximately 60 minutes
Machine Structure & Materials
Inner Chamber: 45cm (depth) * 50cm (width) * 50cm (height)
Outer Dimensions: 1040mm (length) * 650mm (width) * 1275mm (height)
Chamber Material: SUS#304 stainless steel interior, baked paint exterior
Insulation: High-density rock wool
Heater: Spiral tube heater set: AC380V 6KW
Auxiliary Equipment
  • Fuse switch with overload protection
  • Indicator lights for various actions
  • Rotary tray and rotary motor set (removable tray, speed 8~10rpm)
  • Air exchange rate measurement device set with digital wattmeter and timer
  • Air exchange rate adjustment device (3~200 times/hour adjustable within RT~250℃)
  • Wide-angle projection lighting equipment
  • Timer set for aging timing and exchange rate measurement
  • Multi-layer vacuum glass viewing window
  • Two laboratory shelves
  • One watt-hour meter
Air Supply Circulation System
Multi-blade centrifugal circulation fan with one air supply fan: 1&380V 370W. Exchange rate adjustable from 8~200 times/hr within RT~250℃.
Circuit Control System
  • Microcomputer electronic setting and digital display temperature controller
  • Proportional + Integral + Derivative + SCR control system
  • PID auto-tuning function (no manual setting required)
  • High-precision fine wire sensor
  • OMRON brand relays and timers (Japan)
  • 48-hour full machine aging test run before ex-factory
  • Phase failure protection and overtemperature alarm
