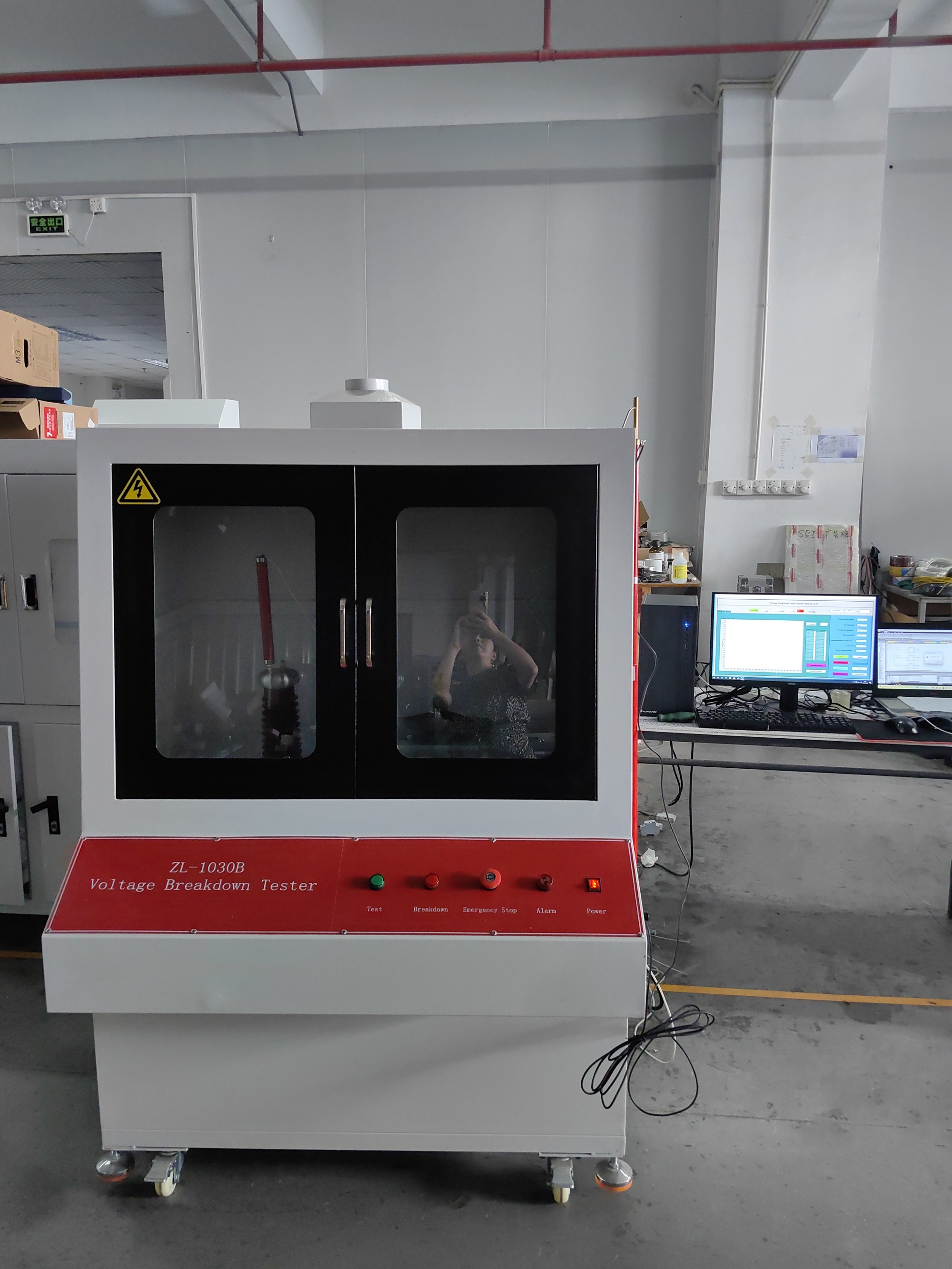

ASTM D149 IEC 60243 Voltage Breakdown Tester Machine
Product Overview

This insulation material breakdown voltage testing equipment is designed for solid insulating materials including plastics, films, resins, mica, ceramics, silicone, glass, insulating varnishes, and more. It measures breakdown strength and withstand voltage time when exposed to power-frequency (48–62 Hz) AC voltage or corresponding DC voltage in air or liquid medium.

Testing Capabilities

The machine supports both continuous and step-by-step voltage boosting methods:

  • Apply AC or DC voltage until breakdown occurs, then measure breakdown voltage and calculate dielectric strength
  • Use rapid boost method to quickly raise voltage to preset value and hold - if sample doesn't break down within set time, it passes withstand voltage test
Standards Compliance
  • IEC 60243-1 – Test method for electrical strength of solid insulating materials (power frequency testing)
  • IEC 60243-2 – Test method for electrical strength of solid insulating materials (DC voltage testing)
  • ASTM D149 – Standard test method for dielectric breakdown voltage
Technical Specifications
Parameter Details
Test voltage AC 0–50 kV, continuously adjustable; DC 0–50 kV, continuously adjustable (100 kV option available)
Transformer capacity 10 kVA
Breakdown voltage range 0–50 kV
Boost speeds 6 selectable rates: 50, 100, 200, 500, 1000, 2000 V/s
Speed control Automatic electric speed regulation
Voltage measurement accuracy ≤ 2%
Leakage current range 1–20 mA (selectable)
Test modes DC test and AC test
Boost method Automatic program-controlled boosting
Power frequency 50 Hz sine wave
Power supply AC 220V, 50/60 Hz
Dimensions 1400 × 1040 × 1500 mm (L × W × H)
Weight 200 kg
