Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine
Specifications
Supply Ability :
30 Sets
Machine length :
120cm (can be customize)
Communication Interface :
Ethernet
Conveying Speed :
60~90m/min
Power :
500 W
Sensitivity :
30 Inches (U.S.Coin ), 25 Inches (U.S.Coin ), 18 Inches (U.S.Coin ), 20 Inches (U.S.Coin ), 15 Inches (U.S.Coin ), 12 Inches (U.S.Coin ), 10 Inches (U.S.Coin )
Operating frequency :
Multi-Frequency
Price :
$6,000
Model Number :
ZL-4023
Power supply :
AC220V; 100W
Delivery speed :
28m / min (can be customize)
Test product weight :
400g ~ 1000g (can be customize)
Place of Origin :
Guangdong, China
Delivery Time :
5-10 work days
MOQ :
1
Material :
304 Stainless Steel
Detection speed :
40 ~ 60 pieces / min (can be customize)
Detection width :
40cm (can be customize)
Search Coil Diameter :
20 cm, 18 cm, 15 cm, 10 cm, 8 cm, 12 cm, 5 cm
Brand Name :
ZL
Payment Terms :
Western Union,T/T,D/A,D/P,L/C
Detection height :
13cm (can be customize)
Packaging Details :
wooden case packaging
IP Rating :
IP68
Description

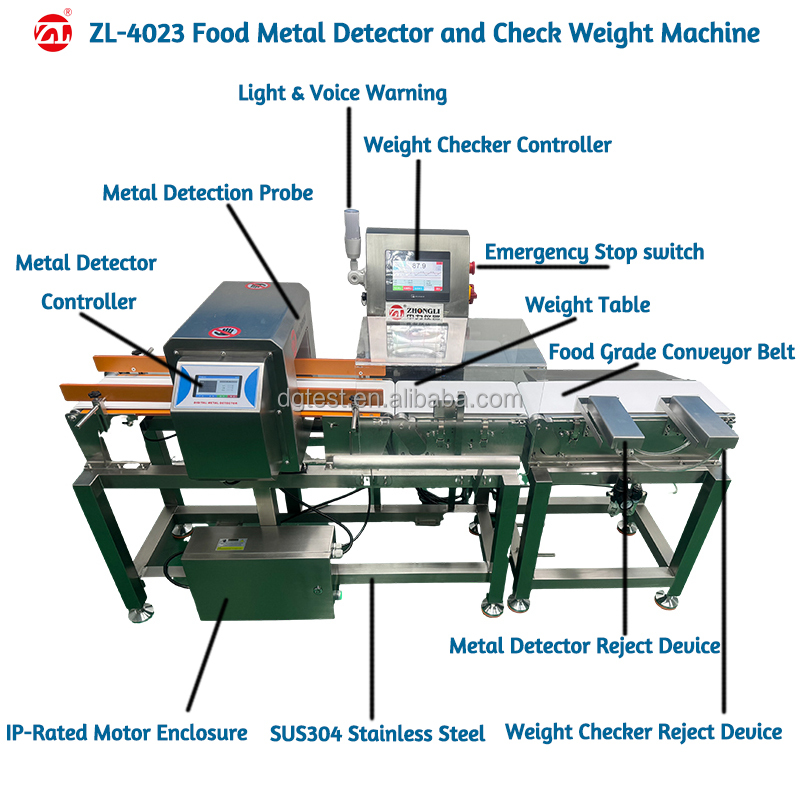

Combination System Type Food Metal Detector and Check Weight Machine
Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine
Scope of Application
Widely used in electronics, food, beverages, health products, daily chemicals, light industry, and agricultural industries. Applications include prepared foods, pastries, ham sausages, instant noodles, frozen foods, food additives, pigments, modifiers, and preservatives.
Technical Parameters
Checkweigher Specifications Metal Detector Specifications
Power Supply: AC220V±10% 50HZ(60HZ) Detection Accuracy: Fe 1.5mm, Non-Ferrous 2.0mm, Stainless Steel 2.5mm
Rated Power: 0.15KW Opening Size: 300*120mm (Customizable)
Single Weighing Range: ≤1000g (Customizable) Optimum Speed: 15-40m/min
Checkweigher Accuracy: ±0.3g~±1g Test Product Size: ≤250mm(L)*120mm(W) (Customizable)
Minimum Scale: 0.1g Conveying Size: 924mm(L)*210mm(W) (Customizable)
Conveying Speed: 60~90m/min Control System: Customized
Maximum Speed: 160 pcs/min Storing Data: 200 pcs
Checkweigher Material Size: ≤250mm(L)*120mm(W) (Customizable)
Conveyor Belt Size: 400mm(L)*210mm(W) (Customizable)
Product Size: 2024mm(L)*742mm(W)*1250mm(H)
Preset Product Number: 99
Conveying Direction: Left in and right out
External Air Source: 0.6-1Mpa
Air Pressure Interface: Φ8mm
Working Environment: Temperature: 0℃~40℃ Humidity: 30%~95%
Material: SUS304 stainless steel
Rejection Method: Push rod, lever, air blowing (selectable based on product characteristics)
Control System: High-speed A/D sampling controller
Functional Features

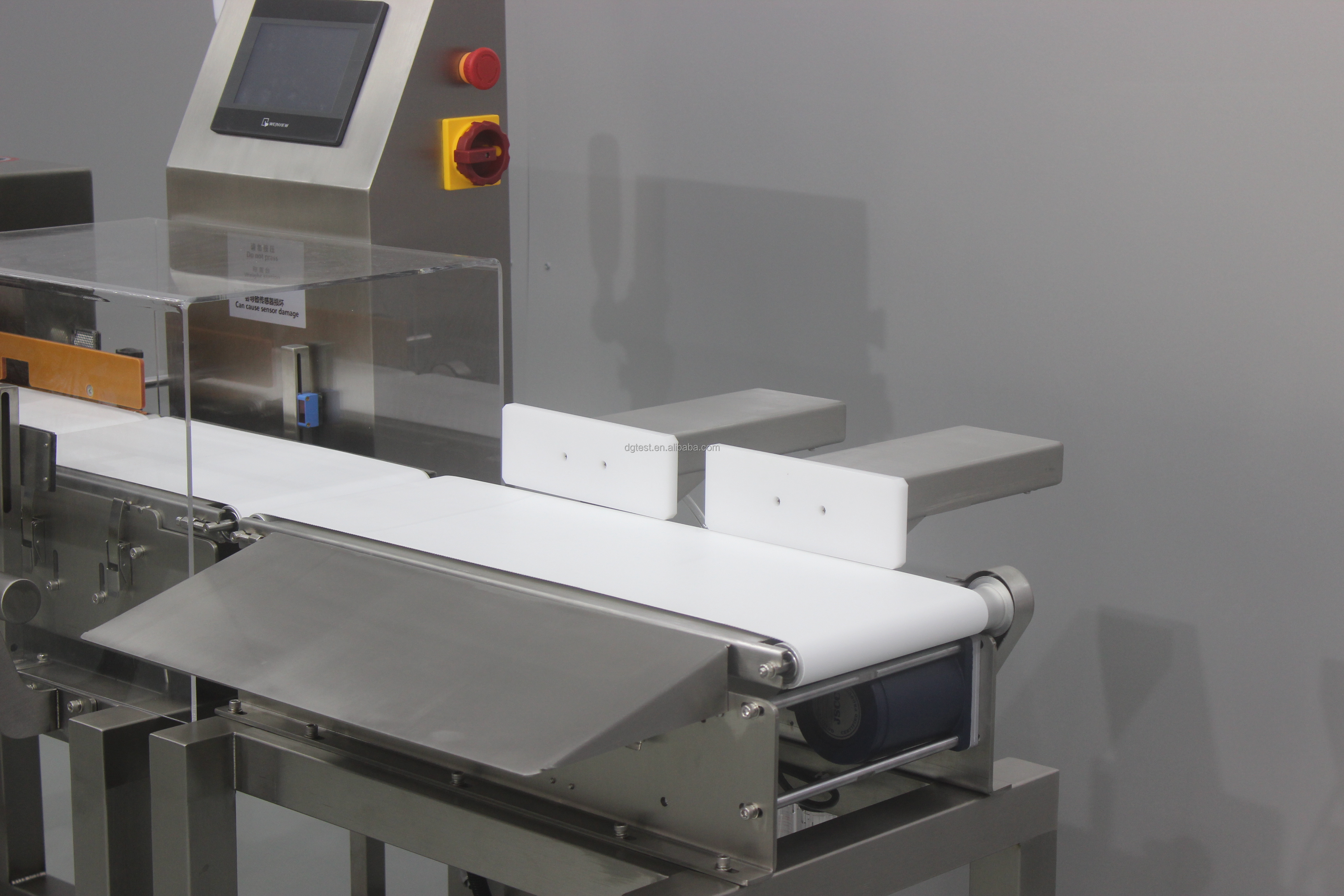

Checkweigher Features
  • Strong versatility with standardized structure and human-machine interface
  • Easy product changeover with storage for multiple formulas
  • Simple operation using Weilun color human-machine interface

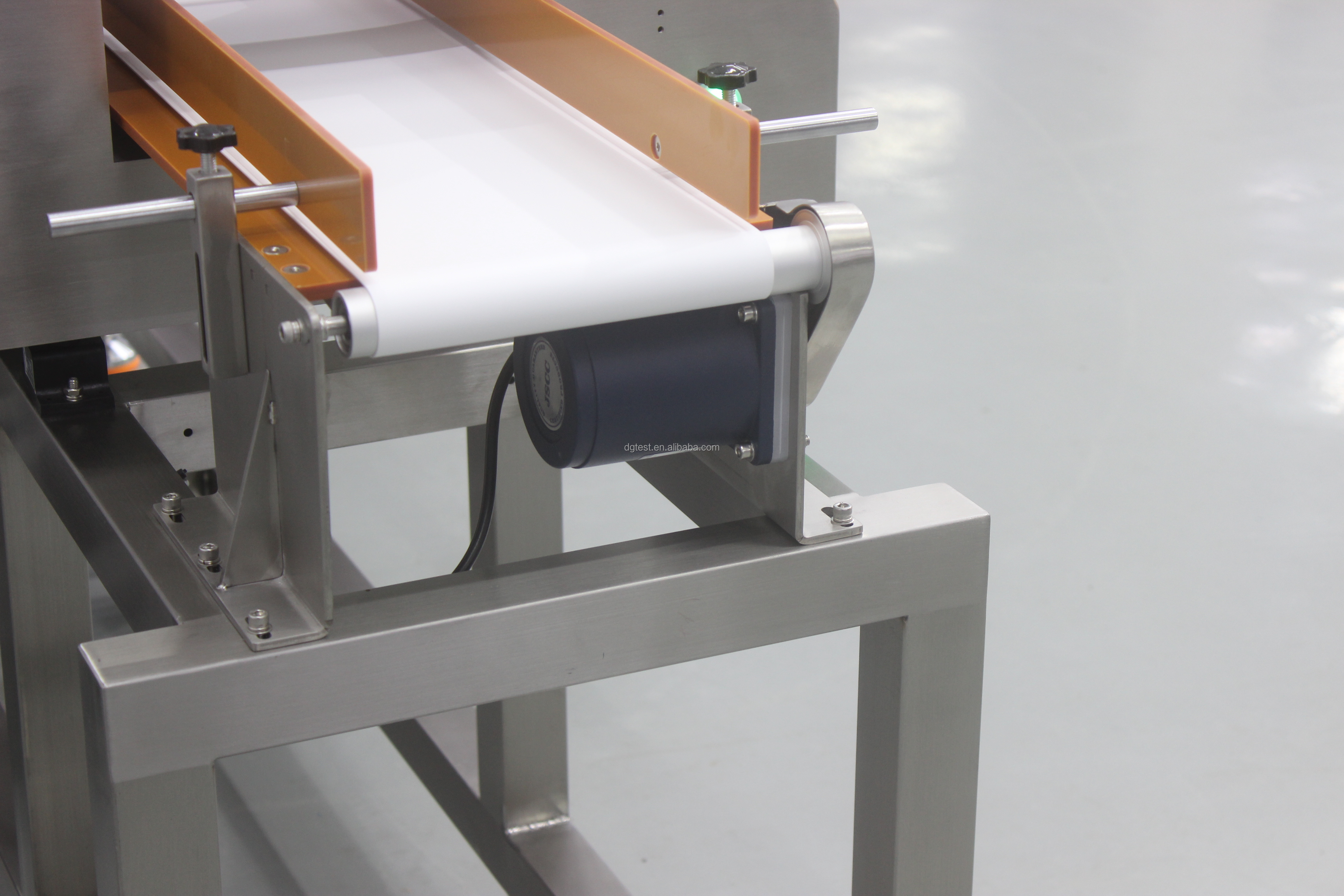

  • Easy maintenance with quickly disassembled conveyor belt
  • Adjustable speed using frequency conversion control motor
  • High speed and precision with digital sensors
  • Zero point tracking with manual or automatic zeroing
  • Comprehensive report function with EXCEL format output
Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine

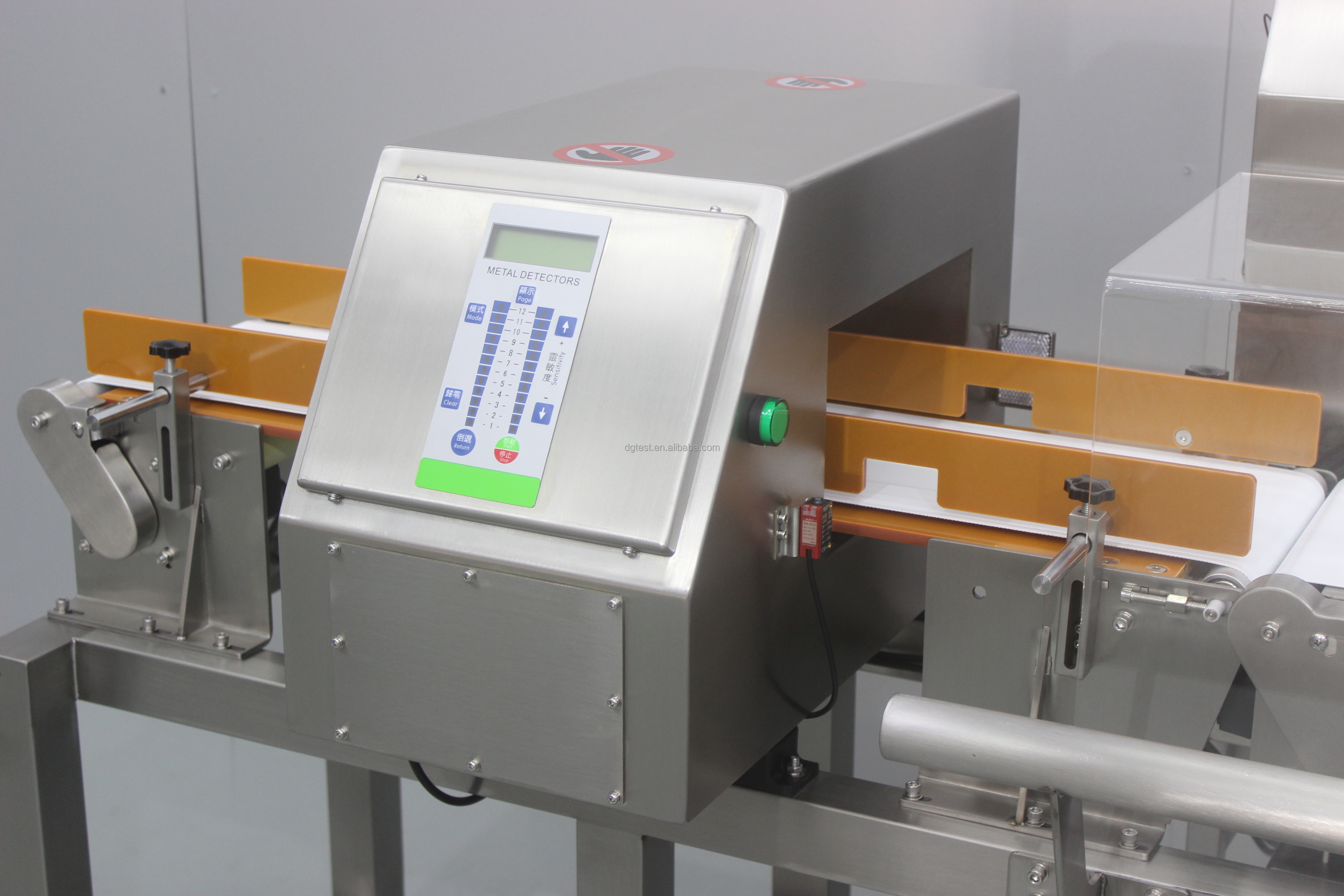

Metal Detector Features
  • Intelligent design with high-definition 7-inch touch screen
  • One-button self-learning function for automatic parameter setting
  • Comprehensive data logging with production statistics
  • 200+ product parameter memory functions
  • Automatic fault detection and prompt system
Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine
Click here for More Factory Prices and Shipping Information
Related Machines
Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine
Click here for 10% Discounts

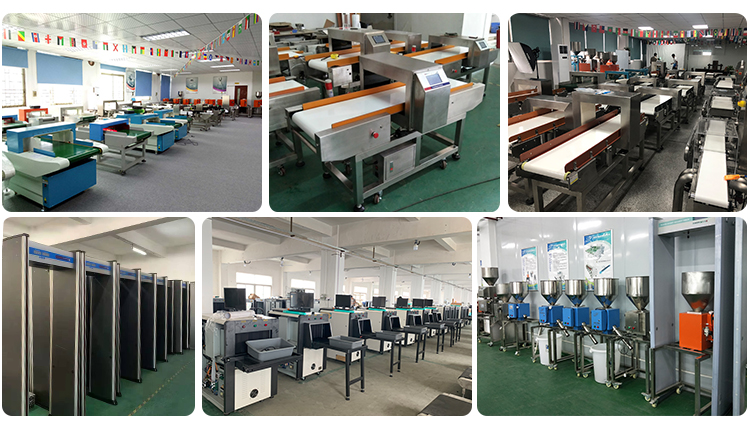

About Zhongli Instrument Technology Co., Ltd
Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine
We are Zhongli Instrument Technology Co., Ltd, an instrument expert headquartered in Dongguan, Guangdong, China since 2007, specializing in manufacturing lab testing equipment. Our products have sold well in Europe, America, and Southeast Asia markets, reaching over 80 countries worldwide.
Our equipment covers rubber and plastics, food, packaging, electronics industries, and is suitable for scientific research units, quality inspection institutions, and academic fields. Our R&D team can customize equipment to meet specific requirements.
Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine Combination System Type Food Metal Detector and Check Weight Machine
Click here for More Factory Prices and Shipping Information
Frequently Asked Questions
How to choose the most suitable Mechanical Equipment?
Our professional team will provide the best suggestions based on your testing requirements and specifications.
What's the delivery term?
Typically 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
Do you accept customization service?
Yes, we offer both standard and customized machines tailored to your specific requirements.
Can we visit your factory before order?
Yes, we welcome factory visits and can assist with hotel arrangements and airport pickup.
Do you have customers in our country?
Our testing machines have been sold to over 80 countries including USA, Canada, Russia, UK, and many European and Asian nations.
How about your warranty?
Two-year warranty with technical support, parts replacement, and engineer assistance when necessary.
How about the packing for machine?
Standard export wooden boxes ensure safe transportation by sea or air.
What is the order process?
Inquiry → quotation → communication → order confirmation → deposit payment → production → testing → balance payment → packing → delivery → customer receiving → after service.
How to install and use the product?
Products include English operating instructions and installation videos.
