400*200 Food All Metal Detection Probe Detector Installed On Conveyor Line
400*200 Food All Metal Detection Probe Detector Installed On Conveyor Line
400*200 Food All Metal Detection Probe Detector Installed On Conveyor Line
400*200 Food All Metal Detection Probe Detector Installed On Conveyor Line
400*200 Food All Metal Detection Probe Detector Installed On Conveyor Line
400*200 Food All Metal Detection Probe Detector Installed On Conveyor Line
400*200 Food All Metal Detection Probe Detector Installed On Conveyor Line
400*200 Food All Metal Detection Probe Detector Installed On Conveyor Line
Specifications
Brand Name :
ZL
Model Number :
ZL-4008
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60 Sets
Delivery Time :
5-8 work days
Packaging Details :
400 * 200 Food All Metal Detection Probe Detector Installed on Conveyor Line is packaged within wooden case.
Product name :
400 * 200 Food All Metal Detection Probe Detector Installed on Conveyor Line
Detection width :
400mm
Detection height :
200mm
Detection accuracy (no-load machine) :
Fe≥Φ1.5mm Sus≥Φ3.0 mm
Detection speed :
25-60m/min
Voltage :
220V/50Hz
Protection class :
IP65
Key words :
Metal Detection Probe
Description
\n
\n
400\u00d7200 Food All Metal Detection Probe Detector Installed On Conveyor Line
\n
\n
Product Overview
\n

The ZL-4008A metal detection system can be installed on tables or conveyor lines to detect metal impurities in various materials, including iron, stainless steel, aluminum, gold, and copper. This versatile detector is suitable for multiple industries including food processing, chemical rubber, plastic recycling, and GMP-compliant.

\n
\n
\n
Key Specifications
\n
    \n
  • Installation: Conveyor line mounting
    • \n
  • Detection Purpose: Identifies metal impurities including gold, aluminum, copper, iron, and stainless steel
    • \n
  • Test Objects: Block products and bulk materials
    • \n
  • Industry Applications: Food additives, meat processing, chemical rubber, plastic recycling, GMP-compliant
    • \n
\n
\n
\n
System Components
\n
    \n
  • Conveyor: High-strength mirror stainless steel structure with laser-cut, all-welded construction and joint PU (polyurethane) conveyor belt
    • \n
  • Control System: ADLINE microprocessor controller with IP65 protection class
    • \n
  • Detection System: Two-channel metal detection ring with rectangular caliber (inseparable)
    • \n
  • Input Current: 80/160 mA
    • \n
  • Ambient Temperature: -10\u00b0C to 60\u00b0C
    • \n
\n
\n
\n
Technical Parameters
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Detection Width (mm)Detection Height (mm)Detection Accuracy (No-load)Volume (mm)Approx WeightDetection SpeedVoltage
500 (custom)80Fe\u2265\u03a60.7mm
Sus\u2265\u03a61.5mm		80\u00d7790\u00d7410115kg25-60 m/min220V/50Hz
500 (custom)150Fe\u2265\u03a61.0mm
Sus\u2265\u03a62.5mm		280\u00d7790\u00d7480115kg25-60 m/min
500 (custom)200Fe\u2265\u03a61.5mm
Sus\u2265\u03a63.0mm		280\u00d7790\u00d7530115kg25-60 m/min
\n
\n
\n

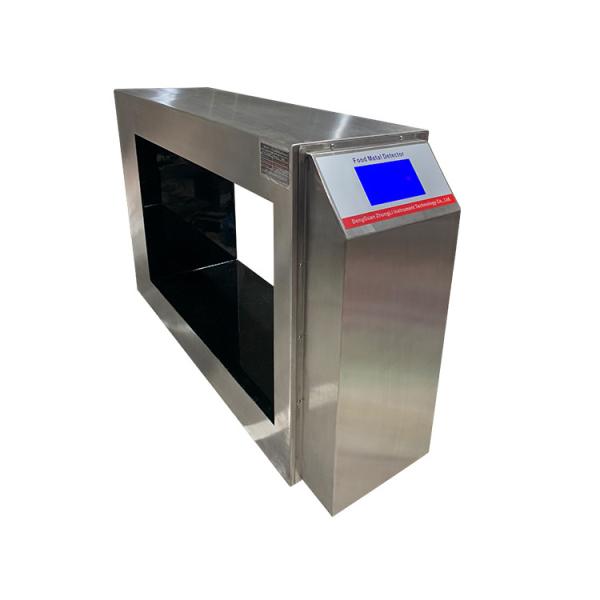

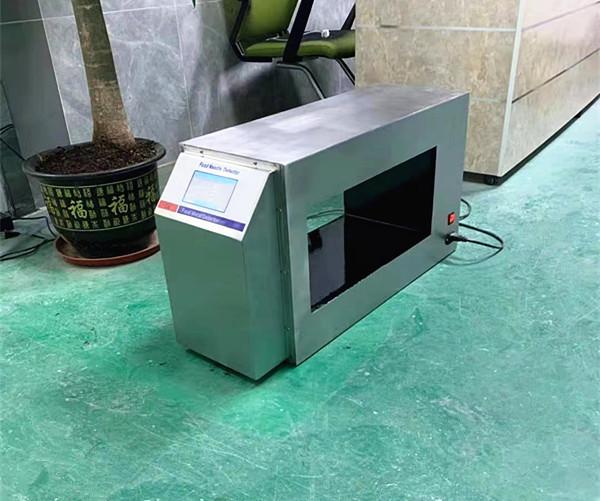

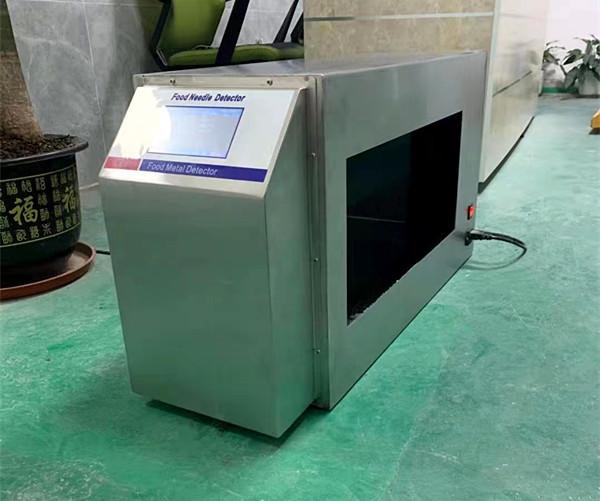

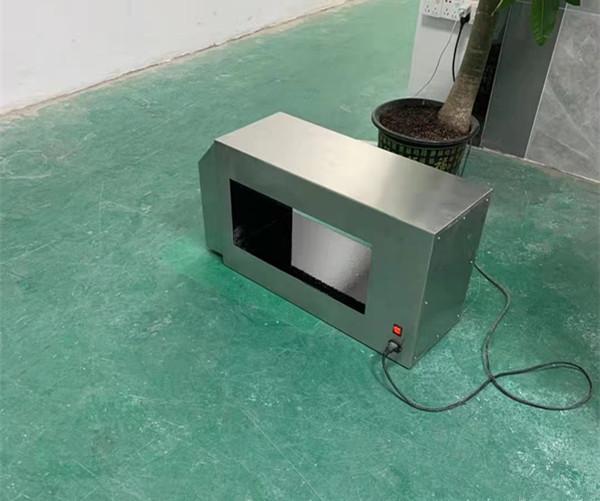

Product Images
\n
\n400*200 Food All Metal Detection Probe Detector Installed On Conveyor Line\n400*200 Food All Metal Detection Probe Detector Installed On Conveyor Line\n
\n
\n
