ASTM D4032 Fully Automatic Fabric Stiffness Tester With Pneumatic
ASTM D4032 Fully Automatic Fabric Stiffness Tester With Pneumatic
Specifications
Model :
ZL-5011
Testing accuracy :
0.01 cm
Extension elongation :
0.5-20.5cm
Specimen specification :
2.5×25 cm
Specimen pressing specification :
2.5×25 cm
Specimen pressing pushing speed :
0.3 cm/s 0.4 cm/s 0.5 cm/s
Power source :
AC220V 50Hz 0.12kW
External dimension :
470×290×405mm
Weight :
18kg
Brand Name :
ZL
Model Number :
ZL-5011
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 set per month
Delivery Time :
5-7 days
Packaging Details :
Packaged within wooden case
Description

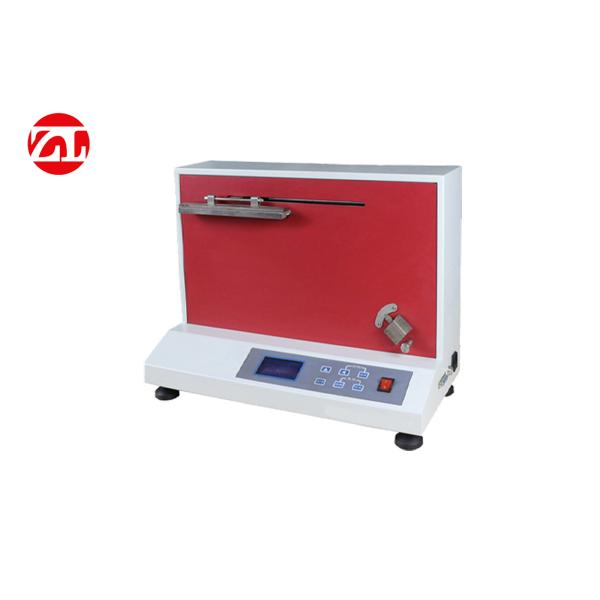

ASTM D4032 Fully Automatic Fabric Stiffness Tester With Pneumatic
Used for testing the stiffness of all kinds of woven and knit goods, nonwoven fabrics and coated fabrics, including cotton, wool, silk, linen and chemical fiber, and also of flexible materials such as paper, leather, film, etc.
Relevant Standards
  • ZB WO4003
  • GB/T18318
  • ASTM D 1388
  • IS09073-7
  • BS En22313
Technical Parameters
Working pattern Computer controlled, infrared stealth slant detecting, Chinese liquid crystal display, printing out testing results
Testing accuracy 410 30` 430 450 (adjustable)
Extension elongation 0.5-20.5 cm
Testing accuracy 0.01 cm
Specimen specification 2.5×25 cm
Specimen pressing specification 2.5×25 cm
Specimen pressing pushing speed 0.3 cm/s 0.4 cm/s 0.5 cm/s
Power source AC220V 50Hz 0.12kW
External dimension 470×290×405 mm
Weight 18 kg
Accessories Supplied
Item Quantity
Main Unit 01 No.
Calibrated Beaker (500 ml.) (Plastic) 01 No.
Specimen Template 01 No.
User's Manual 01 No.
Inspection & Conformance Certificate 01 No.
