Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
Specifications
Product name :
Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
Material :
Sheet metal + plating
Color :
White or Customize
Ositive pressure in cylinder :
0.6MPa (6.12KG/CM)
Negative pressure in cylinder :
1.02×10MPa
Inner dimension :
L700 * W530 * H200mm
Warranty :
12 month
External dimensions :
L1500 * W900 * H1100mm
Power :
1HP
Key word :
Vacuum Impregnation
Brand Name :
ZL
Model Number :
ZL-1034
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
7-10 days
Packaging Details :
Packaged within wooden case
Description
Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
PLC Control Single Cylinder Vacuum Impregnation Equipment

This advanced vacuum impregnation equipment features sophisticated PLC control and precision engineering for reliable cable testing applications.

Key Features

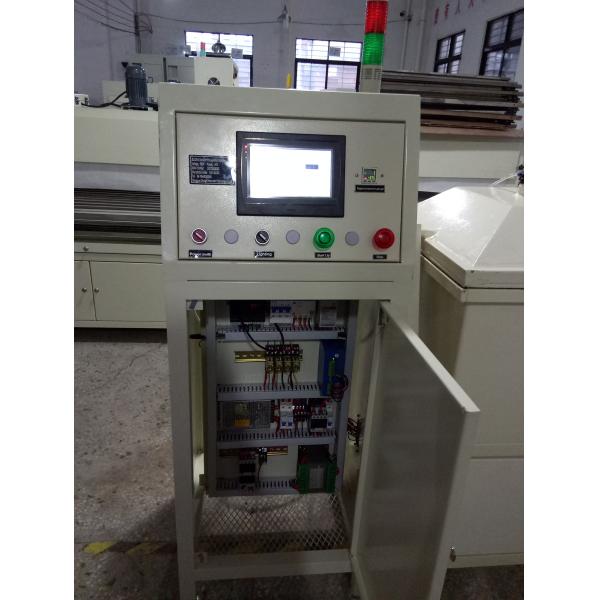

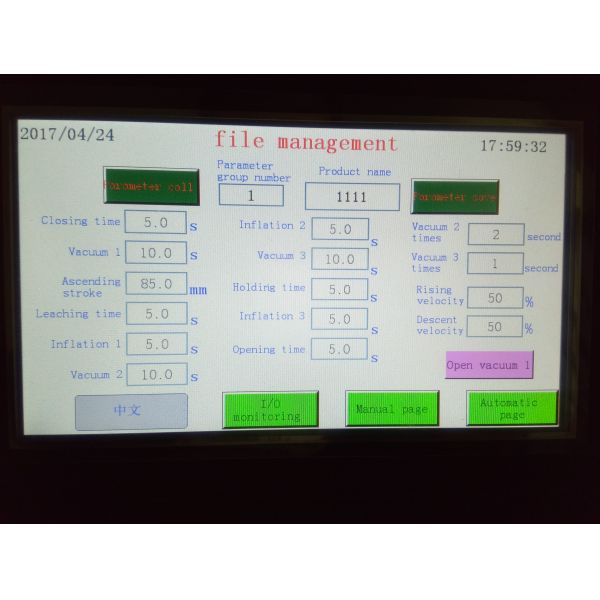

  • Man-machine interface with Weilun color 7-inch touch screen and Mitsubishi PLC control
  • Programmable parameters with storage for 0-50 different data sets
  • Stepper motor controlled liquid level adjustment (0.1-60mm) with adjustable speed
  • Adjustable dipping time (0-999 seconds) with alarm timing functionality
  • Second vacuum capability with automatic air intake and lid opening
  • High-performance XD-020-380V vacuum pump for rapid vacuum achievement
  • Premium construction with 6mm GB quality steel vacuum box (L700×W530×H400)
  • 12mm imported silicone seal system for optimal sealing performance
  • Automated operation prevents pin dip paint and reduces secondary solder
Download Technical Specifications PDF
Technical Specifications
Parameter Specification
Power Supply AC220V / 380V 50Hz / 60Hz
Power 1HP
Positive Pressure in Cylinder 0.6MPa (6.12KG/CM)
Negative Pressure in Cylinder 1.02×10MPa
Inner Dimensions L700 × W530 × H200mm
External Dimensions L1500 × W900 × H1100mm
Weight Approximately 220Kg
Product Images
Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation Sheet Metal Single Cylinder Cable Testing Machine With Vacuum Impregnation
