Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine
Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine
Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine
Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine
Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine
Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine
Specifications
Brand Name :
ZL
Model Number :
ZL-1009
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
500 set per monfth
Delivery Time :
3-7 days
Packaging Details :
Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine is packaged within safety wooden case.
Power :
220v 50hz
Diameter range :
0.08 ~ 0.8mm
Drawing speed :
250 ~ 300mm/min
Starting Length :
250mm
Extended range :
0 ~ 48%
Display Accuracy :
0.1%
Description
Wire And Cable Testing Machine, Aluminum / Copper Elongation Testing Machine

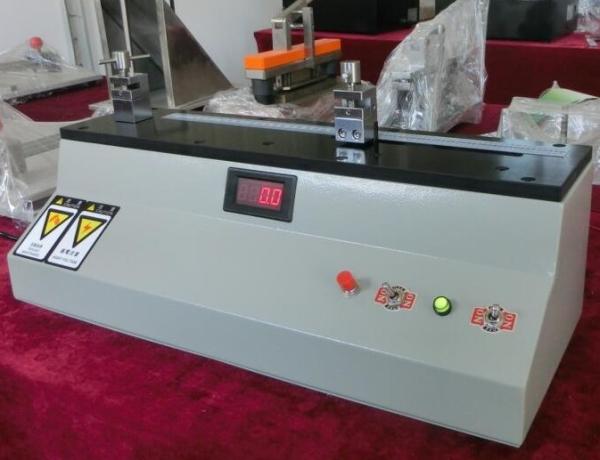

Cable and Wire Elongation Testing Machine

Cable and Wire Elongation Test Machines are designed for measuring elongation in aluminum, copper, iron, and other metal materials. These testers utilize advanced software programs and sophisticated electronic sensing technology to accurately measure the elongation of tensile specimens. The system automatically converts measurements into percentage values displayed on an LED screen.

With integrated conductive wire technology and advanced control systems, this equipment automatically calculates high-precision percentage values. The system offers fully automatic operation with simple controls, easy-to-read displays, and accurate measurement results.

Key Features
  • Advanced control technology for automatic high-precision percentage calculations
  • Fully automatic operation with simple user interface
  • Easy-to-read displays with accurate measurement values
  • Ideal choice for wire-like material elongation testing
  • Sophisticated electronic sensing technology
Technical Specifications
Parameter Specification
Product Name Cable And Wire Elongation Test Machine
Diameter Range 0.08 ~ 0.8mm
Drawing Speed 250 ~ 300mm/min
Starting Length 250mm
Extended Range 0 ~ 48%
Display Accuracy 0.1%
Input Power AC220V 50/60HZ
Dimensions 500 × 210 × 240 (mm)
Weight 13kg
Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine Wire And Cable Testing Machine , Aluminum / Copper Elongation Testing Machine
