GB/T4207 Leakage Trace Testing Machine Destructive Rubber Testing Equipment
GB/T4207 Leakage Trace Testing Machine Destructive Rubber Testing Equipment
Specifications
Packaging Details :
Wooden cases
Supply Ability :
5 units per month
Price :
US$2000-$30000
Place of Origin :
China
Brand Name :
CHENGFENG
Certification :
ISO,CE
MOQ :
1 Set
Delivery Time :
10 Work Days
Payment Terms :
T/T,Cash,L/C,Western Union,MoneyGram
warranty :
1 Year
customized support :
OEM, ODM, OBM, Software reengineering
place of origin :
Guangdong, China
brand name :
DAXIAN
model number :
DX8352
Compliant with standard :
GB/T4207 testing standard.
Test voltage :
100-600V
Test chamber volume :
0.5M³,d60 w95 h90cm
External dimensions :
D61 W120 H105cm
Outer box material :
mirror stainless steel.
Electrode sectional area :
2mm 5mm
The time constant of the drip device :
adjustable
Surface force :
1.0±0.05N
Distance between two electrodes :
4mm
Description

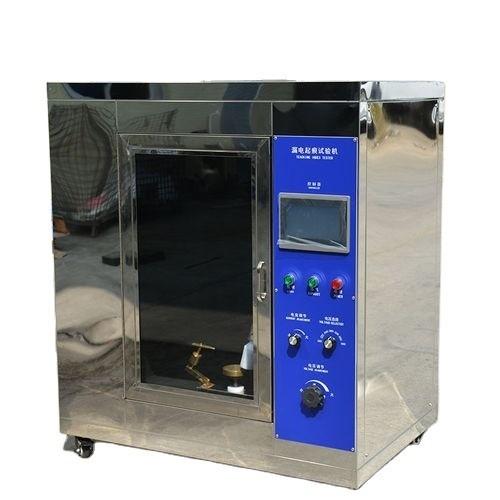

CF8352 Leakage Trace Testing Machine is a destructive test conducted on insulation materials

The leakage trace test is a destructive test conducted on insulation materials to simulate the above situation. The experiment is to apply a certain voltage and drop a specified volume of contaminated liquid (0.1% NH 4 CL) at a fixed height (35mm) for 30 seconds on the surface of a solid insulation material, between platinum electrodes of a specified size(2mm×5mm), to evaluate the tolerance of the solid insulation material surface under the combined action of an electric field and a contaminated medium, and to determine its relative tracking index (CT1) and resistance to tracking index (PT1).

Basic principle: Under the influence of humid and impurity environments on electrical products, insulation leakage may occur between charged parts of different polarities or between charged parts and grounded metal. The generated arc can cause breakdown and short circuit to the electrical appliance, material corrosion due to discharge, and even lead to fire.

GB/T4207 Leakage Trace Testing Machine Destructive Rubber Testing Equipment
