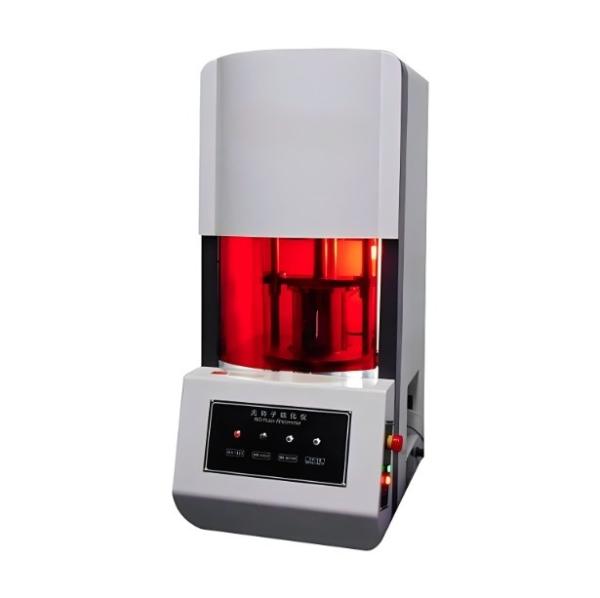

Scope of application: Suitable for analyzing and measuring performance indicators such as scorch time, positive vulcanization time, vulcanization rate, viscoelastic modulus, and vulcanization flatness period during the rubber vulcanization process. It is a testing instrument designated by the state for the development of new products, research on rubber formula, and inspection of product quality.

Compliant with standards: accordance with GB/T16584 "Rubber - Determination of vulcanization characteristics using a rotor less vulcanization apparatus", ISO6502 requirements, and Italian standards T10, T30, T50, T60, and T90 data .

Technical specifications:

Temperature control range: 0-200 ℃

Temperature fluctuation range: ± 0.1 ℃

Temperature display resolution: 0.1 ℃

Heating time: Approximately ≤ 10 minutes to reach equilibrium at room temperature -200 ℃

Time setting range: 2min to 120min, any choice

Temperature fluctuation of the mold: ≤ ± 0.1 ℃%

Torque range: 0-20N. m

Swing frequency: 1.7Hz (100r. min-1)

Rotary swing amplitude: ± 0.5 °, total amplitude is ± 1 °

Power consumption: 800W

Mold cavity structure: Monsanto form

Report content: ML, MH, ts1, ts2, t10, t30, t50, t70, t90, vulcanization curve, temperature curve

Executive standard: ASTMD5289-95 ISO6502-1991 GB/T16584-1996

Power supply voltage: AC220V ± 10% 50HZ

External dimensions: 640mm × 580mm × 1300mm

Net weight 210Kg

Main features:

1. This instrument uses a truly enclosed mold cavity, similar to Alpha (formerly Monsanto) in the United States. Repeatability and test data are comparable to alpha. Leading position in the international industry.

2. This instrument is based on a large-scale database development platform, and the temperature control device is directly controlled and collected through software processing. This technology leads the international trend.

3. This instrument has functions such as statistics, analysis, storage, and comparison. Humanized design, easy to operate
