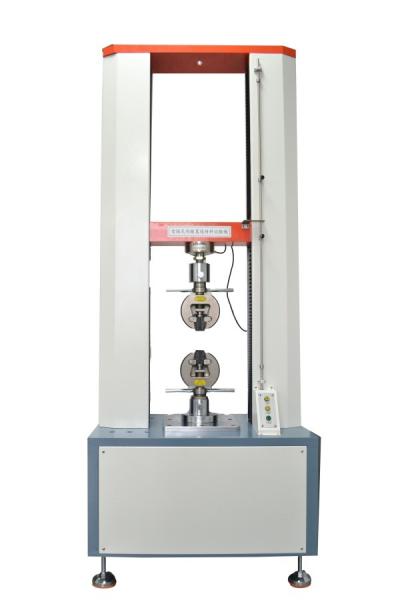

Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Specifications
Price :
US$2000-$30000
Place of Origin :
China
Brand Name :
CHENGFENG
Certification :
ISO,CE
MOQ :
1 Set
Packaging Details :
Wooden cases
Delivery Time :
10 Work Days
Payment Terms :
T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability :
5 units per month
warranty :
1 Year
model number :
CF7183
power :
Electronic
Maximum load :
Choose from within 5000,10000 KG
Accuracy class :
Level 0.5
Effective force measurement range :
0.4%~100% (0.5 grades)
Force measurement accuracy :
Within ± 0.5% of the indicated value
Extended configuration :
Multiple sensors can be added
Effective test width :
400mm(can be widened according to customer
Description

Universal Material Testing Machine--10T, Applicable to the Testing of Metal and Non-metal Materials, Such As Rubber, Plastic

Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Specification
Main functions:
Mainly applicable to the testing of metal and non-metal materials, Such as rubber, plastic, wire and cable, optical fiber and cable, safety belts, leather belt composite materials, plastic profiles, waterproof coils, steel pipes, copper, profiles, spring steel, bearing steel, stainless steel (and other high hardness steel), castings, steel plates, steel belts, non-ferrous metal wire stretching, compression, bending, shearing, peeling, tearing, two points extension (need to be added Extensometer) and other tests.

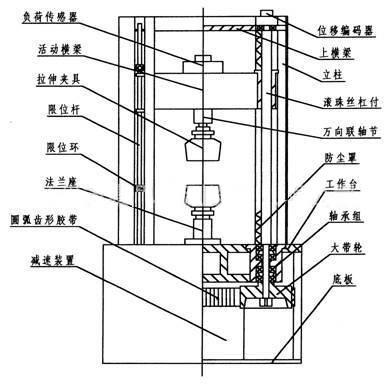

The machine adopts electromechanical integration design, which is mainly composed of force sensor, transmitter, microprocessor, load driving mechanism, computer and color inkjet printer. It has a wide and accurate range of loading speed and force measurement, and has high accuracy and sensitivity to the measurement and control of load and displacement, and can also carry out automatic control tests of constant velocity loading and constant velocity displacement. Floor type models, modeling and painting are fully considered modern industrial design, ergonomics related principles.
Key features:
The imported photoelectric encoder is used for displacement measurement, and the controller adopts an embedded monolithic microcomputer structure, with built-in powerful measurement and control software, which integrates measurement, control, calculation and storage functions. It has the function of automatically calculating stress, elongation (extensometer is required), tensile strength and elastic modulus, and automatically counts the results; Automatically record the force or elongation of the maximum point, breaking point, and specified point; The computer is used to carry out the dynamic display of the test process and the test curve, and the data is processed, and the data can be re-analyzed and edited by the graphics processing module to enlarge the curve after the test, and the report can be printed, and the product performance has reached the international advanced level.
Technical Parameters:
Maximum load Choose from within 5000,10000 KG
Accuracy class Level 0.5
Effective force measurement range 0.4%~100% (0.5 grades)
Force measurement accuracy Within ± 0.5% of the indicated value
Testing machine resolution The maximum load is 1/200000, the inside and outside are not divided, and the resolution of the whole
process remains unchanged
Load cells Basic configuration: one pull and pressure sensor (maximum load)
Extended configuration: Multiple sensors can be added
Effective test width 400mm(can be widened according to customer requirements)
Effective stretching space 800mm(can be increased according to customer requirements)
Test speed range 0～200mm/min
Displacement measurement accuracy Within ± 0.5% of the indicated value
Deformation measurement accuracy Within ± 0.5% of the indicated value (large deformation or small deformation can be selected
according to customer requirements)
Test bench safety device Electronic limit protection
Test bench lifting device Fast/slow two speed automatic control, can be clicked
Test bench return function Manual or automatic options, after the end of the test automatically or manually return to the initial
position of the test at the highest speed
Overload protection Over 10% of the maximum load, the machine automatically protects
Fixture configuration Stretching 1 set
Dimensions of the main unit 900*600*2000mm(L*W*H)
Dynamic system Servo motor + high precision ball screw
Power source 220V/50HZ,
Power 1.5KW (according to different force requirements, standard with different power motors)
Weight of the main unit (Approx.) 400 kg
Machine accessories and configuration details:
1, testing machine host 1 set
1.1 Servo motor 1 set
1.2 One American high-precision load sensor for force transmission
1.3 One set of deceleration system
1.4 Taiwan TBI precision screw 1 set
2. 1 set of professional test software based on WindowsXP operating system
3, brand computer 1
4, stretching, compression accessories 1 set
5. 1 set of tools (special tools for installation, maintenance and operation are provided)
6. 1 set of technical data (manual, warranty card, certificate)
Company Profile
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
Customer Photos
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
1. Unique selling point: 12 years of professional research and development, only solving problems for customers. 2. Professional team: A technical research and development team with 12 years of experience, leading in professional knowledge and practical skills. 3. Quality assurance: The company strictly controls quality standards, meets customer standard requirements, and exceeds customer expectations. 4. Innovation ability: Develop products that meet customer needs, and years of experience make product development forward-looking and leading. 5. Competitive advantages: reliable quality, flexible and applicable equipment performance, reasonable equipment prices, high delivery speed, and guaranteed customer after-sales service. 6. Provide customized solutions for customers: fully understand customer needs, provide personalized solutions, and completely solve customer problems. 7. Reliability and credibility: The company operates steadily for a long time, winning the long-term trust of customers and solving their concerns.
Packing & Delivery
Electronic Universal Material Testing Machine 10T For Metal And Non Metal Materials
FAQ
Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?
A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
