CF8342 Building Component Fire Resistance Testing Machine OEM ODM OBM
CF8342 Building Component Fire Resistance Testing Machine OEM ODM OBM
CF8342 Building Component Fire Resistance Testing Machine OEM ODM OBM
CF8342 Building Component Fire Resistance Testing Machine OEM ODM OBM
Specifications
Price :
US$2000-$30000
Place of Origin :
China
Brand Name :
CHENGFENG
Certification :
ISO,CE
MOQ :
1 Set
Packaging Details :
Wooden cases
Delivery Time :
10 Work Days
Payment Terms :
T/T,Cash,L/C,Western Union,MoneyGram
Supply Ability :
5 units per month
Warranty :
1 year
Customized support :
OEM, ODM, OBM, Software reengineering
Working voltage :
AC 380V ± 10% 50NZ
Gas tank capacity :
≥ 50kg×6
Vertical furnace :
L3.2m×W2.2m×H4.0m
Sample size :
300mm wide × 300mm high (customizable)
Horizontal furnace :
L3.2m×W3.2m×H1.5m
Description

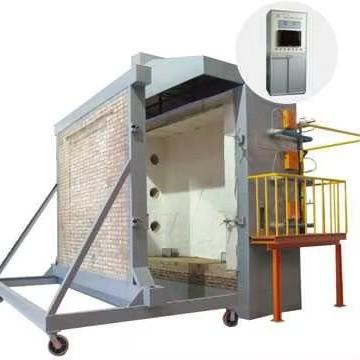

CF8342 Building Component Fire Resistance Testing Machine

CF8342 Building Component Fire Resistance Testing Machine OEM ODM OBM
CF8342 Building Component Fire Resistance Testing Machine OEM ODM OBM

Scope of application: Suitable for fire resistance testing of building components and the fire resistance performance of load-bearing vertical partition components.

Working voltage: AC 380V ± 10% 50NZ.

Furnace body: The experimental furnace passage is composed of bricks, steel structure, and fire insulation materials.

Sample size: 300mm wide × 300mm high (customizable).

The dimensions inside the furnace are approximately:

Vertical furnace: L3.2m×W2.2m×H4.0m

Horizontal furnace: L3.2m×W3.2m×H1.5m.

Gas flow rate: 0-100L/min, with a measurement accuracy of 2.5 levels.

Air flow rate: 0-50m3/min, measurement accuracy≤±0.5m³/min.

Gas tank capacity: ≥ 50kg×6.

Load measurement equipment:±2.5% of the load value should be added (required for loading type tests).

Test piece gap measurement probe: with a diameter of 6mm±0.1mm and a diameter of 25mm±0.2mm.

Combustion system: gas distribution system (within 10 meters), nozzle (not less than 20), and regulating valve.

Combustion gas sources: propane, liquefied gas.

Furnace temperature control system: maximum sampling point of 10 points.

Ventilation system and control air valves, etc.

The measurement range of radiation heat on the back fire surface of the specimen is 0~10W/cm2.

Furnace pressure measurement range: 0-100pa

Measurement accuracy:≤±3pa.

Test temperature: The furnace temperature control meets the requirement of T-T0=3451g (8t+1), and its temperature control deviation

When 0min<t≤10min, d≤15%.

When 10min<t≤30min,d≤10%.

When T>30min, d≤5%.

Furnace temperature:±15℃.

Internal temperature of the specimen:±10℃.

Test piece back fire temperature:±4℃.
