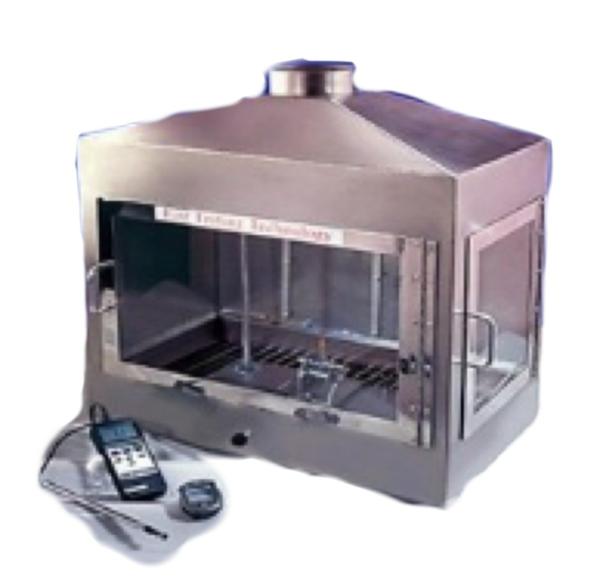

CF8369 Flammability Testing Machine for Fireproof Building Materials

Standards: GB/T8626 "Test Methods for Flammability of Building Materials" and ISO 11925-2:2002 "Reaction to fire tests -- Ignitability of building products subjected to direct impingement of flame -- Part 2: Single-flame source test"

Scope of application: It is applicable to the test method for judging whether the building material has flammability under the specified conditions.

Main parameters:

The whole set of configuration: the testing machine is composed of a control box, a combustion chamber body, a burner, a solenoid valve, a high-pressure igniter, a signal control line and a sample support;

Power supply voltage: AC220V±10%, 50Hz;

Gas pressure: 10kpa~50kpa;

Flue air velocity: under the condition of only igniting the burner and opening the exhaust hood, the flue flow velocity of the box is 0.7m/s, measured by anemometer, and the accuracy is ±0.1m/s;

Main parameters:

The whole set of configuration: the testing machine is composed of a control box, a combustion box body, a burner, a solenoid valve, a high-pressure igniter, a signal control line and a sample support;

Power supply voltage: AC220V±10%, 50Hz;

Gas pressure: 10kpa~50kpa;

Flue air velocity: under the condition of only igniting the burner and opening the exhaust hood, the flue flow velocity of the box is 0.7m/s, measured by anemometer, and the accuracy is ±0.1m/s;

Flame release time: 0~99 minutes and 99 seconds can be set;

Ignition time: 0~99 minutes and 99 seconds can be set;

Timer accuracy: ≤1s/h;

The size of the burner is: the burner is composed of a nozzle with a hole diameter of ¢0.17mm and a regulating valve, and is provided with four air suction holes of ¢4mm;

Burning box inner dimensions: width 700 x depth 400 x height 810mm;

Burning box material: mirror stainless steel, the bottom is a natural vent, the vent is composed of a square box;

Open area: 25x25mm, height: 50mm;

Burner: 45° angle, flame height: 20mm;

Gas: commercial propane, (provided by the customer);

Gas purity: > more than 95%;

Specimen clamp: two U-shaped stainless steel frames, 15mm wide and 5.0mm thick;

Timer: 0~99.99S/M/H settable;

Width 700× depth 400× height 810mm 50kg
