Specifications
Brand Name :
CN Sports
Model Number :
CN-02
Certification :
IAAF
Place of Origin :
China
MOQ :
/
Price :
US $10-35/ Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
100000 Tons/ Year
Delivery Time :
in 7 working days
Packaging Details :
Pack in barrel /pallet
Game: :
Running track, Runway, Jogging Track, Athletic Track
Thickness: :
13mm international standard thickness, or thickness can customize
Environmental Protection Level :
E1
Flame retardant level: :
I
Function: :
Safety Protetion, Anti-Static, Thermal Insulation
Characteristics: :
weather resistance, color lasting, durable
Application: :
school, university, gym, stadium sports fields, etc
Foundation: :
Concrete, or asphalt
Color: :
Red, blue, or customize
Life time: :
8~10years
Description

Plastic Rubber Athletic Race Track Sports Field Runway Surfacing Synthetic Running Track

Company Brief Introduction

We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million
square meters per year.We have the certificates of IAAF,ITF,ROHS and so on,which make sure our materials are environmentally safe.
We take "beautify the environment, protect the earth "as our mission,constantly R & D the new, high adaptability, cost-effective and environmentally friendly materials.

CN Sports Never stop upgrading through innovation Not all ideas can become innovative.Innovation and upgrading PU is no longer limited to improve and enhance the quality, but to do more professional, more suitable for sports elastic sports surface. PU Runway series, based on a more environmental , more professional, more stable, more convenient and effective market demand for tailored, breaking the contradiction between the athletic and sports protection in the new national standard for plastic runway.

Product Description

PU Synthetic running track also called plastic runway, it is known as the all-weather high performance synthetic rubber running track, it is made up of polyurethane rubber, black recycled SBR rubber, EPDM rubber granules, pigments, additives, fillers, etc. PU running track has the characteristics of good shock absorption, high compressive strength, appropriate hardness, excellent elasticity, and stable physical performance, which can effectively improving sports performance and reducing the injury rate. PU synthetic running track is internationally recognized all-weather outdoor anti-UV stadium runway and sports venues flooring materials. It is widely used for school and university running track and sports field, Gym and stadium runway, professional and Non professional athletic training runway, sports park and playgrounds.

Characteristics:

a. The purpose of building sports courts is to ensure a professional,safe,healthy sports condition.

b. the characteristics of hardness and rebounce will bring the professional sporting feeling.

c. the cushion effectively increasing the shock absorption and reduce the incidence of injuries to ankles, joints and ligaments.

d. At the same time,it should reduce abrasion caused by falling and accident.

Physical properties data

Serial
numbe
Test project Standard
requirements
CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Shock absorption rate,% 30-50 38.9 39.2 39.3 40.1 Qualified
2 Vertical deformation,mm 0.6-2.5 1.74 2.02 2.40 2.4 Qualified
3 Anti-slide value,BPN20℃≥ 47 57 57 56 57 Qualified
4 Tensile strength,Mpa ≥ 0.5/0.4 permeable type 0.8 0.4 0.62 0.51 Qualified
5 Tensile elongation,% ≥ 40 76.7 46 54.3 52.8 Qualified
6 Flame retardant level I I I I I Qualified
7 Thickness,mm 13 13.1 13.0 13.1 13.0 Qualified

Serial
number
Test project Standard
requirements
CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Benzene,g/kg ≤ 0.05 nought nought nought nought Qualified
2 BTX,g/kg ≤ 0.05 nought nought nought nought Qualified
3 Toluene diisocyanate,% ≤ 0.2 nought nought nought nought Qualified
4 Soluble heavy metal,mg/kg Pb ≤ 90 nought nought nought nought Qualified
5 Soluble heavy metal,mg/kg Cd ≤ 10 2.4 2.0 1.9 2.8 Qualified
6 Soluble heavy metal,mg/kg Cr ≤ 10 3.2 3.1 3.4 3.4 Qualified
7 Soluble heavy metal,mg/kg Hg ≤ 2 nought nought nought nought Qualified

Application:
Synthetic Athletic rubber running track use for school, university, gym and stadium sports fields, for professional competitions and sports training fields.

OUR TRAINNING AND SERVICES:

  • Provide construction guidance process text information
  • Provide construction process video
  • Can send person to our factory for training and studying
  • We can also arrange the engineer to the site for training and guidance
  • 24hours of telephone consultation service
  • Regular understanding the situation of the site usage

FAQ:
1. Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year. For all the products we produce by ourselves and with our own logo. Welcome to visit our factories if interested.

2. What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,IAAF, ISO9001 and ISO14001,SGS, ASG,etc and can export our products all over the world.

3.Is your products safe and enviroment friendly?
Yes, our products are safe and quality assured. It is Eco-friendly and harmless.

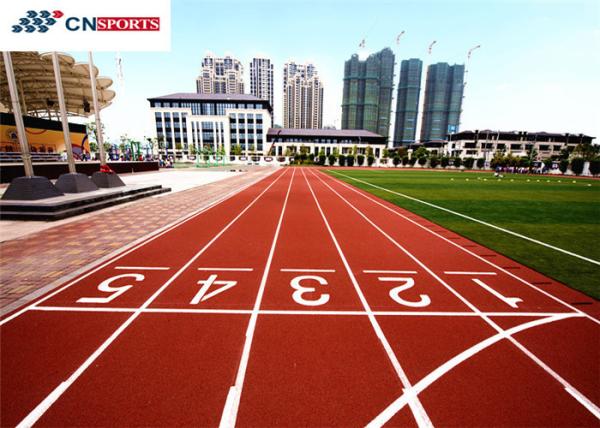

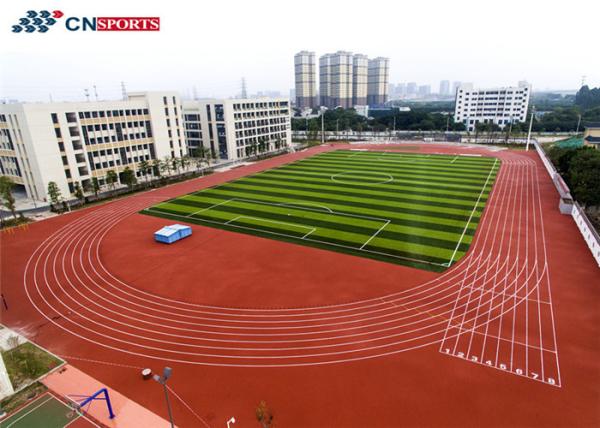

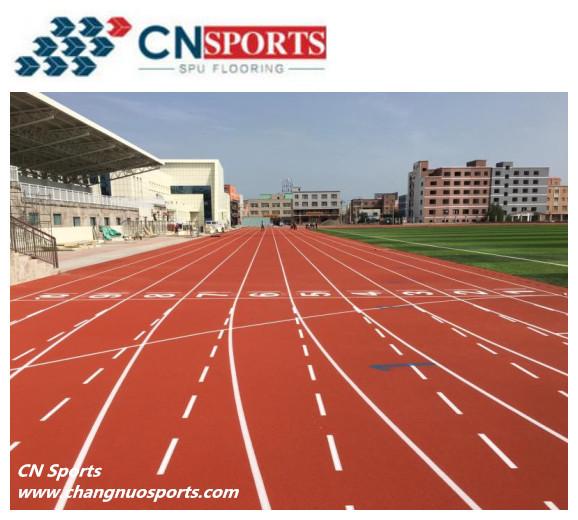

Successful Case:

Plastic 13mm Synthetic Running Track Weather Resistance sandwich system

Plastic 13mm Synthetic Running Track Weather Resistance sandwich system

Plastic 13mm Synthetic Running Track Weather Resistance sandwich system
