Specifications
Brand Name :
CN Sports
Model Number :
CN-02
Certification :
IAAF
Place of Origin :
China
MOQ :
/
Price :
US $10-35/ Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
100000 Tons/ Year
Delivery Time :
in 7 working days
Packaging Details :
Pack in barrel /pallet
Game: :
Athletic Running
Function: :
Safety Protetion, Anti-Static, Thermal Insulation
Color: :
Red, blue, etc.
Thickness: :
13mm Standard, or as per request
Environmental Protection Level :
E1
Flame retardant level: :
I
Product Name: :
Sports Runway, Athletic Track, Synthetic Running Track, Tartan Track
Application: :
school, university, gym, stadium sports playground
Characteristics: :
weather resistance, not fading, color lasting, durability
Suitable: :
Indoor & Outdoor
Description

Safety Protection IAAF Approved Rubber Synthetic Running Track

Product Description


PU Synthetic running track also called plastic runway, it is known as the all-weather high performance synthetic rubber running track, it is made up of polyurethane rubber, black recycled SBR rubber, EPDM rubber granules, pigments, additives, fillers, etc. PU running track has the characteristics of good shock absorption, high compressive strength, appropriate hardness, excellent elasticity, and stable physical performance, which can effectively improving sports performance and reducing the injury rate. PU synthetic running track is internationally recognized all-weather outdoor anti-UV stadium runway and sports venues flooring materials. It is widely used for school and university running track and sports field, Gym and stadium runway, professional and Non professional athletic training runway, sports park and playgrounds.

CN Sports Never stop upgrading through innovation Not all ideas can become innovative.Innovation and upgrading PU is no longer limited to improve and enhance the quality, but to do more professional, more suitable for sports elastic sports surface. PU Runway series, based on a more environmental , more professional, more stable, more convenient and effective market demand for tailored, breaking the contradiction between the athletic and sports protection in the new national standard for plastic runway.

Technical Data:

Serial
numbe
Test project Standard
requirements
CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Shock absorption rate,% 30-50 38.9 39.2 39.3 40.1 Qualified
2 Vertical deformation,mm 0.6-2.5 1.74 2.02 2.40 2.4 Qualified
3 Anti-slide value,BPN20℃≥ 47 57 57 56 57 Qualified
4 Tensile strength,Mpa ≥ 0.5/0.4 permeable type 0.8 0.4 0.62 0.51 Qualified
5 Tensile elongation,% ≥ 40 76.7 46 54.3 52.8 Qualified
6 Flame retardant level I I I I I Qualified
7 Thickness,mm 13 13.1 13.0 13.1 13.0 Qualified

Serial
number
Test project Standard
requirements
CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Benzene,g/kg ≤ 0.05 nought nought nought nought Qualified
2 BTX,g/kg ≤ 0.05 nought nought nought nought Qualified
3 Toluene diisocyanate,% ≤ 0.2 nought nought nought nought Qualified
4 Soluble heavy metal,mg/kg Pb ≤ 90 nought nought nought nought Qualified
5 Soluble heavy metal,mg/kg Cd ≤ 10 2.4 2.0 1.9 2.8 Qualified
6 Soluble heavy metal,mg/kg Cr ≤ 10 3.2 3.1 3.4 3.4 Qualified
7 Soluble heavy metal,mg/kg Hg ≤ 2 nought nought nought nought Qualified

Application:
Synthetic Athletic rubber running track use for school, university, gym and stadium sports fields, for professional competitions and sports training fields.

Advantages:

1. Environmental protection,non-toxic and pollution-free,certain friction coefficient;

2. High rebound value of elastic layer,protect athletes joint,reduce risk of ligament injury and improve the running speed of the athlete;

3. Excellent weather resistance,do not fade,powder,not become hard or soft because of UV,ozone,rainwater or weather change etc.

4. Excellent wear resistance,guarantee the stability of the appearance and the structure;

5. Nice weather resistance,can meet the needs of high-frequency use for long time.

7. Widely used for sports and playground field, such as school, univerysity, gym,stadium, sports center, etc.

6. Long life time, can use for 8~10years.

Characteristics:

a. The purpose of building sports courts is to ensure a professional,safe,healthy sports condition.

b. The characteristics of hardness and rebounce will bring the professional sporting feeling.

c. The cushion effectively increasing the shock absorption and reduce the incidence of injuries to ankles, joints and ligaments.

d. At the same time,it should reduce abrasion caused by falling and accident.

Factory panorama:
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million
square meters per year.We have the certificates of IAAF,ITF,ROHS and so on,which make sure our materials are environmentally safe.

Our Mission:
We take "beautify the environment, protect the earth "as our mission, and belief of "integrating global resources, sharing human civilization ".

OUR TRAINNING AND SERVICES:

  • Provide construction guidance process text information
  • Provide construction process video
  • Can send person to our factory for training and studying
  • We can also arrange the engineer to the site for training and guidance
  • 24hours of telephone consultation service
  • Regular understanding the situation of the site usage

FAQ:

1. Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year. For all the products we produce by ourselves and with our own logo. Welcome to visit our factories if interested.

2. Why we have to buy products from you?

we are factory of more than 10years experiences in producing running track materials, products are of high quality and competitive price. And we have professional sales team for export market and also excellent technical team, can provide best service and support to your project, help you to promote your business with good job.

3. Can we get installation support?
We can provide installation documents such as installation process and technical files. If client need, we can also send installation engineers to client’s side for installation guidance and teach your team per request.

4. How much do you charge for sample?
Samples for free, clients only need to bear shipping freight.

5. Why we have to buy products from you?

we are factory of more than 10years experiences in producing running track materials, products are of high quality and competitive price. And we have professional sales team for export market and also excellent technical team, can provide best service and support to your project, help you to promote your business with good job.

Successful Case:

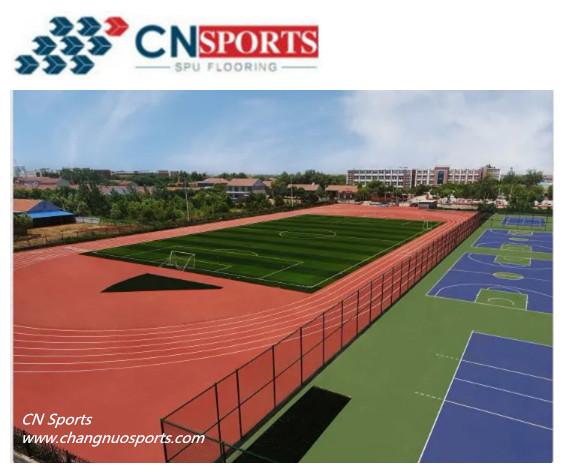

IAAF Synthetic Running Track

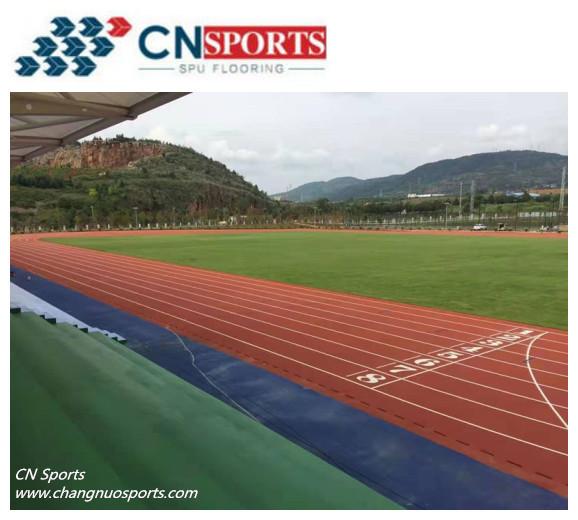

IAAF Synthetic Running Track

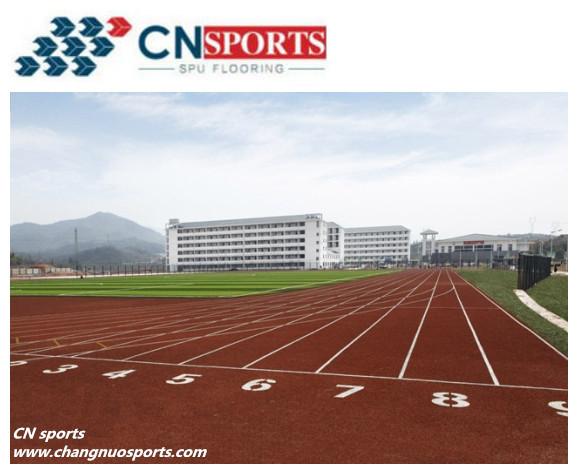

IAAF Synthetic Running Track
