13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
Specifications
Brand Name :
CN Sports
Model Number :
CN-S05
Certification :
IAAF
Place of Origin :
China
MOQ :
/
Price :
US $10-30 Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
200000 M2/ Year
Delivery Time :
in 7 working days
Packaging Details :
Pack in Pallet/Bundles
Thickness: :
13mm, or customize
Certificates: :
IAAF, CE, ROHS, etc
Colour: :
Red,Green,Blue
Material: :
PU, SBR, EPDM granules
Life Span :
Over 10 years
Product Name: :
Running Track, Athletic Rubber Running Track
Application: :
playground,sports center,school,stadium
Transport Package: :
Barrels and Pallets
Description

13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track

Excellent performance

It's a design based on human kinetics and physical characteristics flooring system, with hard top layer combined with soft rebound cushion lower layer structure. It's suitable to lay on concrete or asphalt substrates. The cushion layer is formed by single component modified polyurethane and top up with two-component modified acrylic resilience layer

Physical properties data

No. Test project Standard
requirements		 CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Shock absorption rate,% 30-50 38.9 39.2 39.3 40.1 Qualified
2 Vertical deformation,mm 0.6-2.5 1.74 2.02 2.40 2.4 Qualified
3 Anti-slide value,BPN20℃≥ 47 57 57 56 57 Qualified
4 Tensile strength,Mpa ≥ 0.5/0.4 permeable type 0.8 0.4 0.62 0.51 Qualified
5 Tensile elongation,% ≥ 40 76.7 46 54.3 52.8 Qualified
6 Flame retardant level I I I I I Qualified
7 Thickness,mm 13 13.1 13.0 13.1 13.0 Qualified

No. Test project Standard
requirements		 CN-S05F CN-S05T CN-S05H CN-S05Z Judge
1 Benzene,g/kg ≤ 0.05 nought nought nought nought Qualified
2 BTX,g/kg ≤ 0.05 nought nought nought nought Qualified
3 Toluene diisocyanate,% ≤ 0.2 nought nought nought nought Qualified
4 Soluble heavy metal,mg/kg Pb ≤ 90 nought nought nought nought Qualified
5 Soluble heavy metal,mg/kg Cd ≤ 10 2.4 2.0 1.9 2.8 Qualified
6 Soluble heavy metal,mg/kg Cr ≤ 10 3.2 3.1 3.4 3.4 Qualified
7 Soluble heavy metal,mg/kg Hg ≤ 2 nought nought nought nought Qualified

Different system for charateristics:

Spray coating:Price competitive , permeable and surface paint by machine, more suitable for school or practice project
Sandwich sytem: EPDM broad be handwork,is professional than spray coat,most pouplar in the world market.
Full pour System: Best quality, bottom layer is PU with less sbr granules mix. Suitable for professional games and international school.

FAQ
1. Are you manufacturer or trader?
We have two major production bases,one in Nanjing and the other in JiangMen,and the laying area of our materials is more than ten million square meters per year. For all the products we produce by ourselves and with our own logo.

2. What kind of certificate you have?
We have certificate of RoHS,ISSS,CE,ITF2,ITF5,IAAF, ISO9001 and ISO14001,SGS, ASG,etc and can export our products all over the world.

3. What is the installation method?
1) We can offer you installation instructions, you can fix by yourself.
2) You can come to visit our factory to and learn from our technician.

3. What are the options for the base construction of a running track?
Based on asphalt or concrete.

4. What is the life Span for Running track?
10-15years.

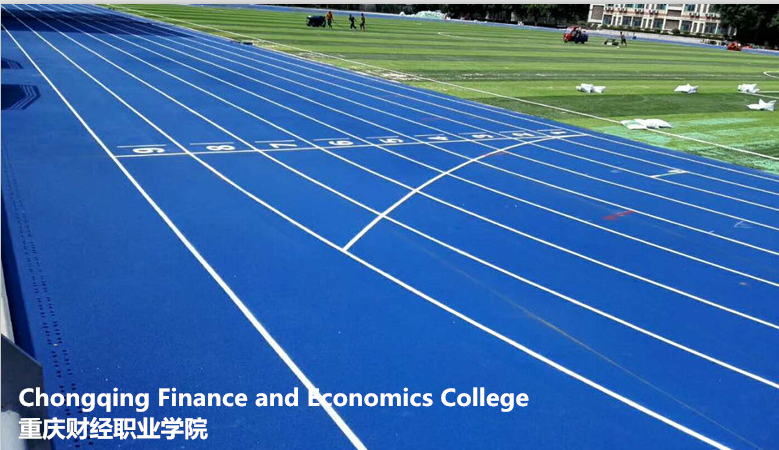

Project cases for reference:

13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track

13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track

13mm Internation Standard IAAF Approved Anti UV Sports Field Surfacing Materials for Athletic Running Track
