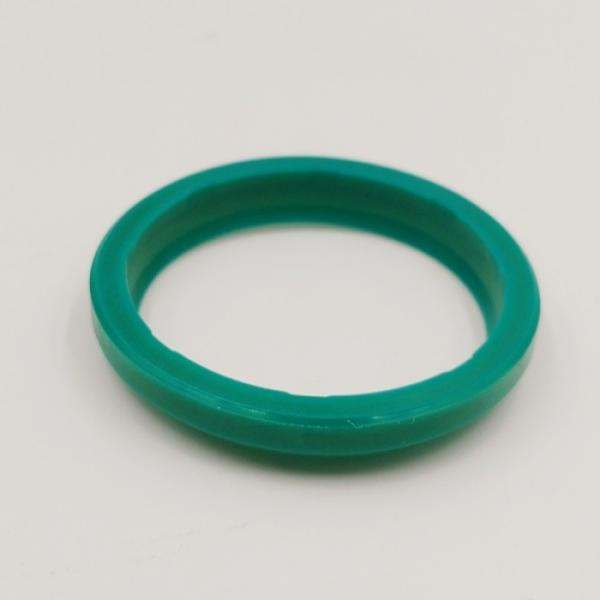

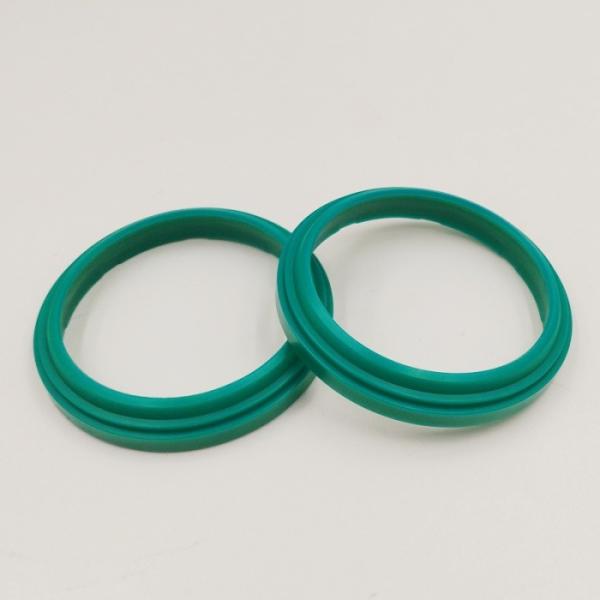

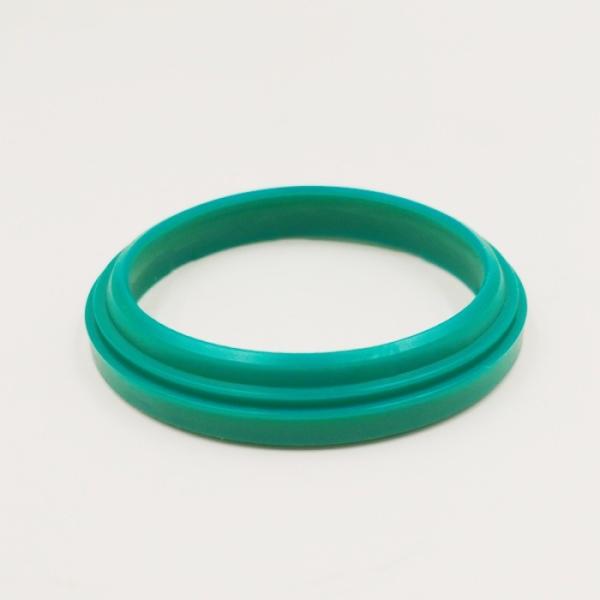

A1 GHP Rod Seal/Wiper Hydraulic oil cylinder dust -proof seal ring，A1 28 36 4/7,Two steps sealing A1 2035 P5008
A1 GHP Rod Seal/Wiper Hydraulic oil cylinder dust -proof seal ring，A1 28 36 4/7,Two steps sealing A1 2035 P5008
A1 GHP Rod Seal/Wiper Hydraulic oil cylinder dust -proof seal ring，A1 28 36 4/7,Two steps sealing A1 2035 P5008
A1 GHP Rod Seal/Wiper Hydraulic oil cylinder dust -proof seal ring，A1 28 36 4/7,Two steps sealing A1 2035 P5008
A1 GHP Rod Seal/Wiper Hydraulic oil cylinder dust -proof seal ring，A1 28 36 4/7,Two steps sealing A1 2035 P5008
A1 GHP Rod Seal/Wiper Hydraulic oil cylinder dust -proof seal ring，A1 28 36 4/7,Two steps sealing A1 2035 P5008
Specifications
Brand Name :
DZK
Model Number :
A1-28*36*4/7
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
USD 0.30/PCS
Payment Terms :
L/C, T/T
Supply Ability :
1000000PCS/MONTH
Delivery Time :
7-10 days
Packaging Details :
100pcs/bag
Material :
PU
Standard or nonstandard :
Parker standard
Color :
Green
Style :
A1
Size :
28*36*4/7
Hardness :
93 shore A
Temperature :
-30~80℃
Quality :
FDA,High quality
Application :
Rod wiper seal
Description

1.Product Description:

GHP/A1 wiper is a sealing element which usd in hydraulic applications to obstruct all kinds of negative foreignparticles to go into the cylinders.
Standardized with the materials of high performance PU 93 shore A.

A1 GHP Rod Seal/Wiper Hydraulic oil cylinder dust -proof seal ring，A1 28 36 4/7,Two steps sealing A1 2035 P5008

2.Product Application:

Operating pressure
≤ 140 bar
Operating temperature
-35 °C to +100 °C
Sliding speed
 ≤2M/S
Media
Compressed air, both lubricated and oil
free (after greasing for fitting)

3.Commonly Used Material:

Material: Temperature:
NBR -40 to 100 ℃
FKM -20 to 200 ℃
FFKM -20 to 320 ℃
HNBR -40 to 150 ℃
AFLAS -30 to 175 ℃
VMQ/SILICON -70 to 220 ℃
FVMQ -60 to 175 ℃
EPDM -50 to 150 ℃
CR -40 to 120 ℃
SBR -40 to 110 ℃
PU -40 to 90 ℃
PTFE -100 to 280 ℃
IIR -20 to 120 ℃
ACR -25 to 150 ℃

4.Adantage:

a.High abrasion resistance.
b.Widely applicable.
c.Easy installation.

5.Product Specification:

A1 GHP Rod Seal/Wiper Hydraulic oil cylinder dust -proof seal ring，A1 28 36 4/7,Two steps sealing A1 2035 P5008A1 GHP Rod Seal/Wiper Hydraulic oil cylinder dust -proof seal ring，A1 28 36 4/7,Two steps sealing A1 2035 P5008

A1 GHP Rod Seal/Wiper Hydraulic oil cylinder dust -proof seal ring，A1 28 36 4/7,Two steps sealing A1 2035 P5008
6.Installation:

The self-retaining rod seal/wiper profile A1 is manually or automatically snapped into
the installation housing while the piston rod is disassembled. Care is to be taken to
prevent sharp edges from damaging the wiping and sealing lips during assembly.
Initial lubrication is the prerequisite for very long operational life.

7.FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
