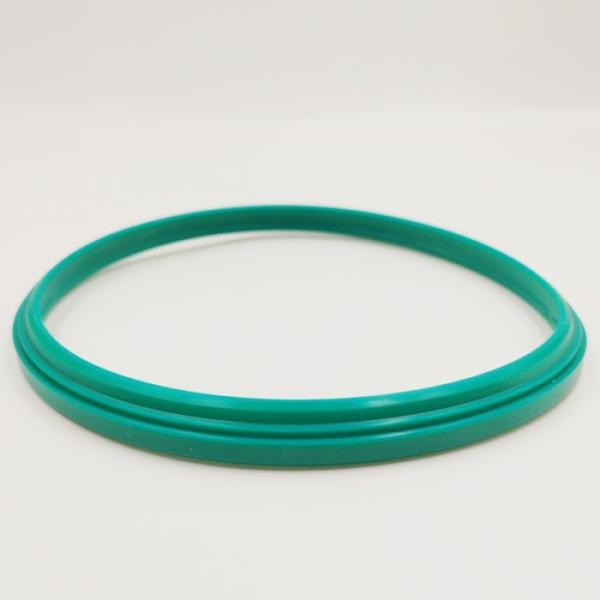

Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1
Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1
Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1
Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1
Specifications
Brand Name :
DZK
Model Number :
A1-100*108*4/7
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
USD 1.0/PCS
Payment Terms :
L/C, T/T
Supply Ability :
1000000PCS/MONTH
Delivery Time :
7-10 days
Packaging Details :
100pcs/bag
Material :
PU
Standard or nonstandard :
Parker standard
Color :
Green
Style :
A1
Size :
100*108*4/7
Hardness :
93 shore A
Temperature :
-30~80℃
Quality :
FDA,High quality
Application :
Rod wiper seal
Description

A1 100 108 4/7 Two Steps Sealing A1 010 P5008,Hydraulic Cylinder Dust Sealing A1,100mm Rod Seal

1. Product Description:

GHP/A1 wiper is a sealing element which usd in hydraulic applications to obstruct all kinds of negative foreignparticles to go into the cylinders.
Standardized with the materials of high performance PU 93 shore A.

Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1

Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1

2. Product Application:

Operating pressure
≤ 140 bar
Operating temperature
-35 °C to +100 °C
Sliding speed
 ≤2M/S
Media
Compressed air, both lubricated and oil
free (after greasing for fitting)

Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1

3. Commonly Used Material:

Material: Temperature:
NBR -40 to 100 ℃
FKM -20 to 200 ℃
FFKM -20 to 320 ℃
HNBR -40 to 150 ℃
AFLAS -30 to 175 ℃
VMQ/SILICON -70 to 220 ℃
FVMQ -60 to 175 ℃
EPDM -50 to 150 ℃
CR -40 to 120 ℃
SBR -40 to 110 ℃
PU -40 to 90 ℃
PTFE -100 to 280 ℃
IIR -20 to 120 ℃
ACR -25 to 150 ℃

4. Adantage:

a. High abrasion resistance.
b. Widely applicable.
c. Easy installation.

5. Product Specification:

Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1

Hydraulic Cylinder Dust Seal Ring Two Steps Sealing 93 Shore A 100mm Rod Seal A1
6. Installation:

The self-retaining rod seal/wiper profile A1 is manually or automatically snapped into
the installation housing while the piston rod is disassembled. Care is to be taken to
prevent sharp edges from damaging the wiping and sealing lips during assembly.
Initial lubrication is the prerequisite for very long operational life.

7. FAQ:
1. How to choose materials?
The selection of materials needs to be used according to the environment, including the medium, temperature, pressure, etc.
2. How to deliver the goods?
for small order, we can deliver by express, such as DHL, FEDEX, UPS,TNT.etc.
for large order , we can deliver by air or by ship .
3. Are you a manufacturer ?
Yes.We are specializing in the production of various hydraulic and pneumatic sealing products. Its quality system certification has passed ISO 9001:2015, and the materials used comply with REACH and RoHS regulations. Accept customization and OEM production.
4. Do you provide samples ? is it free?
Yes, we will offer the sample for free charge but you need to pay the cost of freight.
5. How is the quality?
All manufacturing processes confirm to the ISO-9001:2015 system, 100% inspection before shipment.
