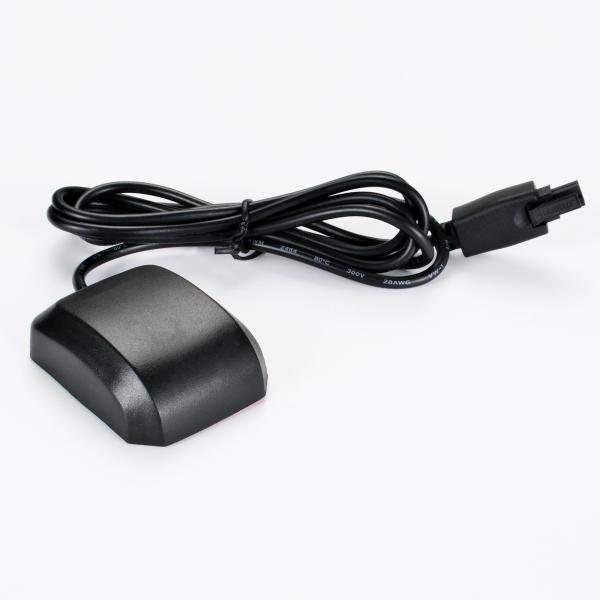

M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
Specifications
Place of Origin :
Guangdong, China
Brand Name :
OTW
Model Number :
WT-2828-UN-TTL-M-2M
MOQ :
1
Price :
$6.10-6.50
Model :
ADMIRAL Closed Off-Road Vehicle
Year :
2000-2003
Type :
GPS Navigator
Car Fitment :
Zhongxing (Zte)
Placement :
Portable
Function :
android auto, DVD/VCD, Other, Live Traffic, Dual Mode Navigation system
Combination :
Other
Connection :
Built-in WiFi
Warranty :
3 years
Use :
Automotive
Map Type :
No
Size :
38mm*49mm*16mm (+/- 0.5mm), 38mm*49mm*16mm
Operating mode :
GPS+GLONASS+GALILEO+ BDS
Output Mode :
TTL
Baud rate :
4800bps-921600bps,Default9600bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-18Hz(default 1Hz)
Voltage :
3.0V to 5.0V
Power consumption :
35 mA @3.3V
Wire length :
2M
Connector type :
Molex connector
Description
Gps Receiver M8030 Automotive Positioning Mouse Molex Connector Wire Length 2M UART TTL
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
Module performance
Model
WT-2828-UN-TTL-M-2M
Chip
UBLOX-M8030
Receiver type
GPS/QZSS L1
GLONASS L1
BeiDou B1
Galileo E1
Agreement
NMEA-0183 compliant protocol or custom protocol
NMEA messages
RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate
4800bps~921600bps(default 9600bps)
Channel
72
Sensitivity
Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start
Average 26 seconds
Hot start
Average 1 seconds
Accuracy
Horizontal accuracy 2.0m CEP,
Velocity: 0.1 m/s
Timepulse signal: RMS 30 ns
Max Height
18000 m
Max Speed
500 m/s
Max Acceleration
≦ 4G
Regeneration frequency
1Hz -18 Hz
Positioning mode
A-GNSS
Communication type
TTL level
Antenna
Built-in ceramic antenna
Connector
Connector type

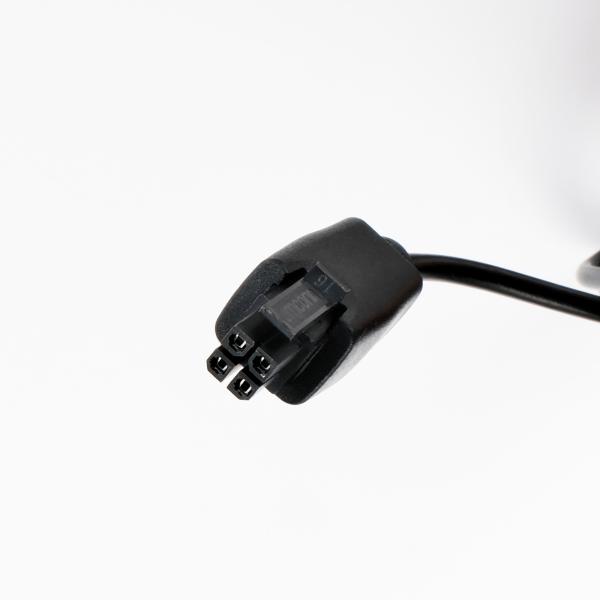

Molex connector
Physical property
Type
4 Pin
Size
38mm*49mm*16mm (+/- 0.5mm)
Wire length
2m (customizable)
Fixed mode

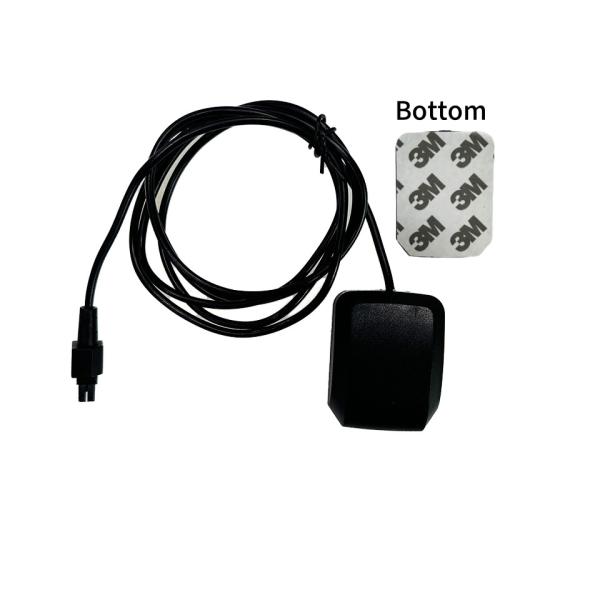

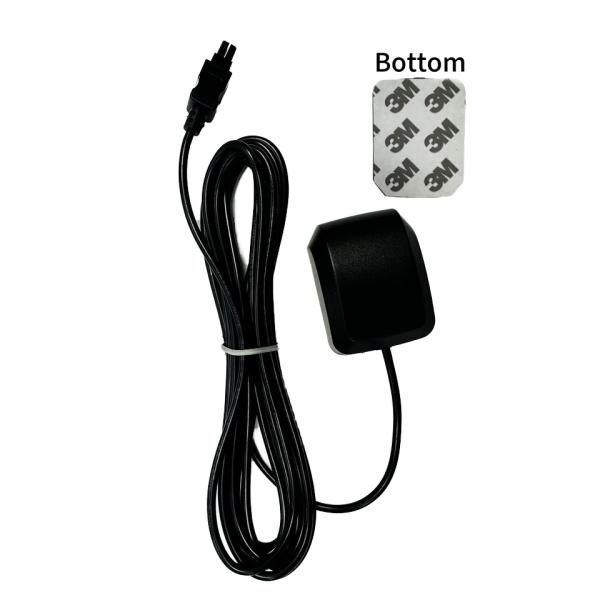

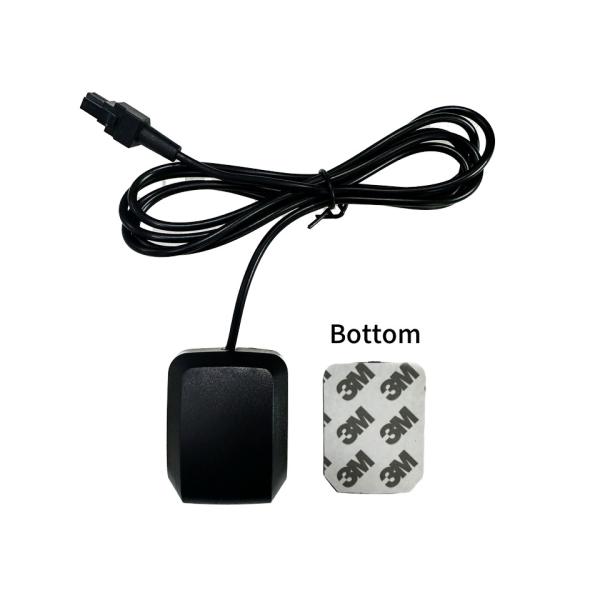

3M adhesive or magnet (default 3M adhesive)
Power supply
Voltage
3V~5V
Power Consume
35mA@3.3V
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
Logistics & Payment
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
M8030 Automotive GPS Receiver with Molex Connector 2M Wire
FAQ
Q1: Are you a manufacturer? Where is your factory? A1: Yes, we are a manufacturer. Our factory is located in Shenzhen, China. Welcome to our factory. Q2: If i place an order how long will it take to delivery it? A2: IT usually takes about only 7-10days on receipt of payment,depends on the quantity ordered and the stock status. Q3: Are the prices on the list final? A3: No, the price is negotiable. It depends on the quantity of your order. Q4: When can I get the price? A4: Usually we quote within 24 hours of receiving an inquiry. If you urgently need to get a price, please call us so that we can let me quote you as soon as possible. Q5: Can I ask for a sample before placing an order? A5: Yes, we are welcome to order samples to test and check the quality. Mixed samples are acceptable. Q6: Can it be customized? A6: Yes. We support custom requirements. Q7: How can you make our business build a long term good relationship? A7: 1. We maintain good quality and competitive price to ensure that our customers benefit; 2. We respect every customer as our friend and sincerely conduct business and make friends with you, wherever you come. If you would like to know more about our company, please contact us immediately.
