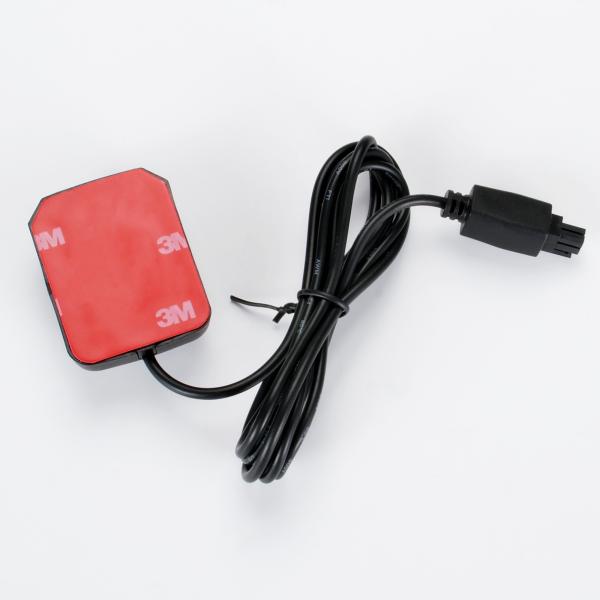

OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
OTW GNSS Receiver with Molex Connector GPS GLONASS GALILEO BDS
Specifications
Place of Origin :
China
Model Number :
WT-2828-AK-TTL-M-1.2M
MOQ :
1
Price :
$4.40-4.80
Type :
GNSS Receiver
Country of Origin :
CHINA
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+GALILEO+ BDS
Output Mode :
TTL
Baud rate :
4800bps-921600bps,Default9600bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-10Hz(default 1Hz)
Voltage :
3.0V to 5.0V
Power consumption :
25 mA @3.3V
Size :
38mm*49mm*16mm
Wire length :
1.2M
Connector type :
Molex connector
Description

WT-2828-AK-TTL-M-1.2M GPS Receiver Antenna for Vehicle Navigation Positioning with Molex Connector UART TTL Modules

Module performance
Model
WT-2828-AK-TTL-M-1.2M
Receiver type
GPS/QZSS L1
GLONASS L1
BeiDou B1
Agreement
NMEA-0183 compliant protocol or custom protocol
NMEA messages
RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate
4800bps~921600bps(default 9600bps)
Channel
56
Sensitivity
Tracking: -162dbm Capture: -148dbm Cold start -148dbm
Cold start
Average 29 seconds
Hot start
Average 1 seconds
Accuracy
Horizontal accuracy 2.5m CEP,
Velocity: 0.1 m/s
Timepulse signal: RMS 30 ns
Max Height
18000 m
Max Speed
500 m/s
Max Acceleration
≦ 4G
Regeneration frequency
1Hz -10 Hz
Positioning mode
A-GNSS
Communication type
TTL level
Antenna
Built-in ceramic antenna
Connector
Connector type
Molex connector
Physical property
Type
4 Pin
Size
38mm*49mm*16mm (+/- 0.5mm)
Wire length
1.2m (customizable)
Fixed mode
3M adhesive or magnet (default 3M adhesive)
Power supply
Voltage
3V~5V
Power Consume
25mA@3.3V
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
