UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
Specifications
Place of Origin :
Guangdong, China
Brand Name :
OTW
Model Number :
WT-2828-UN-R232-M-3M
MOQ :
1
Price :
$6.80-7.20
Model :
KS, Terralord
Year :
1979-1982, 2016-
Type :
GPS Navigator
Car Fitment :
Zuendapp, Zxauto
Placement :
Portable
Function :
android auto, DVD/VCD, Other, Live Traffic, Dual Mode Navigation system
Connection :
Built-in WiFi
Warranty :
3 years
Use :
Automotive
Operating mode :
GPS+GLONASS+GALILEO+ BDS
Output Mode :
R232
Baud rate :
4800bps-921600bps,Default9600bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-18Hz(default 1Hz)
Voltage :
3.0V to 5.0V
Power consumption :
35 mA @3.3V
Size :
38mm*49mm*16mm
Wire length :
3M
Connector type :
Molex connector
OS :
no system
Screen Type :
Rotary Screen
Resolution :
800*480
Description
Molex Connector UBLOX-M8030 R232 GPS Receiver Antenna G Mouse for Vehicle Gps Tracking Gprs Gsm Gps Locator
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
Module performance
Model
WT-2828-UN-R232-M-3M
Chip
UBLOX-M8030
Receiver type
GPS/QZSS L1
GLONASS L1
BeiDou B1
Galileo E1
Agreement
NMEA-0183 compliant protocol or custom protocol
NMEA messages
RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate
4800bps~921600bps(default 9600bps)
Channel
72
Sensitivity
Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start
Average 26 seconds
Hot start
Average 1 seconds
Accuracy
Horizontal accuracy 2.0m CEP,
Velocity: 0.1 m/s
Timepulse signal: RMS 30 ns
Max Height
18000 m
Max Speed
500 m/s
Max Acceleration
≦ 4G
Regeneration frequency
1Hz -18 Hz
Positioning mode
A-GNSS
Communication type
R232 level
Antenna
Built-in ceramic antenna

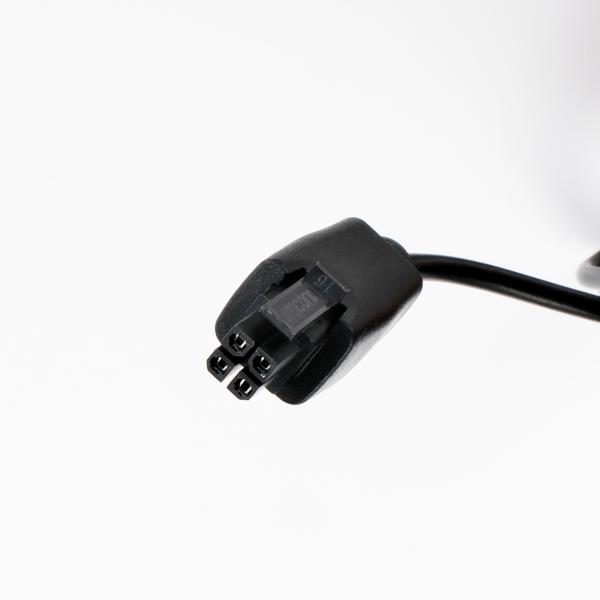

Connector
Connector type
Molex connector
Physical property
Type
4 Pin
Size
38mm*49mm*16mm (+/- 0.5mm)
Wire length
3m (customizable)
Fixed mode
3M adhesive or magnet (default 3M adhesive)
Power supply
Voltage
3V~5V
Power Consume
35mA@3.3V
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
Logistics & Payment
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
UBLOX-M8030 R232 GPS Receiver with Molex Connector for Vehicle Tracking
FAQ
Q1: Are you a manufacturer? Where is your factory? A1: Yes, we are a manufacturer. Our factory is located in Shenzhen, China. Welcome to our factory. Q2: If i place an order how long will it take to delivery it? A2: IT usually takes about only 7-10days on receipt of payment,depends on the quantity ordered and the stock status. Q3: Are the prices on the list final? A3: No, the price is negotiable. It depends on the quantity of your order. Q4: When can I get the price? A4: Usually we quote within 24 hours of receiving an inquiry. If you urgently need to get a price, please call us so that we can let me quote you as soon as possible. Q5: Can I ask for a sample before placing an order? A5: Yes, we are welcome to order samples to test and check the quality. Mixed samples are acceptable. Q6: Can it be customized? A6: Yes. We support custom requirements. Q7: How can you make our business build a long term good relationship? A7: 1. We maintain good quality and competitive price to ensure that our customers benefit; 2. We respect every customer as our friend and sincerely conduct business and make friends with you, wherever you come. If you would like to know more about our company, please contact us immediately.
