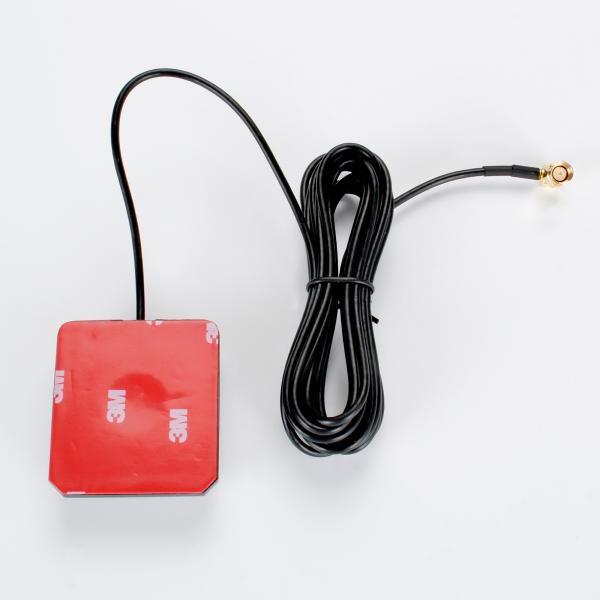

3dBi GPS+BD Active Antenna for Vehicle and Smart Home Security
3dBi GPS+BD Active Antenna for Vehicle and Smart Home Security
Specifications
Brand Name :
OTW
Model Number :
WT-A-30DB-3M-SMA
Place of Origin :
China
MOQ :
20pcs
Price :
US $1.53 - 1.80
Payment Terms :
T/T,Western Union
Supply Ability :
Above US$100 Million
Delivery Time :
7-10working days after receiving the payment
Type :
GPS+BD Active antenna
Brand :
OTW
Frequency range :
1561-1575.42MHZ
Antenna gain :
3dBi
Impedance :
50Ω
Power consumption :
50W
Connector type :
SMAelbow (inner needle) can be customized
Description

It Is The GPS Antenna For Signal Reception In Vehicles And Smart Homes

SMAelbow Connector 3dBi GPS Antenna For Security monitoring

Product descriptions from the supplier

Overview

3dBi GPS+BD Active Antenna for Vehicle and Smart Home Security
Application:
● Vehicle positioning
● Smart home ● Smart wear ● Security monitoring ● Internet home appliance
The above aspects of signal reception.
3dBi GPS+BD Active Antenna for Vehicle and Smart Home Security
Features:
● Line length 3M (customizable) ● SMA elbow (inner needle) can be customized ● Wire RG174 ● The standing wave is smaller ● Signal stability ● Material environmental protection ● Easy installation.
3dBi GPS+BD Active Antenna for Vehicle and Smart Home Security
Product performance
Model WT-A-30DB-3M-SMA
Frequency 1575.42MHZ
Output VSWR

≤1.8
Antenna gain 30dBi
Impedance 50Ω
Connector SMA elbow (inner needle) can be customized
Type GPS+BD external active antenna
Wire length 3M customizable
Wire rod RG174
Size 50mm*56mm*18mm
Voltage 3-5V
Max power 50W
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
