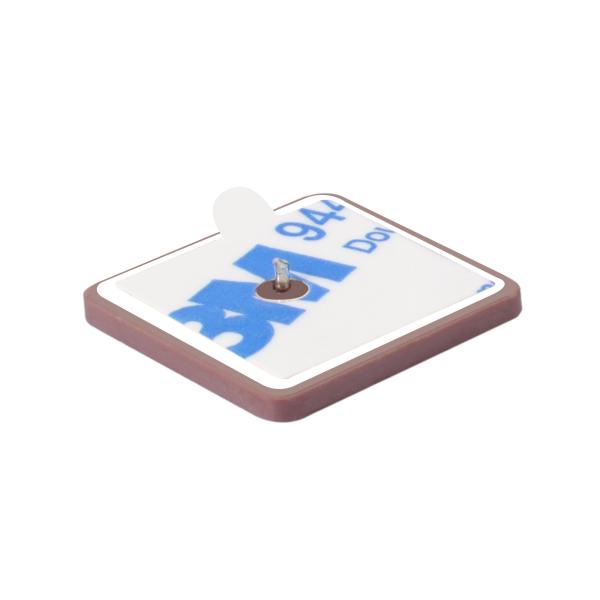

2.4GHz GPS Ceramic Patch Antenna 50W GNSS Passive
2.4GHz GPS Ceramic Patch Antenna 50W GNSS Passive
Specifications
Brand Name :
OTW
Model Number :
WT-A-18*18*2
Place of Origin :
China
MOQ :
20pcs
Price :
0.23 - 0.26usd per piece
Payment Terms :
T/T,Western Union
Supply Ability :
9999
Delivery Time :
7-10working days after receiving the payment
Type :
GPS+BD passive antenna
Country of Origin :
CHINA
Atanding wave ratio :
<1.8
Antenna gain :
3dBi
Impedance :
50Ω
Power consumption :
50W
Connector type :
Direct weldment
Description

Lightweight and durable ceramic antenna for receiving wireless data signals

2.4 Ghz GPS Ceramic Patch Antenna 50W for receiving wireless data signals

Product descriptions from the supplier

Overview

2.4GHz GPS Ceramic Patch Antenna 50W GNSS Passive
Application:
● Electronic digital
● Smoke sensor
● Wireless data transmission
● Smart Home
● GPS Beidou positioning
Signal reception etc.
2.4GHz GPS Ceramic Patch Antenna 50W GNSS Passive
Features:
● Receive high precision GPS signals.
● Anti-interference, high temperature
resistance, wear resistance.
● High quality material.
● Simple and compact, light weight.
● Cheap price.
● Lightweight design.
● Easy installation.
2.4GHz GPS Ceramic Patch Antenna 50W GNSS Passive
2.4GHz GPS Ceramic Patch Antenna 50W GNSS Passive
Product performance
Model WT-A-18*18*2
Frequency 1561-1575.42MHZ
Output VSWR

＜1.8
Antenna gain 3dBi
Impedance 50Ω
Connector Direct weldment
Type GPS+BD passive antenna
Size 18mm*18mm*2mm(+/-0.5mm)
Voltage 3-5V
Max power 50W
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
